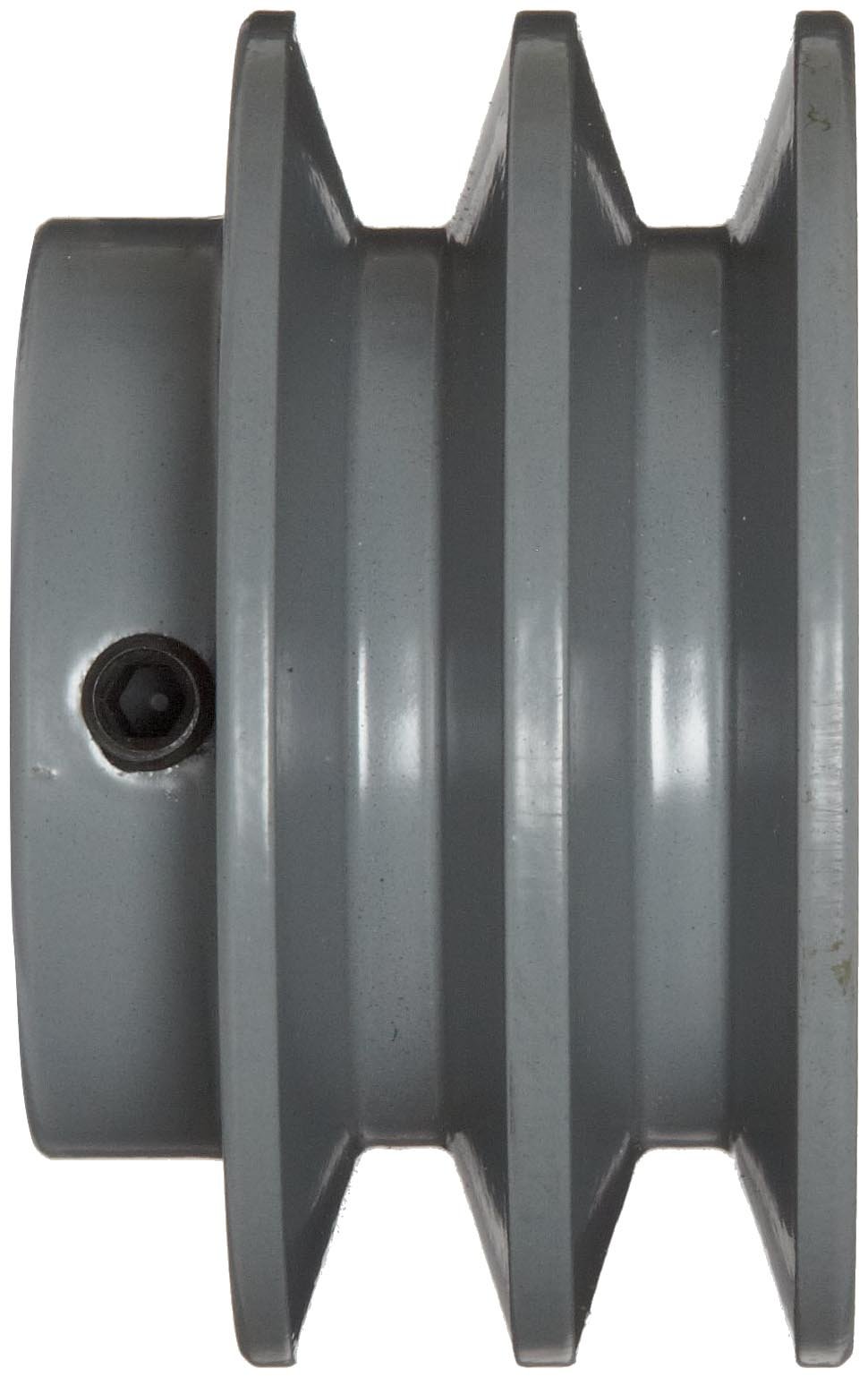

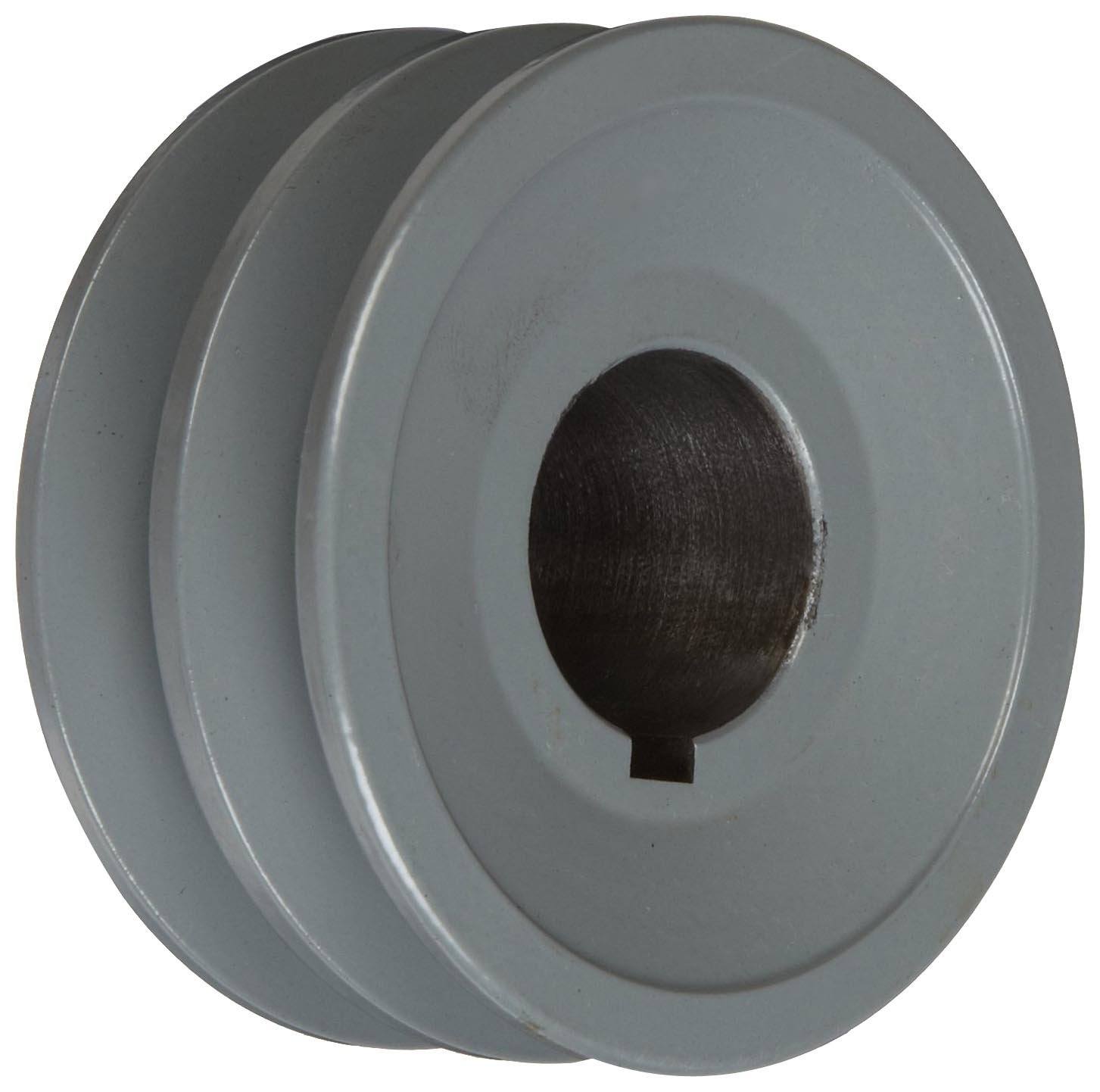

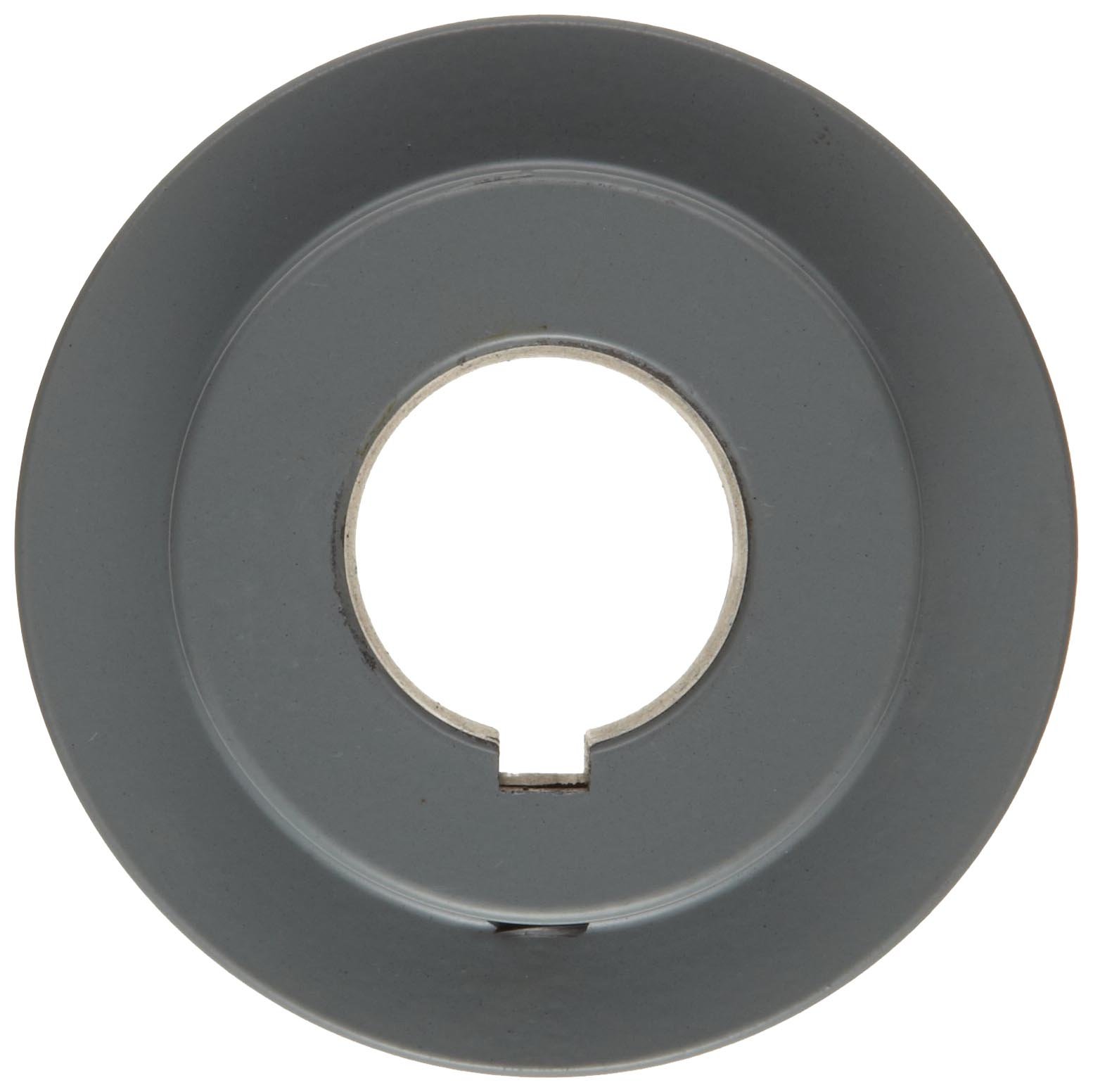

TB Woods 2AK30118 FHP Bored-To-Size, 3.05" Outside Body Diameter, 1.125" Bore Diameter V-Belt Sheave
Be the first to review this item
ASIN B003N17F5G
Specifications for this item
- Body Outside Diameter
- 3.05 inches
- Bore Diameter
- 1.13 inches
- Brand Name
- TB Woods
- EAN
- 0698672140874
- Exterior Finish
- paint
- Face Width
- 1.38 inches
- Hub Diameter
- 1.875 inches
- Hub Projection
- 0.47 inches
- Material Type
- Cast Iron
- Max Rotational Speed
- 8200 RPM
- Number of Items
- 1
- Outside Diameter
- 3.05 inches
- Overall Length
- 1.66 inches
- Part Number
- 2AK30118
- Pitch
- 2.80 inches
- System of Measurement
- Inch
- UPC
- 698672140874
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 1 hour 5 minutes and choose One-Day Shipping at checkout.
Key Features
- Easy-mount, Sure-Grip Quick Detachable (QD) bushings
- Bored to size from 1/2 TO 1-1/2 inches
- Capacities to 15 horsepower
- Efficient, economical and lightweight
Package Details
Shipping Weight:
1.4 pounds
Package Size:
3.4 x 3.2 x 2.1 inches
Product Description
TB Wood’s light-duty sheaves are available in two types, both with one and two grooves. "A" sheaves are made to accommodate A (4L) belts; "B" sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s "QT" Sure-Grip QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
