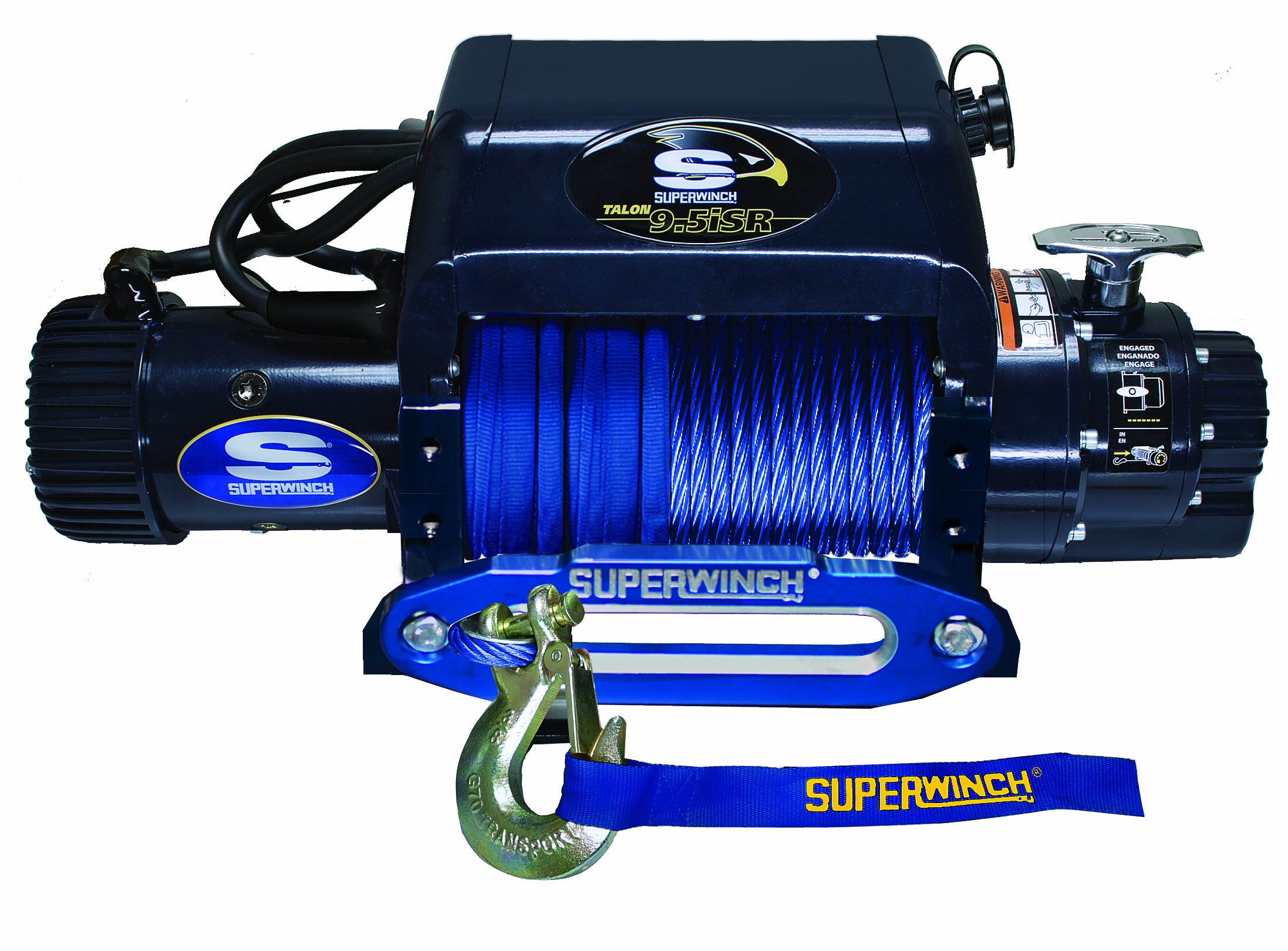

Superwinch 1695211 Talon 9.5iSR, 12 VDC winch, 9,500 lb/4,309 kg capacity with hawse fairlead & synthetic rope

The all-new Talon Performance Series from Superwinch, AKA, The Winch of Prey, is a game changer and has the potential to alter the outcome of the global winch industry.

Rugged, Weather-Resistant Design

All seals on the entire winch meet the IP67 standard, from the outermost end of the high performance motor and groundbreaking solenoid to the 2-stage planetary and 2-stage spur gearbox. The included winch remote also meets the tough IP67 standard, which ensures water, mud, snow, and dust is kept out.

Be ready for the elements with the Talon Series

The sealed 5.2 HP motors deliver a quick but safe 62 FPM line speed at a low 75 amp draw. Heat sink-styled motor cap maintains low temperatures under the heaviest loads. The solenoid will keep out water, mud, snow, and dust and has a patented venting feature that allows the contacts to resist water and release contact-damaging internal condensation. The VS4 Solenoid (Vented, Submersible, and Stabilized with Sealed Socket) is simply the best winch solenoid in the world, and it's located inside this modern-styled rugged enclosure.

Dual Stop Brake Design

The innovative "Dual Stop" 100% load-holding brake design provides zero drag on cable in and is located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.

Included remote is weather-resistant with a built-in LED flashlight

Durable Construction for Safer Pulls

The laser-etched aerodynamically shaped extruded aluminum tie bars reduce weight, and the three tie-bar construction adds strength and structural rigidity between drum supports. The tie-bar bracket includes steel-lined rubber insulated mounts to stabilize the solenoid and reduce vibration and fatigue.

A special steel drum is constructed with high tensile strength material to resist the unique loading characteristic of the optional synthetic 3/8" x 80' rope rated at 17,600 lbs ensures a safe pull. There's an ergonomically shaped hand-held sealed remote with brilliant LED light for assisting in night-time winching. The chrome plated aluminum ergo-free spool knob lifts and turns effortlessly, easily rotating in 45° increments for custom and "in bumper" applications.

Lifetime Warranty

The Superwinch Talon Series is covered by a Limited Lifetime Warranty, which includes an industry-first 3-year warranty on all electrical components.

Technical Specifications

• Rated Line Pull: 9,500 lbs (4,309 kgs)
• Motor: Sealed 5.2 hp (3.8 kw) Series Wound
• Gearing: 2-Stage Planetary and 2-Stage Spur
• Gear Ratio: 148:1
• Solenoid: Vented, Sealed Submersible Solenoid with 3-Year Warranty
• Clutch: Free-spooling Clutch/Pull and Turn
• Brake: Automatic/100% Load Holding (outside of drum)
• Rope: Synthetic Rope 3/8” x 80’ (9.5mm x 24.4m)
• Hook: Heavy Duty/Clevis Pinned/Latched
• Fairlead: Anodized Blue Aluminum Hawse with Engraved Superwinch Logo
• Remote: 15' Sealed Ergonomic Hand-held with Coiled Cord
• Drum Diameter: 2.5” (63.5mm)
• Drum Length: 8.75” (222.2mm)
• Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm)
• Line Pull: 0 lbs: 75 Amps Motor Draw / 62 FPM (18.9 MPM) Line Speed
• Line Pull: 9,500 lbs: 430 Amps Motor Draw / 5.0 FPM (1.5 MPM) Line Speed
• Dimensions: 24.22” L x 6.20” D x 10.66 " H (615.20mm L x 157.50mm D x 270.75mm H)
• Weight: 67 lbs (30 kgs)
