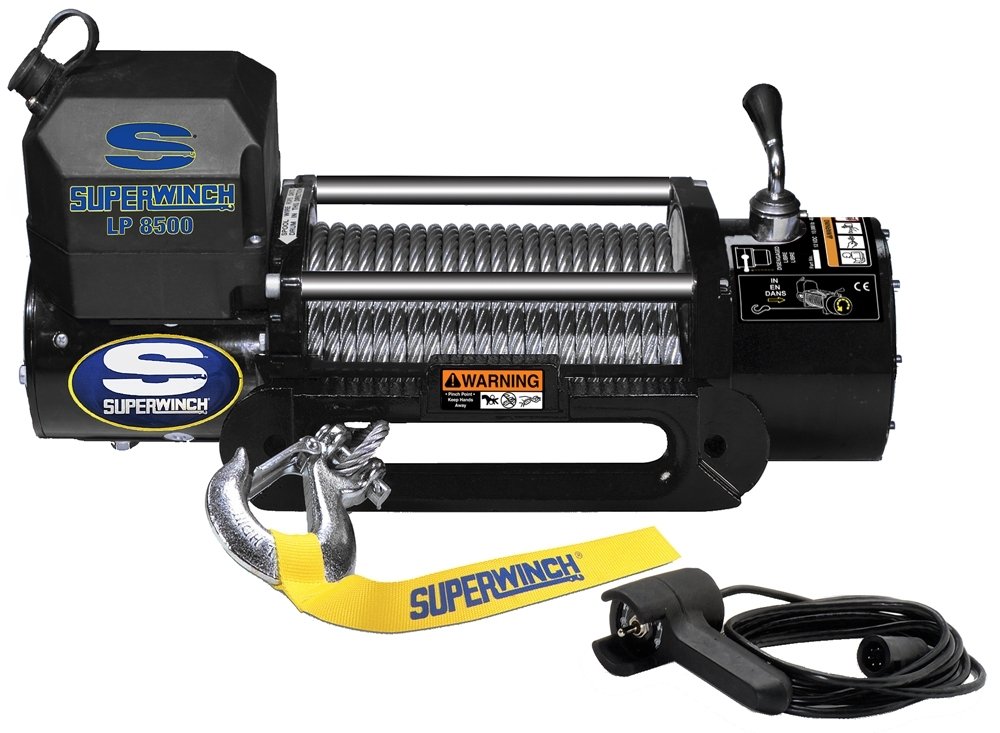

Superwinch 1585202 LP8500 Winch Gen II 12 VDC 8500lbs/3856kg, steel hawse, handheld remote

Be the first to review this item

ASIN B0030E5HS8

Specifications for this item
Part Number
1585202
Item Weight
72.97 pounds
UPC
022705003407
Brand Name
Superwinch
EAN
0022705003407
Warranty
Two year limited warranty on mechanical components and one year on electrical components

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 29? Order in-stock items in the next 22 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 12 VDC/4.5 hp weather-sealed series wound motor with a 8,500-lb pull rating
  • 94' of 5/16" steel wire rope with heavy-duty latched hook and rope thimble and automatic, mechanical load holding braking
  • 15' rubber handheld remote for safe operating distances
  • Weather-sealed solenoid and circuit breaker
  • Powder-coated hawse fairlead and a free spooling lever action clutch

Package Details

Shipping Weight: 87 pounds
Package Size: 23.9 x 12.9 x 12.5 inches

Product Description

The second generation of the LP8500 product line, the 1585202 LP8500 winch is designed to fit most any 4x4 vehicle, as well as trailers, RVs and other similarly sized vehicles. Its ease of use also makes it an excellent utility winch. Along with a hefty 8,500-lb line pull rating via 94-feet of 5/16" steel wire rope and a 4.5 hp sealed series wound motor powered by an easy to establish permanent connection to your vehicle battery, the LP8500 features the power and reliability of a heavy-duty all-metal 3-stage planetary gear train. Additional features include a lever-action freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed, at any time, a hawse fairlead (mounting plate sold separately), a heavy-duty latched hook with thimble and a two-year limited warranty.

Amazon.com

The Superwinch 1585202 LP8500 series winch provides the power, versatility and value that anyone new to winching, but with medium horsepower requirements should consider. Suitable for both 4x4 vehicles and utility use, it features a superior all-metal 3-stage planetary gear train, a beefy 8,500-lb pull rating, a low-draw 4.5 horsepower engine, 94-feet of durable 5/16" steel wire rope, a hawse fairlead and a rubber remote with a 15-foot switch cord, all for a reasonable price.

Superwinch logo
Entry Level 4x4 Winching Power
The Superwinch 1585202 LP8500 series winch is designed to accommodate the needs of entry level 4x4 and utility customers who need power. The second generation of the LP8500 product line, the 1585202 LP8500 winch is designed to fit most any 4x4 vehicle, as well as trailers, RVs and other similarly sized vehicles. Its ease of use also makes it an excellent utility winch. Along with a hefty 8,500-LB line pull rating via 94-feet of 5/16" steel wire rope and a 4.5 hp sealed series wound motor powered by an easy to establish permanent connection to your vehicle battery, the LP8500 features the power and reliability of a heavy-duty all-metal 3-stage planetary gear train. Additional features include, a lever action freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed, at any time, a hawse fairlead (mounting plate sold separately), a heavy-duty latched hook with thimble and a two-year limited warranty.

Superwinch 1585202 LP8500 Series Winch
Entry level 4x4 winching power for light-medium use.
View larger.
Dimensions of the Superwinch 1585202 LP8500 Series Winch
Designed to fit most vehicles.
View larger.
15-foot rubber remote included with the Superwinch 1585202 LP8500 Series Winch
Safe waterproof remote operation.
View larger.
Important Safety Features
As with all Superwinch products, safety is an important consideration of the LP8500 series winch. With this in mind it contains a wealth of valuable safety features standard. These include automatic load holding braking to minimize the possibility of wire rope slippage in the event of power failure or surge, and to provide quick stopping of the drum; a sealed solenoid and circuit breaker protection to ensure safe, reliable, electromagnetic power in all weather conditions; and a rubberized remote switch with a 15-foot extension cable, allowing for safe distances and positioning between the user and winch during off vehicle use.

Standard Features:

  • Powers load in and out
  • 5/16" x 94' (7.9mm x 29m) steel wire rope
  • Automatic, mechanical load holding braking
  • A quiet, efficient, full metal 3-stage planetary gear box
  • Level shift freespooling clutch for fast steel wire rope payout
  • Efficient 4.5 hp series wound motor
  • Sealed solenoid
  • Durable handheld rubber remote switch with 15-foot cable
  • Heavy-duty latched hook with thimble
  • Heavy-duty powder coated hawse fairlead
  • Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
  • 2-year limited warranty
What's in the Box
1-Superwinch 1585202 LP8500 series winch, 1-powder coated hawse fairlead (mounting plate not included), color-coated leads for connection to battery, 1-94' length of 5/16 (29m x 7.9mm) steel rope, 1-heavy-duty latched hook with thimble, 1-rubber handheld remote with 15' cable, 1-4" handsaver strap, mounting hardware, 1-sealed solenoid, 1-circuit breaker component, 1-users manual.

Specifications:
Rated line pull 8,500 lb. (3,856 kg) bottom layer
Motor 4.5 hp (3.3kW) series wound, 12V DC
Gearing 3-stage planetary
Gear ratio 235:1
Braking Auto, mechanical load hold
Freespool clutch Lever action
Wire rope 5/16" x 94' (7.9mm x 29m)
Dimensions 21.0" l. x 6.3" d. x 8.6" h.
(533mm l. x 160mm d. x 218mm h.)
Drum Diameter 2.5" (63.5mm)
Drum Length 8.8" (224mm)
Installed weight 76 lb (34.5 kg)
Switching method 15' (4.5m) rubber handheld remote
Switching mechanism Sealed solenoid
Hawse Yes
Color-coated wiring Yes
Performance 12VDC (Bottom layer on drum):
Line Pull
Motor AMPS
Line Speed
LB
 (kg)
12V
FPM
(m/m)
0
0
84
18.0
(5.5)
2,500
(1,134)
156
9.8
(3.0)
4,500
(2,041)
215
7.5
(2.3)
6,500
(2,948)
270
6.0
(1.8)
8,500
(3,856)
320
3.5
(1.1)

2-Year Limited Warranty
Superwinch, LLC warrants to the original buyer that the mechanical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase of new products for (2) two years and that the electrical components shall be free from defects in materials and workmanship for (1) one year from the provable date of purchase, or otherwise specified time period. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch's discretion without charge to buyer upon buyer's compliance with disclosed procedures.

About Superwinch, LLC
Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application.
