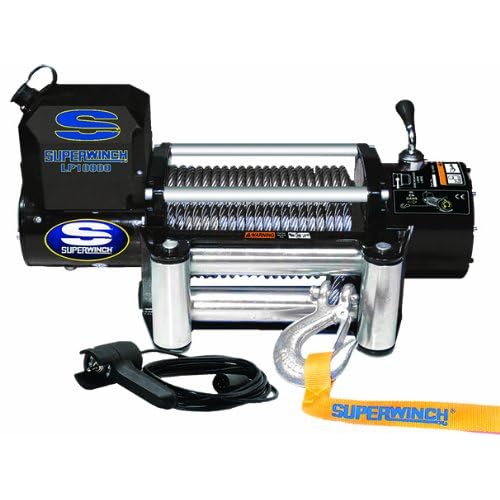

Superwinch 1510200 LP10000 Winch, 10,000lbs/4536kg single line pull with roller fairlead, and 12' handheld remote

Be the first to review this item

ASIN B0030E067U

Specifications for this item
Catalog Number
S491510200
Part Number
1510200
UPC
022705003414
Brand Name
Superwinch
EAN
0022705003414
Warranty
Two year limited warranty on mechanical components and one year on electrical components
List price:
$750.65
Price:
$400.71
You save:
$349.94 (47%)
Quantity:

In Stock (21) Usually ships in 24 hours.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 12 VDC/5.1 hp weather-sealed series wound motor with a 10,000-lb pull rating
  • 85' of 3/8" steel wire rope with heavy-duty latched hook and rope thimble and automatic, mechanical load holding braking
  • 12' rubber handheld remote for safe operating distances
  • Weather-sealed solenoid and circuit breaker
  • Powder-coated 4-way roller fairlead and a free spooling lever action clutch

Package Details

Shipping Weight: 101 pounds
Package Size: 24 x 12.5 x 12.5 inches

Product Description

Amazon.com

The Superwinch LP10000 series winch is the perfect blend of power, versatility and value for users new to winching, but with medium-heavy horsepower needs. Suitable for both 4x4 vehicles and utility use, it features a planetary gear train with a gear ratio of 235:1, an impressive 10,000-LB pull rating, an efficient 5.1 horsepower series wound motor, 85-feet of durable 3/8" steel wire rope, a heavy-duty powder coated roller fairlead and a rubber remote with a 12' switch cord.

Superwinch logo
Entry Level 4x4 Winching Power
The Superwinch LP10000 series winch is designed to accommodate the needs of entry level 4x4 and utility customers who need substantial pulling power. The LP10000 winch is designed to fit most any 4x4 vehicle, as well as trailers, RVs and similarly sized vehicles. Its ease of use also makes it an excellent utility winch. Along with a powerful 10,000-LB line pull rating via 85-feet of 3/8" steel wire rope and a 5.1 hp series wound motor powered by an easy to establish permanent connection to your vehicle battery, the LP10000 features the power and reliability of a planetary gear train. Additional features include, a lever action freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed, at any time, a standard heavy-duty powder coated roller fairlead (mounting plate sold separately), a heavy-duty latched hook with thimble and a two-year limited warranty.

Superwinch 1510200 LP10000 Series Winch
Entry level 4x4 winching power for medium-heavy use.
View larger.
12-foot rubber remote included with the Superwinch 1510200 LP10000 Series Winch
Safe waterproof remote operation.
View larger.
Important Safety Features
As with all Superwinch products, safety is an important consideration of the LP10000 series winch. With this in mind it contains a wealth of valuable safety features standard. These include automatic load holding and mechanical braking to minimize the possibility of wire rope slippage in the event of power failure or surge, and to provide quick stopping of the drum; a sealed solenoid and circuit breaker protection to ensure safe, reliable, electromagnetic power in all weather conditions; and a rubberized remote switch with a 12-foot extension cable, allowing for safe distances and positioning between the user and winch during off vehicle use.

Standard Features:

  • Powers load in and out
  • 3/8" x 85' (9.5mm x 25.9m) steel wire rope
  • Automatic load holding and mechanical braking
  • Planetary gear train (235:1)
  • Level shift freespooling clutch for fast steel wire rope payout
  • A weather resistant 5.1 hp series wound motor
  • Weather resistant solenoid
  • Durable handheld rubber remote switch with 12-foot cable
  • 4-way roller fairlead
  • A heavy-duty latched hook with thimble
  • Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
  • 2-year limited warranty
What's in the Box
1-Superwinch 1510200 LP10000 series winch, 1-powder coated roller fairlead (mounting plate not included), color-coated leads for connection to battery, 1-85' length of 3/8 (25.9m x 9.5mm) steel rope, 1-heavy-duty latched hook with thimble, 1-rubber handheld remote with 12' cable, 1-4" handsaver strap, mounting hardware, 1-sealed solenoid, 1-circuit breaker component, 1-users manual.

Specifications:
Rated line pull 10,000 lb. (4,536 kg) bottom layer
Motor 5.1 hp (3.8kW) series wound, 12V DC
Gearing Planetary gear train
Gear ratio 235:1
Braking Load holding and mechanical
Freespool clutch Lever action
Wire rope 3/8" x 85' (9.5mm x 25.9m)
Installed weight 90 LB (40.8 kg)
Switching method 12' (3.67m) rubber handheld remote
Switching mechanism Sealed solenoid
Roller fairlead Yes
Color-coated wiring Yes
Performance 12VDC (Bottom layer on drum):
Line Pull
Motor AMPS
Line Speed
LB
 (kg)
12V
FPM
(m/m)
0
0
84
18.0
(5.5)
6,000
(2,721)
215
7.6
(2.3)
10,000
(4,536)
320
3.5
(1.1)

2-Year Limited Warranty
Superwinch, LLC warrants to the original buyer that the mechanical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase of new products for (2) two years and that the electrical components shall be free from defects in materials and workmanship for (1) one year from the provable date of purchase, or otherwise specified time period. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch's discretion without charge to buyer upon buyer's compliance with disclosed procedures.

About Superwinch, LLC
Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application.

Product Description

The LP10000 winch is designed to fit most any 4x4 vehicle, as well as trailers, RVs and similarly sized vehicles. Its ease of use also makes it an excellent utility winch. Along with a powerful 10,000-LB line pull rating via 85 feet of 3/8" steel wire rope and a 5.1 hp series wound motor powered by an easy to establish permanent connection to your vehicle battery, the LP10000 features the power and reliability of a planetary gear train. Additional features include, a lever action freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed, at any time, a standard heavy-duty power-coated roller fairlead (mounting plate sold separately), a heavy-duty latched hook with thimble and a two-year limited warranty.
