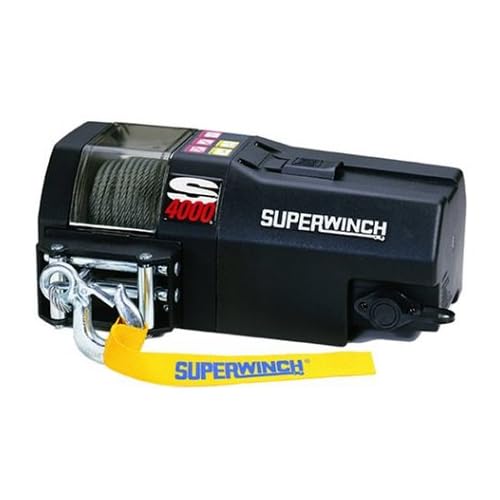

Superwinch 1440200 S4000, 12 VDC winch, 4,000lb/1814 kg single line pull with roller fairlead & 30' remote

Be the first to review this item

ASIN B00023S36I

Specifications for this item
Part Number
1440200
Item Weight
22 pounds
UPC
022705000345
Brand Name
Superwinch
EAN
0022705000345
Warranty
Limited One Year Warranty on Parts and Labor on the winch only. Repair or Replace is the sole discretion of Superwinch. Wire rope is not covered by Warranty.
UNSPSC Code
24101608

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 18? Order in-stock items in the next 14 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 12 VDC 1.8 hp Sealed Permanent Magnet Motor / 21.6 Feet per minute line speed / Steel Roller Fairlead
  • 30' Rubber Handheld Remote
  • S3 Solenoid (Sealed Submersible Solenoid)
  • Instant Stop Design with absolutely no coasting
  • Dimensions measure 15.1"l. x 8.7"d. x 6.0"h; 38-lbs

Package Details

Shipping Weight: 36 pounds
Package Size: 20 x 12 x 9 inches

Product Description

Superwinch S4000 12 VDC Trailer Winch is designed for fast-and-easy installation, and is the ideal choice for all your trailer winching needs. The S Series from Superwinch is the most popular performance trailer winch on the market for a good reason. It has race proven reliability, full metal gears, powerful motor, integrated S3 sealed submersible solenoid, and rugged 30' hand-held remote. The winch is pre-mounted and sealed to protect from elements. The freespool clutch is designed for fast wire rope payout and is operated by a lever knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power. Other standard features include power in and out, instant stop with absolutely no coasting, mechanical and dynamic braking, roller fairlead, 60' x 7/32" galvanized cable and a fully weather resistant protective cover that helps keep the weather out. It is backed by Limited Lifetime warranty on mechanical parts,and 3 years on the Solenoid and 1 year on the electrical.

Amazon.com

The Superwinch S4000 Trailer Winch is designed for fast-and-easy installation, and is the ideal intermittent-duty choice for all your trailer winching needs. Race proven, this winch has a powerful motor, an integrated sealed switching solenoid, and rugged handheld remote. Other standard features include power in and out, freespooling drum, instant stop with absolutely no coasting, mechanical and dynamic braking, and roller fairlead. And the fully weather resistant protective cover helps keep the weather out. The freespool clutch, designed for fast wire rope payout, is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.



Superwinch Brand: Power when you need it, where you need it.


Multiple Uses: The ideal intermittent-duty choice for all your trailer winching needs.

   Standard Features

   Power Load IN and OUT

   Mechanical and Dynamic Brake

   Full-metal Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Low Amp Draw Motor

   Commercial Grade Integrally Mounted Sealed Contactor

   Circuit Breaker Protected

   Durable Handheld Remote Switch on 30' Lead

   Roller Fairlead

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

   0

32.0 (9.7)

  30

   1,000   (454)

16.0 (4.8)

  90

   2,000   (907)

12.4 (3.8)

155

   2,500 (1,134)

10.6 (3.2)

180

   3,000 (1,361)

  8.8 (2.7)

215

   3,500 (1,589)

  6.2 (1.9)

250

   4,000 (1,814)

  4.5 (1.4)

311

   Specifications

   Rated Line Pull (Single Line)

4,000 lb. (1,814 kg)

   Motor

1.8 horsepower (12V or 24V DC)

   Gearing

Differential Planetary

   Gear Ratio

159:1

   Freespooling Clutch

Lever action

   Braking

Mechanical and Dynamic

   Wire Rope

7/32" x 60' (5.6mm x 18.2m) with Latched Hook

   Dimensions

15.1"l. x 8.7"d. x 6.0"h.

(383mm l. x 221mm d. x 152mm h.)

   Drum Diameter

1.625" (41.3mm)

   Drum Length

3" (76.2mm)

   Weight

40 lb. (18.2 kg)

   Switching Method

30' Rubber Handheld Remote

   Switching Mechanism

Commercial Grade Contactor

   Roller Fairlead

Standard

   Wireless Remote Control

Optional
