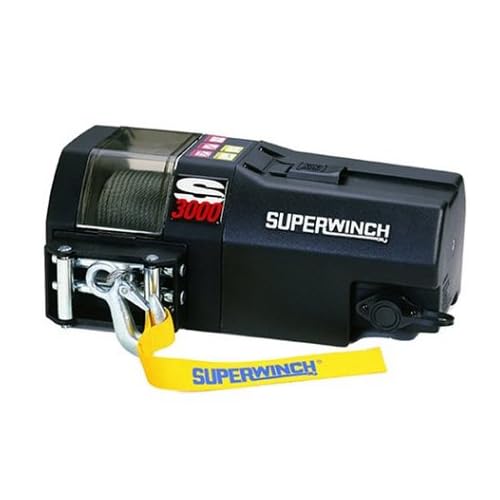

Superwinch 1430200 S3000, 12 VDC winch, 3,000lb/1360 kg single line pull with roller fairlead & 30' remote
Be the first to review this item
ASIN B00023S368
Specifications for this item
- Brand Name
- Superwinch
- Catalog Number
- 1430200
- EAN
- 0022705000338
- Item Size
- 15.1 x 7.2 x 6 inches
- Part Number
- 1430200
- UPC
- 022705000338
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 19 hours 18 minutes and choose One-Day Shipping at checkout.
Key Features
- 12 VDC 1.3 hp Sealed Permanent Magnet Motor / 17 Feet per minute line speed
- 30' Rubber Handheld Remote
- Roller Fairlead
- Instant Stop Design with absolutely no coasting
- Dimensions measure 15.1"l. x 8.7"d. x 6.0"h; 38-lbs
Package Details
Shipping Weight:
31.5 pounds
Package Size:
20.2 x 11.8 x 9.1 inches
Product Description
Amazon.com
The Superwinch S3000 Trailer Winch is designed for fast-and-easy installation, and is the ideal intermittent-duty choice for all your trailer winching needs. Race proven, this winch has a powerful motor, an integrated sealed switching solenoid, and rugged handheld remote. Other standard features include power in and out, freespooling drum, instant stop with absolutely no coasting, mechanical and dynamic braking, and roller fairlead. And the fully weather resistant protective cover helps keep the weather out. The freespool clutch, designed for fast wire rope payout, is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power. Standard Features Power Load IN and OUT Mechanical and Dynamic Brake Full-metal Gear-train Freespooling Clutch for Fast Wire Rope Payout High Efficiency Low Amp Draw Motor Commercial Grade Integrally Mounted Sealed Contactor Circuit Breaker Protected Durable Handheld Remote Switch on 30' Lead Roller Fairlead Performance 12VDC (1st layer on drum) Line Pull Line Speed Motor 0 27.7 (8.4) 15 1,000 (454) 12.5 (3.8) 70 2,000 (907) 9.0 (2.7) 117 2,500 (1,134) 7.5 (2.3) 155 3,000 (1,361) 4.5 (1.4) 220 Specifications Rated Line Pull (Single Line) 3,000 lb. (1,361 kg) Motor 1.3 horsepower (12V or 24V DC) Gearing Differential Planetary Gear Ratio 159:1 Freespooling Clutch Lever action Braking Mechanical and Dynamic Wire Rope 3/16" x 60' (4.8mm x 18.2m) with Latched Hook Dimensions 15.1"l. x 8.7"d. x 6.0"h. (383mm l. x 221mm d. x 152mm h.) Drum Diameter 1.625" (41.3mm) Drum Length 3" (76.2mm) Weight 38 lb. (17.3 kg) Switching Method 30' Rubber Handheld Remote Switching Mechanism Commercial Grade Contactor Roller Fairlead Standard Wireless Remote Control Optional
Superwinch Brand: Power when you need it, where you need it.
Multiple Uses: The ideal intermittent-duty choice for all your trailer winching needs.
lbs./kg
FPM (m/m)
Amps 12V
Product Description
Superwinch S3000 12 VDC Trailer Winch is designed for fast-and-easy installation, and is the ideal choice for all your trailer winching needs. The S Series from Superwinch is the most popular performance trailer winch on the market for a good reason. It has race proven reliability, full metal gears, powerful motor, integrated sealed solenoid, and rugged 30' hand-held remote. The winch is pre-mounted and sealed to protect from elements. The freespool clutch is designed for fast wire rope payout and is operated by a lever knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power. Other standard features include power in and out, instant stop with absolutely no coasting, mechanical and dynamic braking, roller fairlead, 60' x 3/16" galvanized cable and a fully weather resistant protective cover that helps keep the weather out. It is backed by Limited Lifetime warranty on mechanical parts and 1 year on the solenoid and electrical.
