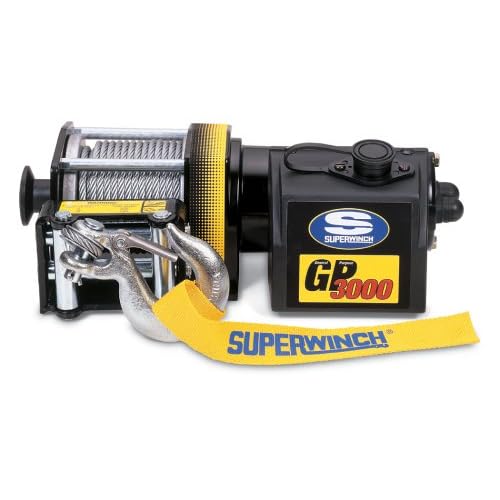

Superwinch 1330200 GP3000, 12 VDC winch, 3,000lb/1360 kg single line pull with pulley block, Roller Fairlead & rubber remote

Be the first to review this item

ASIN B00023S35Y

Specifications for this item
Part Number
1330200
Item Weight
16.09 pounds
UPC
022705000321
Brand Name
Superwinch
EAN
0022705000321
Warranty
Limited One Year Warranty on Parts and Labor on the winch only. Repair or Replace is the sole discretion of Superwinch. Wire rope is not covered by Warranty.
UNSPSC Code
24101608

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 1 day 14 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 12-Volt DC winch with 3,000-lb capacity
  • Wire rope measures 50' x 3/16"
  • Hand-held remote with 15' lead for covenient and safe use
  • Dimensions measure 12.7"l. x 4.5"d. x 4.6"h; 15-lbs
  • Load doubling Pulley Block boosts pull to 6000 lbs

Package Details

Shipping Weight: 27 pounds
Package Size: 15.4 x 11.9 x 7.8 inches

Product Description

Superwinch GP3000 General Purpose Series Winch is designed to be compact and dependable for all the your needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling clutch for fast wire payout. Constructed with a low amp, permanent magnet motor protected by a circuit breaker, the GP3000 delivers the reliable performance that has made Superwinch the brand users recognize and trust. It possesses a rugged full metal 1-stage planetary gear train, a 3,000-LB pull rating, a 1.1 horsepower permanent magnet low-amp draw motor, 50-feet of durable 3/16" wire rope, a heavy-duty 4-way roller fairlead, a wired handheld remote with 15' lead, a free-spooling pull and turn clutch, a sealed submersible solenoid and protected with at circuit breaker. It is backed by Limited Lifetime warranty on mechanical parts,and 3 years on the Solenoid and 1 year on the electrical.

Amazon.com

The Superwinch GP3000 Winch is designed for fast-and-easy installation, and is ideal for intermittent-duty general use. This winch is loaded with big winch features such as power in and power out, mechanical and dynamic braking, freespooling drum, a rugged 15-foot handheld remote, pre-mounted sealed switching solenoid, roller fairlead, and 60 feet of wire rope. Each winch also is equipped with a permanent magnet motor and freespool clutch that is designed for fast wire rope payout. The freespool is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.

This winch can handle a 3,000 pound working load, and is designed with a high-efficiency low-amp draw motor and a protected circuit breaker.



Superwinch Brand: Power when you need it, where you need it.


Multiple Uses: The ideal choice for all your intermittent-duty winching needs.

   Standard Features

   Powers Load IN and OUT


   Mechanical and Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Low Amp Draw Motor

   Commercial Grade Contactor Pre-mounted and Sealed Against the Elements

   Circuit Breaker Protected

   Durable Handheld Remote Switch on 15' Lead

   Cable Tension Plate

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

                     0

12.0 (3.6)

  15

         500 (227)

11.0 (3.3)

  38

      1,000 (454)

10.5 (3.2)

  60

      1,500 (680)

  9.0 (2.7)

  85

      1,800 (816)

  8.1 (2.5)

100

   2,300 (1,043)

  7.0 (2.1)

130

   2,500 (1,133)

  6.5 (2.0)

140

   3,000 (1,361)

  5.0 (1.5)

180

   Specifications

   Rated Line Pull (Single Line)

3,000 lb. (1,361 kg)

   Motor

1.1 horsepower (12V DC)

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking

Mechanical and Dynamic

   Wire Rope

3/16" x 50' (4.8mm x 15.2m) with Latched Hook

   Dimensions

12.7"l. x 4.5"d. x 4.6"h.

(322.6mm l. x 114.3mmd. x 116.8mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.7mm)

   Weight

15 lb. (6.8 kg)

   Switching Method

15' Handheld Remote

   Switching Mechanism

Commercial Grade Contactor

   Roller Fairlead

Standard

   Pulley Block

Standard

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional






How can we improve our Product Description?

Important Information

Safety Information

WARNING: To aviod the possible risk of injury, read and understand all safety operating instructions found in the owner's manual.
