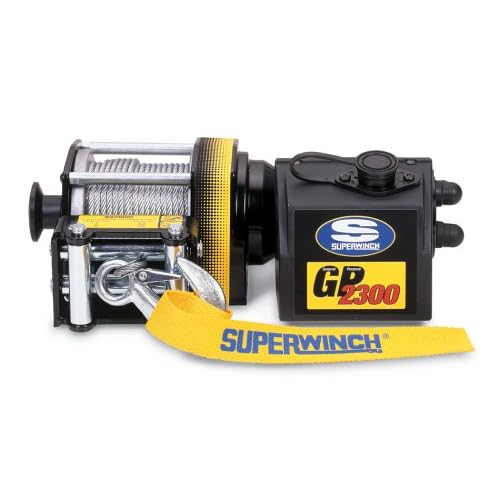

Click for larger image and other views

How can we improve our images or Product Specifications?

Other Documentation

Superwinch 1323200 GP2300 General Purpose Series Master Winch

Be the first to review this item

ASIN B00023S35O

Specifications for this item
Catalog Number
1323200
Part Number
1323200
UPC
022705000314
Brand Name
Superwinch
EAN
0022705000314
Warranty
Limited One Year Warranty on Parts and Labor on the winch only. Repair or Replace is the sole discretion of Superwinch. Wire rope is not covered by Warranty.

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 12-Volt DC winch with 2,300-lb capacity
  • Wire rope measures 60' x 5/32"
  • Hand-held remote with 15' lead for covenient and safe use
  • Dimensions measure 12.5"l. x 3.9"d. x 4.1"h; 1-lbs
  • Load doubling Pulley Block boosts pull to 3,600 lbs

Package Details

Shipping Weight: 23 pounds
Package Size: 15.4 x 12.1 x 7.7 inches

Product Description

Amazon.com

The Superwinch GP2300 Winch is designed for fast-and-easy installation, and is ideal for intermittent-duty general use. This winch is loaded with big winch features such as power in and power out, mechanical and dynamic braking, freespooling drum, a rugged 15-foot handheld remote, pre-mounted sealed switching solenoid, roller fairlead, and 60 feet of wire rope. Each winch also is equipped with a permanent magnet motor and freespool clutch that is designed for fast wire rope payout. The freespool is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.

This winch can handle a 2,300 pound working load, and is designed with a high-efficiency low-amp draw motor and a protected circuit breaker.



Superwinch Brand: Power when you need it, where you need it.


Multiple Uses: The ideal choice for all your intermittent-duty winching needs.

   Standard Features

   Powers Load IN and OUT


   Mechanical and Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Low Amp Draw Motor

   Commercial Grade Contactor Pre-mounted and Sealed Against the Elements

   Circuit Breaker Protected

   Durable Handheld Remote Switch on 15' Lead

   Cable Tension Plate

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

                     0

15.5 (4.7)

    8

         500 (227)

12.5 (3.8)

  30

      1,000 (454)

10.0 (3.0)

  60

      1,500 (680)

  6.8 (2.1)

  90

      1,800 (816)

  6.0 (1.8)

108

   2,300 (1,043)

  1.6 (0.5)

140

   Specifications

   Rated Line Pull (Single Line)

2,300 lb. (1,043 kg)

   Motor

0.71 horsepower (12V DC)

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking

Mechanical and Dynamic

   Wire Rope

5/32" x 60' (3.9mm x 18.2m) with Latched Hook

   Dimensions

12.5"l. x 3.9"d. x 4.1"h.

(317.5mm l. x 100mm d. x 104mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.7mm)

   Weight

14 lb. (6.4 kg)

   Switching Method

15' Handheld Remote

   Switching Mechanism

Commercial Grade Contactor

   Roller Fairlead

Standard

   Pulley Block

Standard

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional






Product Description

Superwinch GP2300 General Purpose Series Master Winch is designed to be compact and dependable for all the vehicles utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling drum for fast wire payout. It consists of 15-foot handheld remote switch made from cable tension plate for better performance. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker. It is pre-mounted and sealed to protect from elements. It is backed by 1 year warranty for defects in materials and workmanship.

How can we improve our Product Description?

Important Information

Safety Information

WARNING: Read and Understand all safety operating instructions, found in the owner's manual before use.
