Superwinch LT2000 12V Utility Winch (2,000lb)

Be the first to review this item

ASIN B0015U6VLQ

Specifications for this item
Part Number
1220210
Item Weight
11.9 pounds
UPC
022705002660 , 022705002646
Brand Name
Superwinch
EAN
0022705002660 , 0022705002646
Warranty
One year mechanical/electrical
UNSPSC Code
24101608

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 9 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Features a powerful, yet efficient 1.0 hp (0.8kW) motor with a 2,000 lb pull rating and circuit breaker protection
  • Utilizes 49 feet of 5/32-inch wire rope (3.9mm x 15m) with a stainless thimble, as well as a quiet, efficient, differential planetary gear box, and pull and turn freespooling clutch
  • Easily upgraded to a fully functional ATV handlebar unit with minimal additional accessories
  • Includes a handheld rubber remote switch for better and safer performance at whatever distance from the winch is required
  • Includes a one-year warranty for defects in materials and workmanship as well as electrical components

Package Details

Shipping Weight: 18 pounds
Package Size: 15.4 x 10.2 x 6.1 inches

Product Description

Superwinch LT2000 Series Winch is designed to be compact and dependable for all the vehicles utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features a dynamic brake. It includes a pull and turn free-spooling clutch for fast wire payout, a cable tension plate, and a 8-foot handheld remote. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker.

Amazon.com

The Superwinch LT2000 Utility Winch is designed to provide compact, dependable and affordable performance suitable for the needs of any vehicle, trailer or workshop. It features a low Amp, 12 volt, 1.0 hp motor, with circuit breaker protection and a 2,000 lb line pull rating, handheld remote operation for safety, a free-spooling clutch for fast wire payout, 49 feet of 5/32" wire rope and the easy and optional ability to upgrade to a fully functional ATV handlebar unit with only a few accessories.

Superwinch logo
Superwinch LT2000 Utility Winch
Compact, quiet, all-purpose winching with pull and turn freespooling clutch.
View larger.

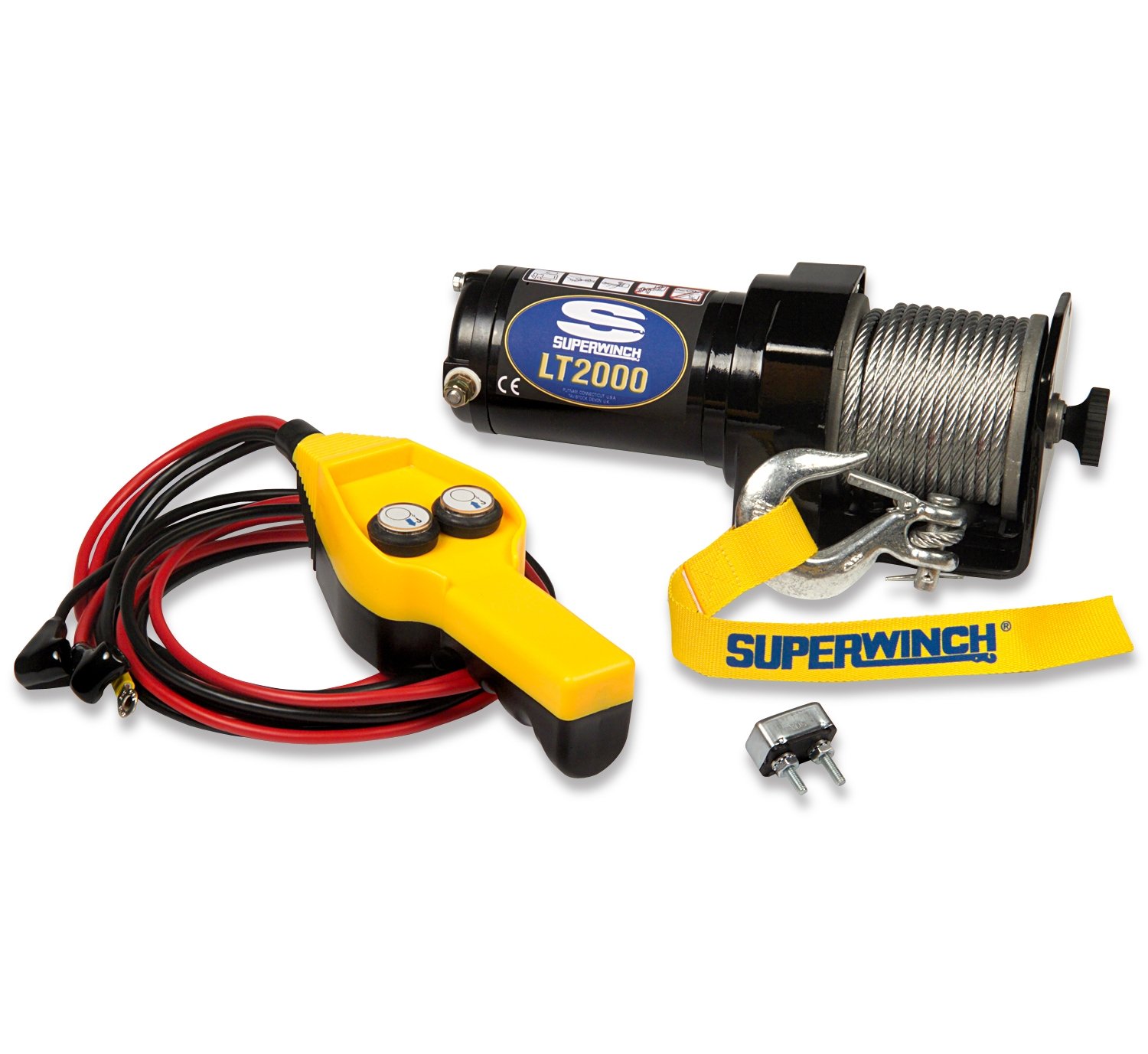

Items included with the Superwinch LT2000 Utility Winch
Remote operated with optional kit for ATV handlebar conversion.
View larger.
Schematics of the Superwinch LT2000 Utility Winch
Compact dimensions for mounting almost anywhere.
View larger.
Inexpensive, Compact and Quiet Winching Power
The Superwinch LT2000 Utility Winch is your best choice for compact, quiet, all-purpose winching – ideal for those needing a smaller, durable tool with brand-name reliability and function. This utility version winch is driven by a durable, but low Amp, permanent magnet 1.0 hp motor which is controlled by an included wired handheld remote containing two sets of color-coated electrical leads and a circuit breaker component and wire. One set of paired leads attaches to the winch and the other to the DC battery power source, with the circuit breaker component and wire added to the positive connection to the battery. Making these connections is easy, quick and ensures safe operation of the 49 feet of 5/32" rope wire included with the winch. The Superwinch LT2000 Utility Winch also features a pull and turn freespooling clutch, allowing for manual extending of wire rope, a heavy duty latched hook and a tree strap. Finally, accessory and switch upgrade kits allow for simple conversion of the LT2000 Utility Winch into an 2,000 LB ATV winch. Kits are available separately.

Standard Features:

  • Low Amp, 12V DC, permanent magnet 1.0 hp (0.8kW) motor, with 2,000 LB line pull rating.
  • 49 feet of 5/32" wire rope (3.9mm x 15m).
  • Powers load in and out.
  • Gear ratio 153:1.
  • Pull and turn freespooling clutch.
  • Circuit breaker protected.
  • Heavy duty latched hook with rope thimble.
  • Sealed, handheld switch.
  • 1-year limited warranty.
What's in the Box
1-Superwinch LT2000 Utility Winch with 49 feet of 5/32" wire rope with rope thimble, 1-wired remote with dual electrical leads, 1-circuit breaker component and wire, 1-tree strap, M8 x 1.25 x 30mm mounting bolts (for use with a 1/4" (6.3mm) thick mounting plate, sold separately), 1-users manual.

Specifications:
Rated line pull 2,000 lb. (907 kg) bottom layer
Motor 1.0 hp (0.8kW) PM motor, 12V DC
Gearing Differential planetary
Gear ratio 153:1
Freespool clutch Pull and turn action
Wire rope 5/32" x 49' (3.9mm x 15m)
Dimensions 11.0" l. x 4.1” d. x 4.1" h.
(285mm l. x 105mm d. x 105mm h.)
Drum diameter/length 1.25" (31.8mm)/2.83" (72.0mm)
Installed weight 12.0 LB (5.4 kg)
Ship weight 17.6 LB (8.0 kg)
Switching method Handheld remote
Switching mechanism Direct switch
Roller fairlead Optional
Color-coated wiring Yes
Performance 12VDC (Bottom layer on drum):
Line Pull
Motor
Line Speed
LB
 (kg)
AMPS
FPM
(m/m)
0
0
10
10.0
(3.0)
500
(227)
25
8.0
(2.4)
1,000
(454)
50
6.5
(2.0)
1,500
(680)
70
4.8
(1.4)
2,000
(907)
100
2.5
(0.8)
