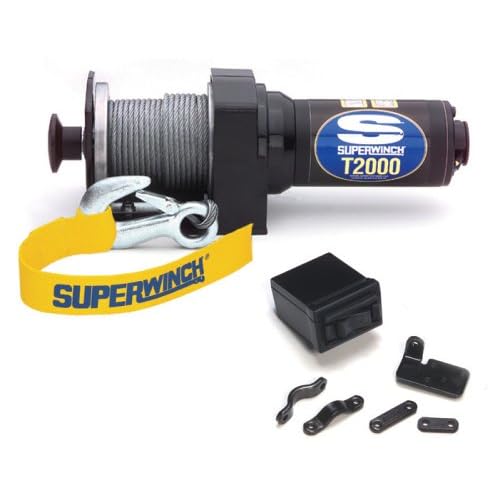

Superwinch 1220200 T2000 Performance and Economic Series Master Winch

Be the first to review this item

ASIN B00023S4QW

Specifications for this item
Part Number
1220200
Item Weight
14.5 pounds
UPC
022705000260
Brand Name
Superwinch
EAN
0022705000260
Warranty
Limited One Year Warranty on Parts and Labor on the winch only. Repair or Replace is the sole discretion of Superwinch. Wire rope is not covered by Warranty.
UNSPSC Code
24101608

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 21 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 12-Volt DC winch with a capacity to pull 2,000-lbs
  • Wire rope measures 50' x 5/32", includes latched hook
  • Rotary-style remote mounted switch; wireless remote control optional
  • Dimensions measure 12.5"l. x 3.9"d. x 4.1"h; 14-lbs
  • Remote or Handlebar mountable Rocker Switch

Package Details

Shipping Weight: 16 pounds
Package Size: 15.3 x 7.2 x 6.9 inches

Product Description

Superwinch T2000 Performance and Economic Series Master Winch is designed to be compact and dependable for all the vehicles utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling drum for fast wire payout. It consists of 15-foot handheld remote switch made from cable tension plate for better performance. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker. It is pre-mounted and sealed to protect from elements. It is backed by 1 year warranty for defects in materials and workmanship.

Amazon.com

The Superwinch T2000 Trailer Winch is designed for fast-and-easy installation, and is the perfect choice when performance and value are your main goals. This compact winch with remote mounted switching is ideal for your light-duty winching applications around the house, garage, boatyard, or workshop. This winch is equipped with a permanent magnet motor and is ideal for general use. The Freespool Clutch is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.

The Superwinch features a wire rope tensioning plate to reduce backlash and snarling when pulling out the rope, and full load mechanical and dynamic brake for added safety. The T2000 incorporates a high-efficiency remote mounted draw motor, and a remote switch allows a wide variety of mounting options. This winch includes a 50-foot galvanized wire rope with thimble end and a latched hook.



Superwinch Brand: Power when you need it, where you need it.


Multiple Uses: The ideal light-duty choice around the house, garage, boatyard, or workshop.

   Standard Features

   Powers Load IN and OUT

   Mechanical and Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Remote Mounted Draw Motor

   Convenient Remote Mounted Switch

   Circuit Breaker Protected

   50' Galvanized Wire Rope with Thimble End and Latched Hook

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

                  0

14.5 (4.4)

    8

      500 (227)

11.3 (3.4)

  30

   1,000 (454)

  8.5 (2.6)

  60

   1,500 (680)

  5.2 (1.6)

  90

   2,000 (907)

  2.0 (0.6)

118

   Specifications

   Rated Line Pull (Single Line)

2,000 lb. (907 kg)

   Motor

0.71 horsepower

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking Action

Mechanical and Dynamic

   Wire Rope

5/32" x 50' (3.9mm x 15.2m) with Latched Hook

   Dimensions

12.5"l. x 3.9"d. x 4.1"h.

(317.5mm l. x 100mm d. x 104mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.6mm)

   Weight

14 lb. (6.4kg)

   Switching Method

Rotary Switching

   Roller Fairlead

Optional

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional






How can we improve our Product Description?

Important Information

Safety Information

WARNING: To avoid the risk of injury read and understand all safety operating instructions before use.
