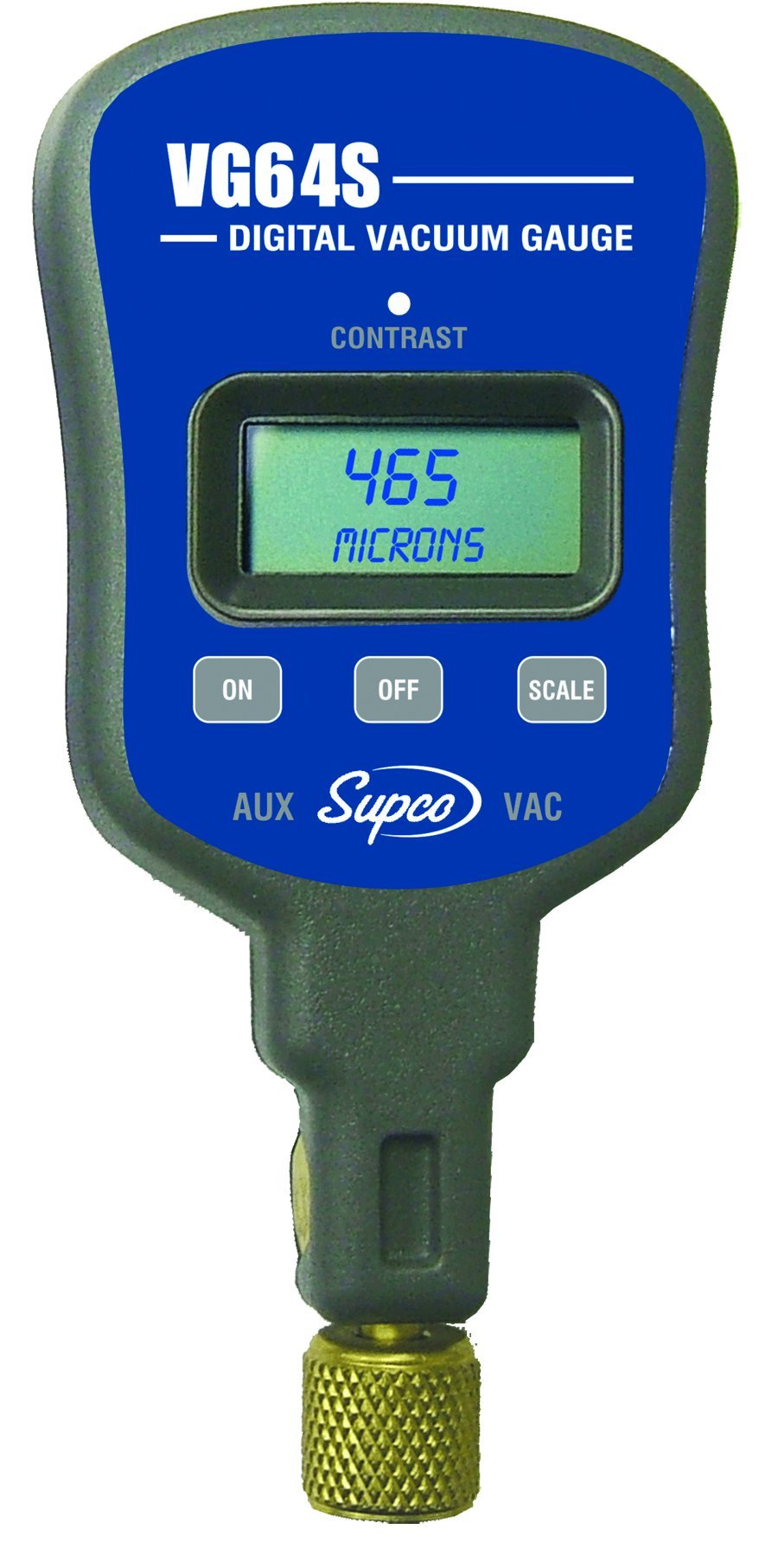

Supco VG64S Vacuum Gauge With Single Port, Digital Display, 0-12000 microns Range, 10% Accuracy, 1/4" Male Flare Fitting Connection

Be the first to review this item

ASIN B004XS10D6

Specifications for this item
Number of Items
1
Overall Height
5-1/2  inches
Overall Width
3  inches
Material Type
42
Part Number
VG64S
Item Weight
0.25 pounds
UPC
687152210404
Item Depth
1-1/4 inches
Brand Name
Supco
EAN
0687152210404
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 8 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Ultra Fine Resolution (as low as 1 Micron)
  • 1/2 Second response time
  • Auto shut off, built in hanger
  • Easy access cleaning port, measures vacuum in 7 international units
  • Measures 3" length by 1-1/4" width by 5-1/2" height; 1 year warranty

Package Details

Shipping Weight: 1.05 pounds
Package Size: 12.8 x 7.2 x 4.7 inches

Product Description

With resolution as low as 1 micron and 1/2 second response time, Provides accurate measurements, fast. It makes evacuating a system easy. Applications: vacuum measurements during system evacuation, high precision laboratory tests. Sensor Type: Thermistor. Connector Type: Standard 1/4 inch male flare fitting. Vacuum Range: 0 - 12000 Microns (0 - 1600 Pascals) with vacuum increasing/decreasing indicator when above 12000 Microns. Scale: Microns, PSI, InHg, milliBars, Pascals, Torr, milliTorr. Resolution: 0-200: 1 Micron, 201-500: 5 Microns, 501-1,000: 10 Microns, 1001-2000: 50 Microns, 2001-5000: 250 Microns, 5001-8000: 500 Microns, 8001-12000: 1000 Microns. Operating Temperature Range: 35 degree F to 125 degree F (2 degree C to 52 degree C). Overpressure: 500 psi max. Accuracy: +/-10 percent. Power Source: 9 Volt Alkaline Battery (not included). Continuous Usage: 30 Hours (approximate). Auto Shutoff: After 10 minutes when vacuum reading is above 12000 Microns (12 Torr). Measures 3" length by 1-1/4" width by 5-1/2" height, 1 year warranty. Single port connection.
