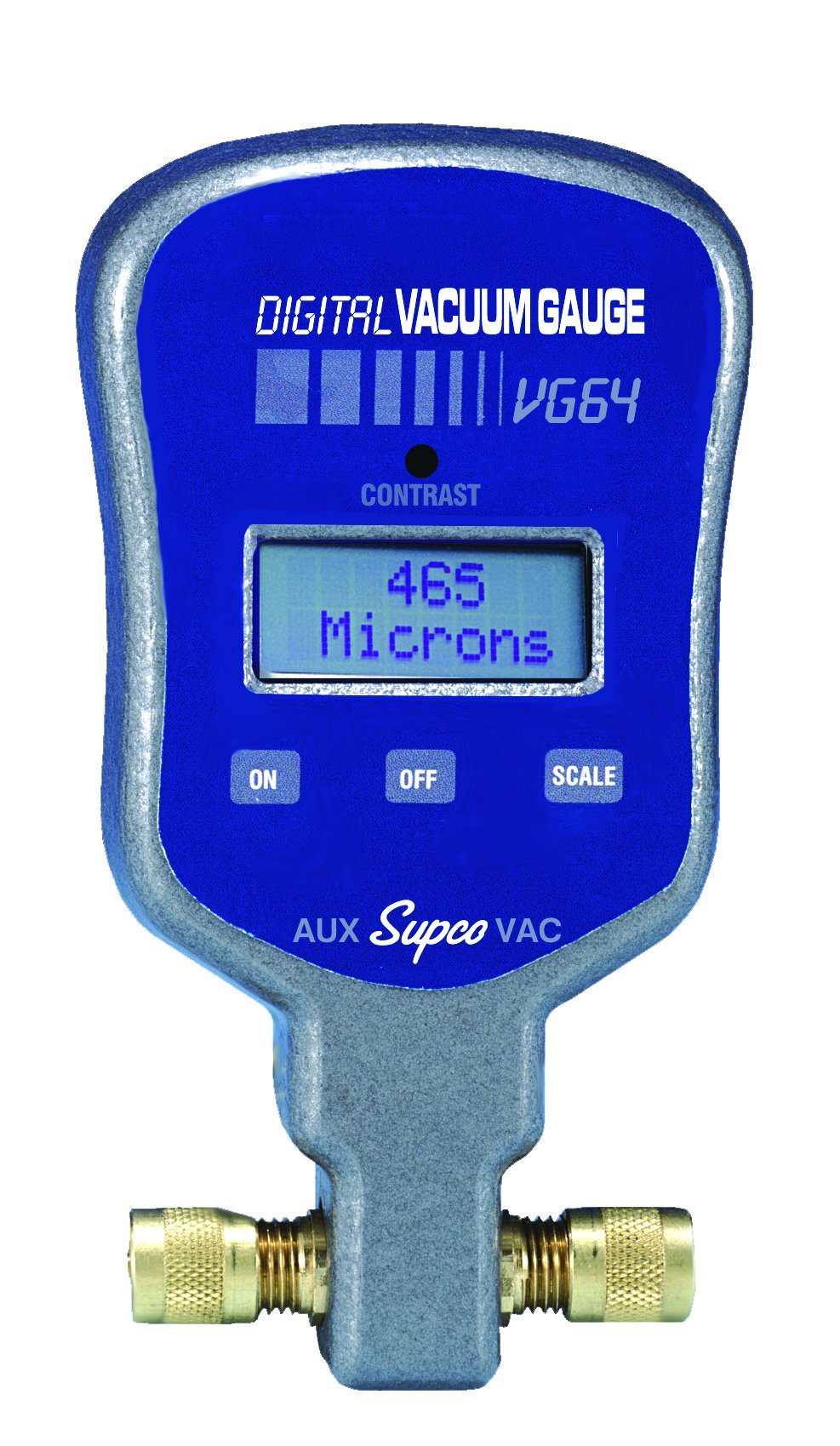

Supco VG64 Vacuum Gauge, Digital Display, 0-12000 microns Range, 10% Accuracy, 1/4" Male Flare Fitting Connection

Be the first to review this item


Specifications for this item
Number of Items
Overall Height
5-1/2  inches
Overall Width
3  inches
Material Type
Part Number
687152136100 , 094700736024
Item Weight
0.25 pounds
Item Depth
1-1/4 inches
Brand Name
0687152136100 , 0094700736024
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 3 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Vacuum gauge with ultra-fine resolution (0.5 to 1000 micron), and a 0-12,000 micron vacuum range for accurate pressure measurement during system evacuation, and high-precision laboratory tests
  • Programmable, audible and visual alarm for high and low vacuum indicates when threshold is reached
  • Backlit, LCD digital display of seven international units including microns, Pascal, and PSI, and a 1/2-second response time
  • Auto shut-off eight hours after alarm activation, and when alarm is disabled
  • Built-in hanging apparatus for maneuverability

Package Details

Shipping Weight: 0.55 pounds
Package Size: 9.2 x 4 x 1.9 inches

Product Description

The Supco VG64 vacuum gauge has an LCD digital, backlit display of 0 to 12,000 micron (0 to 1,600 Pascals) range, 0.5 to 1,000 micron resolution, 1,000 micron graduation, a programmable, audible, and visual alarm for high and low vacuum, and a 1/2-second response time. A vacuum gauge measures vacuum pressure in a wide variety of test, inspection, and measurement applications in the automotive, pharmaceutical, chemical, food and beverage, and petrochemical industries.

The VG64 measures vacuum in seven international units including micron, milliBar, Pascal, Torr, psi, InHg, and milliTorr. It has a built-in hanging apparatus for maneuverability. A thermistor sensor provides accurate readings, and an accessible cleaning port provides quick cleaning and sensor drying. The VG64 has a low battery indicator, and works with a 9V battery (not included) for 600 hours of continuous operation. It has a one-year, limited warranty.


Sensor type Thermistor
Connector type Standard, 1/4-inch male flare fitting
Vacuum range 0 to 12,000 Microns (0 to 1,600 Pascal)
Resolution 0 to 200: 1 Micron; 201 to 500: 5 Microns; 501 to 1,000: 10 Microns; 1,001 to 2,000: 50 Microns; 2001 to 5,000: 250 Microns; 5,001 to 8,000: 500 Microns; 8,001 to 12,000: 1000 Microns
Accuracy + or - 10%, or + or - 10 Micron; whichever is larger (50 to 2000 Microns) at 75 degrees F
Update rate 0.5 seconds
Alarm volume 87 decibels (dB)
Operating temperature range 35 to 125 degrees F (2 degrees C to 52 degrees C)
Overpressure 500 PSI maximum (20 Bar)
Dimensions 5.5 x 3.0 x 1.25 inches (H x W x D)
Weight 6.7 ounces


H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

A vacuum gauge measures vacuum pressure in a wide variety of test, inspection and measurement applications in the automotive, pharmaceutical, chemical, food and beverage, and petrochemical industries. Vacuum gauges can have analog or digital displays, and express a variety of units such as Microns, Pascal, and PSI.

Sealed Unit Parts Co. (SUPCO), Inc. manufactures precision electronic and test instruments, and replacement parts for the heating, ventilation, air-conditioning, and refrigeration (HVAC) industries. SUPCO is headquartered in Allenwood, NJ, and has been in operation since 1945.

What’s in the Box?

  • VG64 Vacuum gauge
  • Instructions
