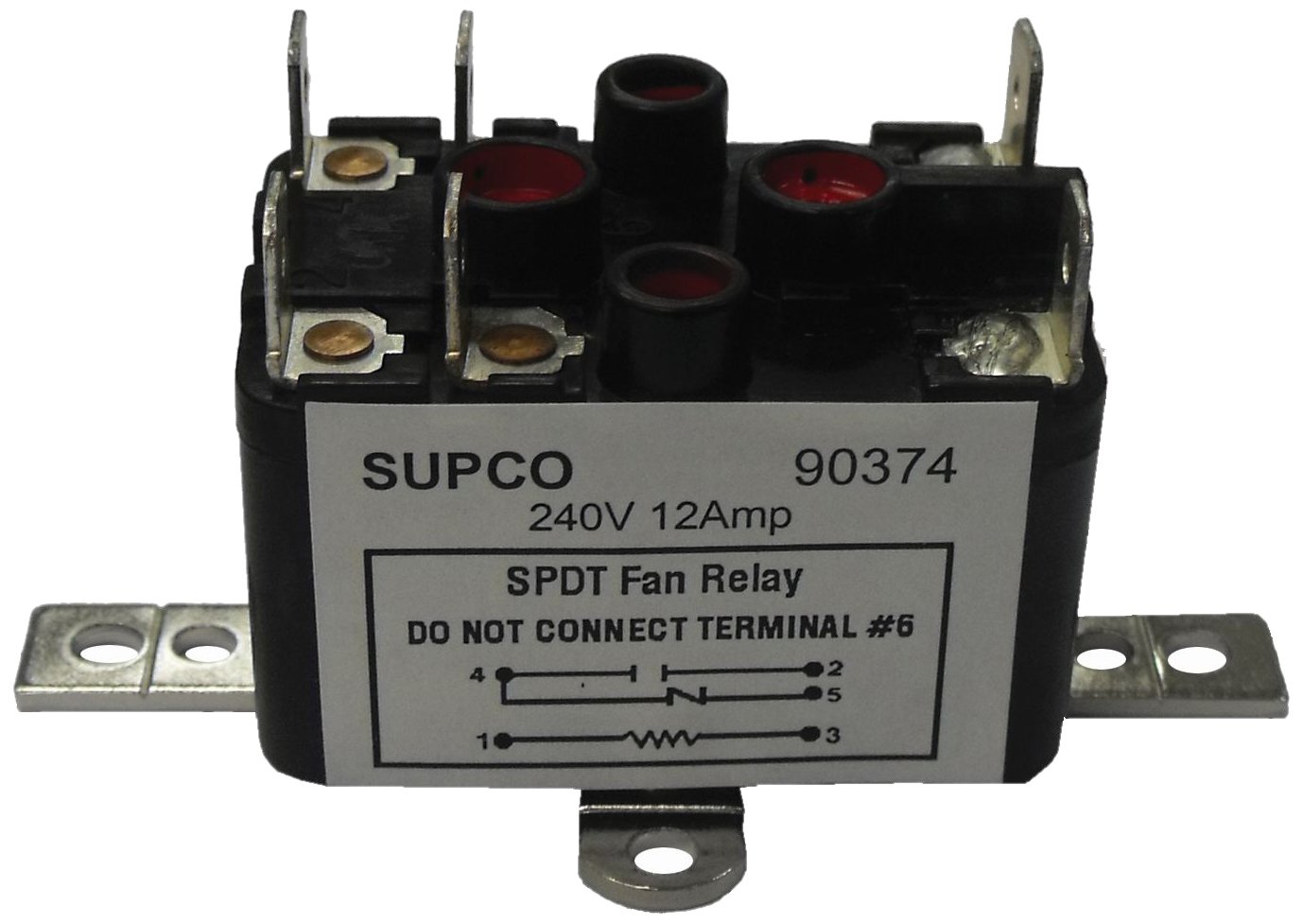

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Supco 902 Series General Purpose Fan Relay

Be the first to review this item

Product Specifications
UNSPSC Code
39122300
Brand Name
Supco

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 2 days 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-11 of 11
1 A Load Current, 120 V Coil Voltage, Single Pole Double Throw Contacts B0071NATZU yes $7.26 Buy Options
1 A Load Current, 24 V Coil Voltage, Single Pole Double Throw Contacts B0071NAT64 yes $11.95 Buy Options
1 A Load Current, 240 V Coil Voltage, Single Pole Double Throw Contacts B0071NAUX6 yes $7.05 Buy Options
12 A Load Current, 120 V Coil Voltage, Single Pole Double Throw Contacts B0071NAYUU yes $8.25 Buy Options
12 A Load Current, 24 V Coil Voltage, Single Pole Double Throw Contacts B004XS148C yes $5.83 Buy Options
12 A Load Current, 240 V Coil Voltage, Single Pole Double Throw Contacts B0071NAZT0 yes $8.04 Buy Options
13 A Load Current, 24 V Coil Voltage, Normally Open and Normally Closed Contacts B004XS1ZX6 yes $5.30 Buy Options
13 A Load Current, 240 V Coil Voltage, Normally Open and Normally Closed Contacts B0071NB34G yes $7.17 Buy Options
18 A Load Current, 120 V Coil Voltage, Normally Open and Normally Closed Contacts B0071NB12K yes $8.13 Buy Options
4 A Load Current, 24 V Coil Voltage, Single Pole Single Throw Contacts B0002YTM30 yes $5.49 Buy Options
4 A Load Current, 240 V Coil Voltage, Single Pole Single Throw Contacts B0071NAQ58 yes $6.14 Buy Options

Key Features

  • Electric relay for receiving and controlling electric signals
  • Controls signals for a fan
  • SPST-NO, SPST-NC, SPDT 1 NO/1 NC contact forms
  • Sealed enclosure

Product Description

The Supco 902 series fan relays receive and control electrical signals for general purpose fan applications. This fan relay has SPST-NO, SPST-NC, SPDT-NO/NC contacts made of silver alloy and coil voltage ratings of 24VAC to 240VAC. It is suitable for use in fan applications.

Specifications
ContactsSPST-NO, SPST-NC, SPDT, 1 NO/1 NC
Contact materialSilver alloy
Power ratings (all forms)125VAC, 18 amp resistive, 12 FLA, 60 LRA, 240/277VAC, 18 amp resistive, 8 FLA, 48 LRA
Special power ratings (form 1 and 2)125VAC, 14 FLA, 84 LRA, 277VAC, 25 amp resistive
Pilot ratings (all forms)3 amp, 277VAC general purpose
250VA at 250VAC
277VA at 277VAC
125VA at 125VAC
Coil voltage rating24, 120, 208/240, 77VAC, 12, 24
Coil frequency50/60 Hz
Coil pick-up voltageAC 85% of nominal, DC 75% of nominal
Coil power ratingAD DC, Inrush 5VA 3VA, Sealed 3VA 3VA

Relay switches (also called an electrical relay or an electrical relay switch) use a small amount of power to control a larger source of power connected to electrical devices such as car motors, computers, and lighting installations. A basic relay switch has a control circuit with an electromagnetic coil and a load circuit with contacts and a lever. When current flows into the relay switch, it moves through the coil and a magnetic field is created, which causes the lever in the load circuit to move between contacts, either turning the device on or off. In a normally open (NO) relay switch, when power is supplied to the relay, the load circuit is closed and the power source connected to the relay is turned on. In a normally closed (NC) relay switch, when power is supplied to the relay, the load circuit is open and the power source connected to the relay is turned off. In other types of relay switches, non-moving parts such as transistors or semiconductors can be used as the control circuit to operate the switching mechanism. Relay switches can be controlled with an external switch, such as a light switch, or they can be connected to an automatically switched power source, such as a car ignition. One relay can operate multiple switches, and multiple relays can be operated with a single switch, with each relay operating independently from the other relays in the system.

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.
