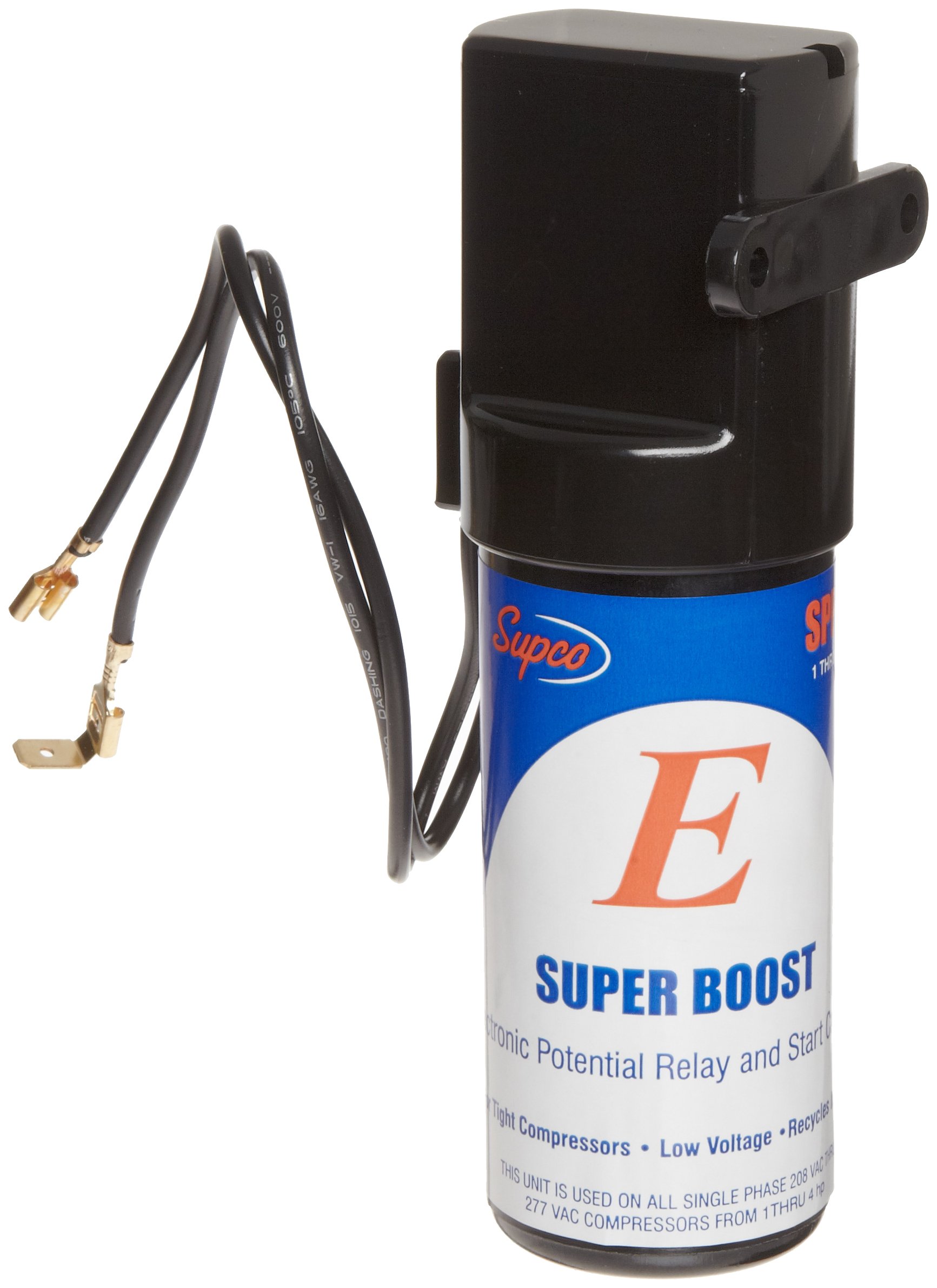

Supco SPP E Series Electronic Potential Relay Style Hard Start Kit

Be the first to review this item

Product Specifications
UNSPSC Code
39122300
Brand Name
Supco

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 10 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-3 of 3
1 - 4 Horsepower Range, 130-156F Capacitor Size B004XS1OHS yes $24.74 Buy Options
1/2 - 3 Horsepower Range, 88-106F Capacitor Size B002JP3MEK yes $22.14 Buy Options
Greater than 1 Horsepower Range, 189-227F Capacitor Size B0002YTKXW yes $24.78 Buy Options

Key Features

  • Electronic potential relay for starting motors
  • Two-wire connection for installation
  • Back-up electronic timing circuit to protect the compressor
  • Voltage-sensing capability
  • UL recognized for safety and NATE certified for HVAC applications

Product Description

This Supco SPP E series electronic potential relay style hard start kit has a two-wire installation connection for starting motors. This electronic relay meets Original Equipment Manufacturer (OEM) requirements for relays to fit multiple applications. It has an instant re-start feature and a voltage-sensing capability. This relay has a back-up electronic timing circuit to protect the compressor can be used on permanent–split capacitor (PSC) and capacitor start induction run (CSIR) type compressors. This hard start electronic potential relay is Underwriter's Laboratories (UL) recognized and North American Technician Excellence (NATE) certified and is suitable for use in heating, air conditioning and refrigeration applications.

Relay switches (also called an electrical relay or an electrical relay switch) use a small amount of power to control a larger source of power connected to electrical devices such as car motors, computers, and lighting installations. A basic relay switch has a control circuit with an electromagnetic coil and a load circuit with contacts and a lever. When current flows into the relay switch, it moves through the coil and a magnetic field is created, which causes the lever in the load circuit to move between contacts, either turning the device on or off. In a normally open (NO) relay switch, when power is supplied to the relay, the load circuit is closed and the power source connected to the relay is turned on. In a normally closed (NC) relay switch, when power is supplied to the relay, the load circuit is open and the power source connected to the relay is turned off. In other types of relay switches, non-moving parts such as transistors or semiconductors can be used as the control circuit to operate the switching mechanism. Relay switches can be controlled with an external switch, such as a light switch, or they can be connected to an automatically switched power source, such as a car ignition. One relay can operate multiple switches, and multiple relays can be operated with a single switch, with each relay operating independently from the other relays in the system.

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.
