Supco PIT6L Mini Infrared Thermometer, -20 to 270 Degrees C, -4 to 518 Degrees F, Accuracy of + or - 1% of Reading Plus 3 Degrees C

Be the first to review this item

ASIN B005S2E4RA

Specifications for this item
Number of Items
1
Overall Height
3-57/64  inches
Overall Width
57/64  inches
Part Number
PIT6L
Item Weight
0.16 pounds
UPC
687152215850
Brand Name
Supco
EAN
0687152215850
UNSPSC Code
42182200
Overall Length
2-19/64  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 19 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital thermometer for measuring surface and ambient temperature in a range of commercial and industrial applications
  • Infrared sensor measures temperature from -20 to 270 degrees C (-4 to 518 degrees F), with a best accuracy of + or - 2% of the reading plus 3 degrees C (5 degrees F)
  • Infrared sensor measures temperature from a distance
  • 6:1 distance-to-spot ratio
  • Laser pointer helps improve aiming accuracy when taking infrared measurements

Package Details

Shipping Weight: 0.25 pounds
Package Size: 8.2 x 5.1 x 1.2 inches

Product Description

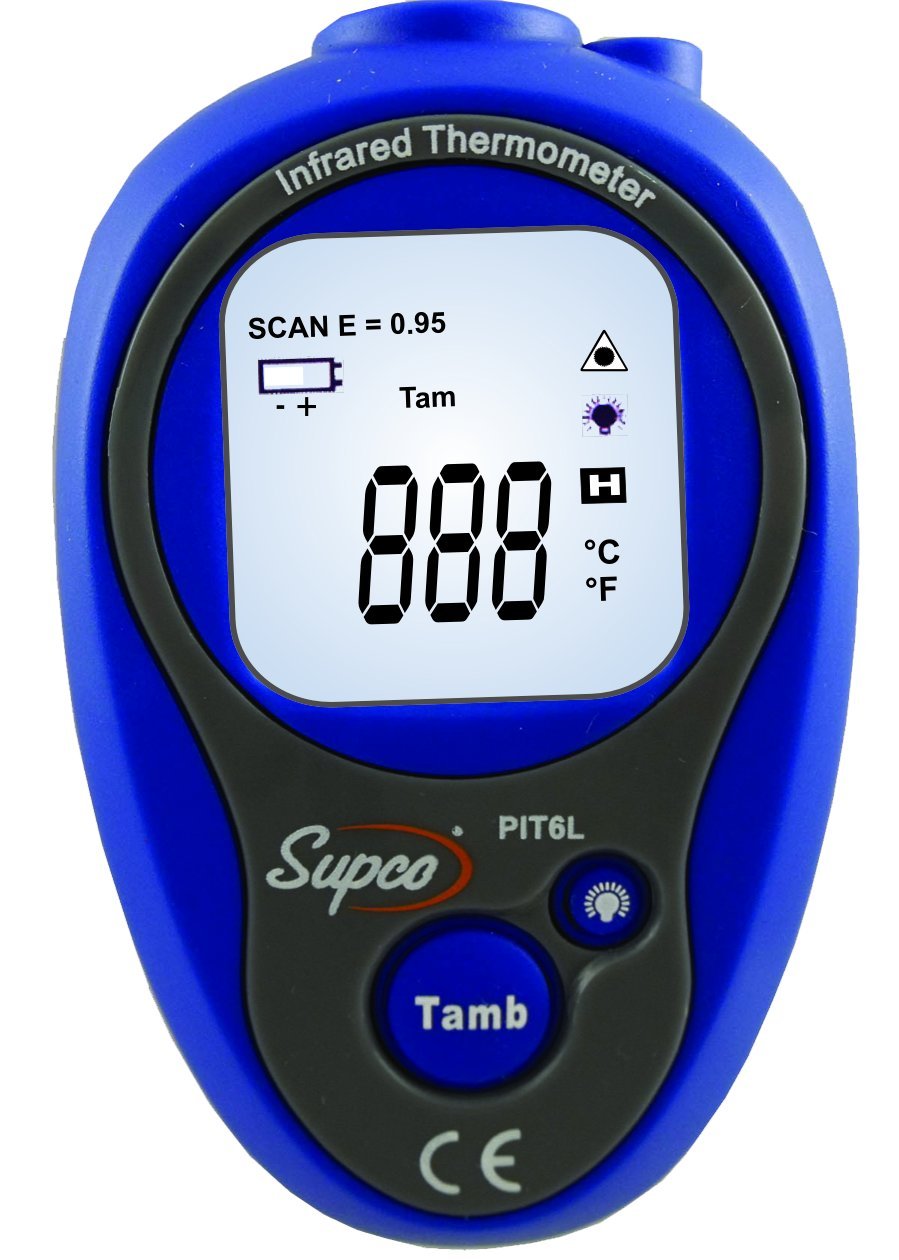

The Supco PIT6L infrared thermometer is for measuring surface and ambient temperatures in a range of commercial and industrial applications. The thermometer measures temperature from -20 to 270 degrees C (-4 to 518 degrees F), with a best accuracy of + or - 2% of the reading plus 3 degrees C (5 degrees F). The infrared sensor measures surface temperature at a distance for applications involving hard-to-reach, moving, hot, or electrified equipment. It has a 6:1 distance-to-spot ratio, which means the measurement field measures approximately 6 feet in diameter when the target is 1 foot away. A built-in laser pointer helps improve aiming accuracy when taking infrared measurements. The LCD screen displays the measured surface temperature or the current ambient temperature in degrees Fahrenheit or Celsius. The display is backlit for readability in low light. A hold function keeps a reading on the display so that it can be recorded. The thermometer operates on three AAA batteries (included), and it automatically shuts off after 20 seconds of non-use to conserve battery life. A wrist strap is included to free up hands during use and help prevent accidental drops.

Specifications

Infrared temperature measurement range-4 to 518 degrees F (-20 to 270 degrees C)
Ambient temperature measurement range32 to 122 degrees F (0 to 50 degrees C)
Accuracy, at ambient temperature of 72 degrees F+ or - 2% of reading plus 3 degrees C (6 degrees F)
Resolution1 degree C or F
Distance-to-spot ratio6:1
Emissivity0.95
Response time2 second
Power supplyAAA batteries (three, included)
Weight72 g (2.5 oz.)
Dimensions*98 x 58 x 2 mm/3.9 x 2.3 x 0.9 in. (H x W x D)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Digital infrared thermometers measure the temperature of surfaces from a distance. They may measure temperature in Celsius, Fahrenheit, or both. Infrared (IR) thermometers work by focusing the infrared radiation emitted by a surface onto a detector called a thermopile. The thermopile turns the heat into electricity, which is measured and converted to a temperature reading. The reading is then displayed on an LCD display. IR thermometers are used to measure temperature when an object is fragile, as in ear thermometers, or dangerous to be near, as in the case of industrial equipment.

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.

What's in the Box?
  • Supco PIT6L infrared thermometer
  • (3) AAA batteries
  • Wrist strap
  • Instructions
