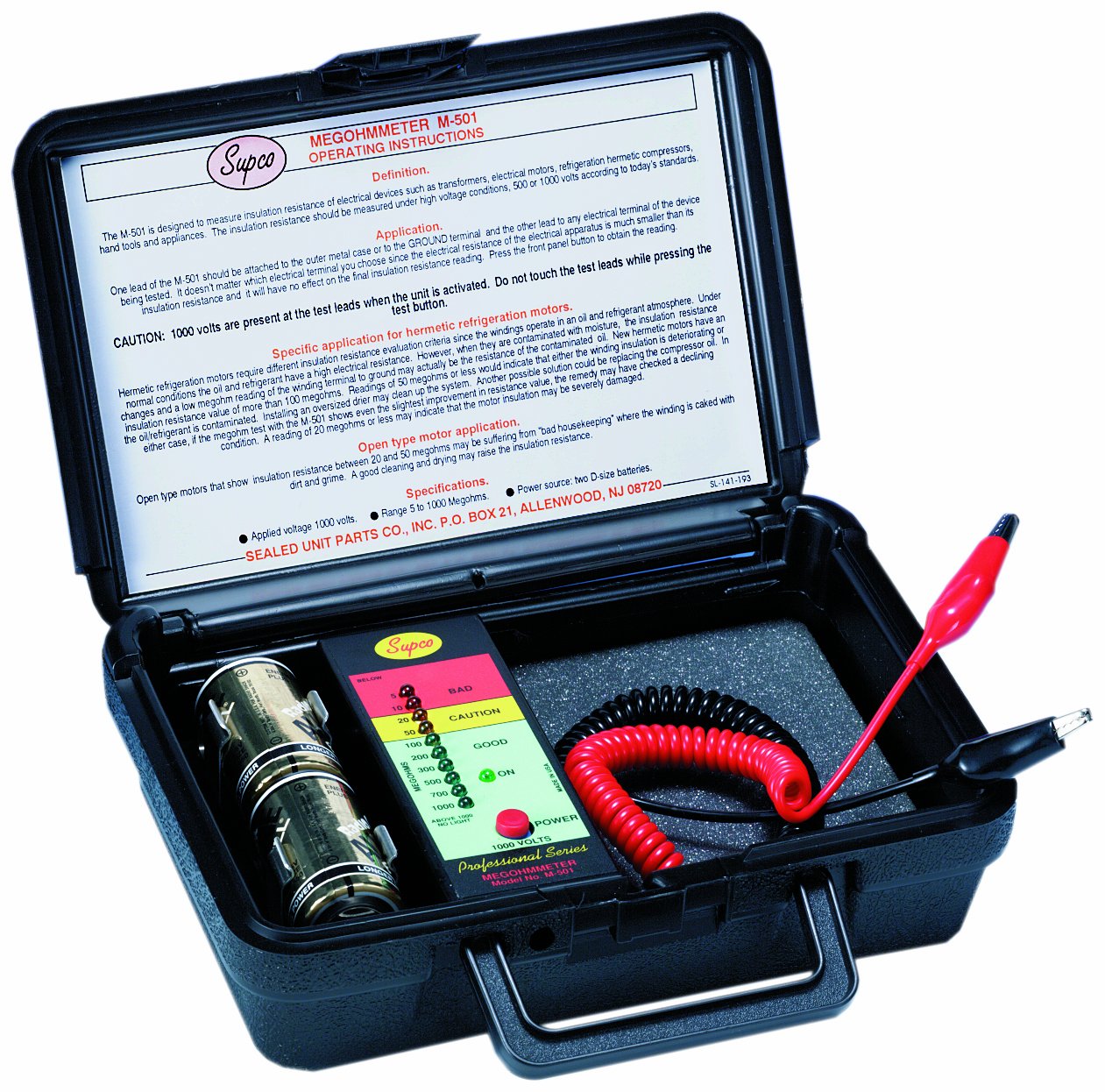

Supco M501 Electronic Megohmmeter with Service Case, 1000 Megohms Insulation Resistance, 1,000V Test Voltage

Be the first to review this item

ASIN B004XS1J50

Specifications for this item
Number of Items
1
Part Number
M501
UPC
687152021123
Brand Name
Supco
EAN
0687152021123
UNSPSC Code
41113623

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 18 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Electronic megohmmeter has a 1,000V test voltage for measuring insulation resistance to 1,000 megohms
  • Zone-type scale indicates "bad", "caution", or "good" insulation condition
  • Built into a hard-shell service case for portability and protection
  • Comes with a set of test leads with alligator clips

Package Details

Shipping Weight: 2.2 pounds
Package Size: 10.7 x 7.4 x 3.4 inches

Product Description

The Supco M501 electronic megohmmeter is an insulation tester with a 1,000V test voltage for measuring insulation resistance to 1,000MΩ to indicate the condition of windings or cables in motors, switchgears, electrical installations, and other insulated equipment. The meter displays readings on a zone-type scale that indicates "bad", "caution", or "good" insulation condition. It is built into a hard-shell case for portability and protection. The unit comes with a set of test leads and instructions. Megohmmeters are commonly used for electrical maintenance and testing in industries such as HVAC, transportation, manufacturing, mining, and utilities, among others.

Specifications
Maximum insulation resistance measured1,000MΩ
Test voltage1,000V
Power(2) D batteries (sold separately)
Weight1.8 lb.
Dimensions (H x W x D)*9.25 x 6.5 x 3 inches

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back

.

Megohmmeters, also called insulation testers, are electrical test meters that measure resistance to the flow of current in an electrical component or circuit and check the continuity of an electrical circuit to detect electrical problems such as degraded insulation and improper circuit connections in equipment, wiring, and power supplies. Resistance is an indicator of the overall condition of the device being tested. Megohmmeters have an internal power supply, such as a battery or a capacitor, which supplies a test voltage to a circuit or component that is turned off. Test leads are connected in a series to the tester and the circuit or device being tested. The meter calculates the difference in voltage between the leads and measures the resistance. Most megohmmeters have two terminals for test lead attachment. The two-terminal, or two-wire, measurement method includes the resistance of the circuit or device being tested and the resistance of the test leads, and generally provides sufficient accuracy for measuring large values of resistance in insulation testing applications.

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.

What's in the Box?
  • Supco M501 electronic megohmmeter
  • Set of test leads
  • Instructions
