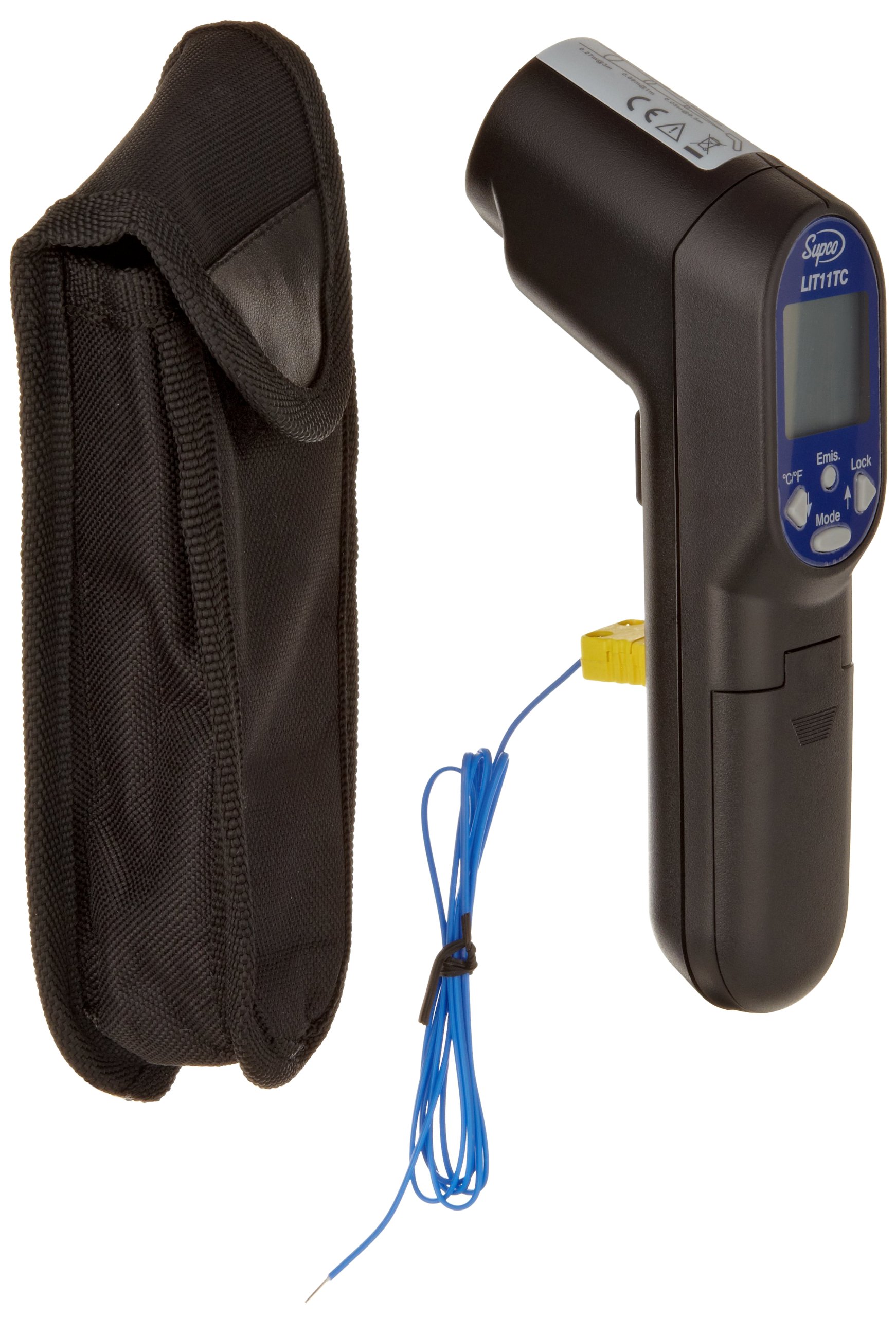

Supco LIT11TC Laser Infrared Thermometer with Probe, -60 to 700 Degrees C, -76 to 932 Degrees F, Accuracy of + or - 1 Degree C

Be the first to review this item

ASIN B004OMDWK0

Specifications for this item
Number of Items
1
Overall Height
6-57/64  inches
Overall Width
2-51/64  inches
Part Number
LIT11TC
Item Weight
0.39 pounds
UPC
687152195688
Brand Name
Supco
EAN
0687152195688
UNSPSC Code
42182200
Overall Length
1-1/2  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 3 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital thermometer with probe for measuring temperature in heating, ventilation, and air conditioning applications, including refrigeration and heating systems, supply and return registers, circuit breaker panels, motors and bearings, transformers, and ducts
  • Infrared sensor measures temperature from -60 to 500 degrees C (-76 to 932 degrees F) with a best accuracy of + or - 1 degree C (+ or - 2 degrees F)
  • Infrared sensor measures temperature from a distance
  • K-type thermocouple probe takes contact surface temperature measurements
  • 11:1 distance-to-spot ratio

Package Details

Shipping Weight: 0.7 pounds
Package Size: 9.9 x 5.9 x 2.7 inches

Product Description

The Supco LIT11TC infrared thermometer with K-type thermocouple probe is for measuring temperature in heating, ventilation, and air conditioning applications, including refrigeration and heating systems, supply and return registers, circuit breaker panels, motors and bearings, transformers, and ducts. When taking infrared measurements, the thermometer measures temperature from -60 to 500 degrees C (-76 to 932 degrees F) with a best accuracy of + or - 1 degree C (+ or - 2 degrees F). The Infrared sensor measures temperature from a distance for applications involving hard-to-reach, moving, hot, or electrified equipment. The detachable K-type thermocouple probe takes contact surface temperature measurements. The infrared sensor has an 11:1 distance-to-spot ratio, which means the measurement field measures approximately 11 feet in diameter when the target is 1 foot away. It has an adjustable emissivity setting to help improve measurement accuracy on a range of surface types. A built-in laser pointer helps improve aiming accuracy when taking infrared measurements. The LCD screen can display the current temperature, the highest or lowest temperature reading for the session, the difference between the high and low temperatures, and the average temperature for the session. The operator can choose to display readings in degrees Fahrenheit or Celsius. The operator can set high and low temperature alarms to sound when measurements exceed or drop below the preset limits. The display is backlit for readability in low light. The thermometer operates on two AAA batteries (included), and it can be set to automatically shut off after 60 seconds or 12 minutes of non-use to conserve battery life. A carrying case is included for transporting and storing the thermometer.

Specifications

Infrared thermometer temperature measurement range-60 to 500 degrees C (-76 to 932 degrees F)
Infrared thermometer accuracy (measuring 59 to 95 degrees F at ambient temperature of 77 degrees F)+ or - 1 degree C (+ or - 2 degrees F)
Infrared thermometer accuracy (measuring -14.8 to 391.8 degrees F)+ or - 2% of reading, or 4 degrees F (whichever is greater)
K-type thermocouple temperature measurement range-64 to 1400 degrees C (-83.2 to 1999 degrees F)
K-type thermocouple accuracy+ or - 1% of reading, or 2 degrees F
Probe temperature measurement range14 to 250 degrees C (58 to 482 degrees F)
Resolution0.1 degree F
Distance-to-spot ratio11:1
Emissivity range0.10 to 1, adjustable
Response time1 second
TPI wavelength8 to 14 nanometers
Operating temperature0 to 50 degrees C (32 to 122 degrees F)
Power supplyAAA batteries (two, included)
Weight179 g (6.3 oz.)
Dimensions*175 x 39 x 71.9 mm/6.9 x 1.5 x 2.8 in. (H x W x D)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Digital infrared thermometers measure the temperature of surfaces from a distance. They may measure temperature in Celsius, Fahrenheit, or both. Infrared (IR) thermometers work by focusing the infrared radiation emitted by a surface onto a detector called a thermopile. The thermopile turns the heat into electricity, which is measured and converted to a temperature reading. The reading is then displayed on an LCD display. IR thermometers are used to measure temperature when an object is fragile, as in ear thermometers, or dangerous to be near, as in the case of industrial equipment.

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.

What's in the Box?
  • Supco LIT11TC infrared thermometer
  • K-type thermocouple probe
  • (2) AAA batteries
  • Carrying case
  • Instructions
