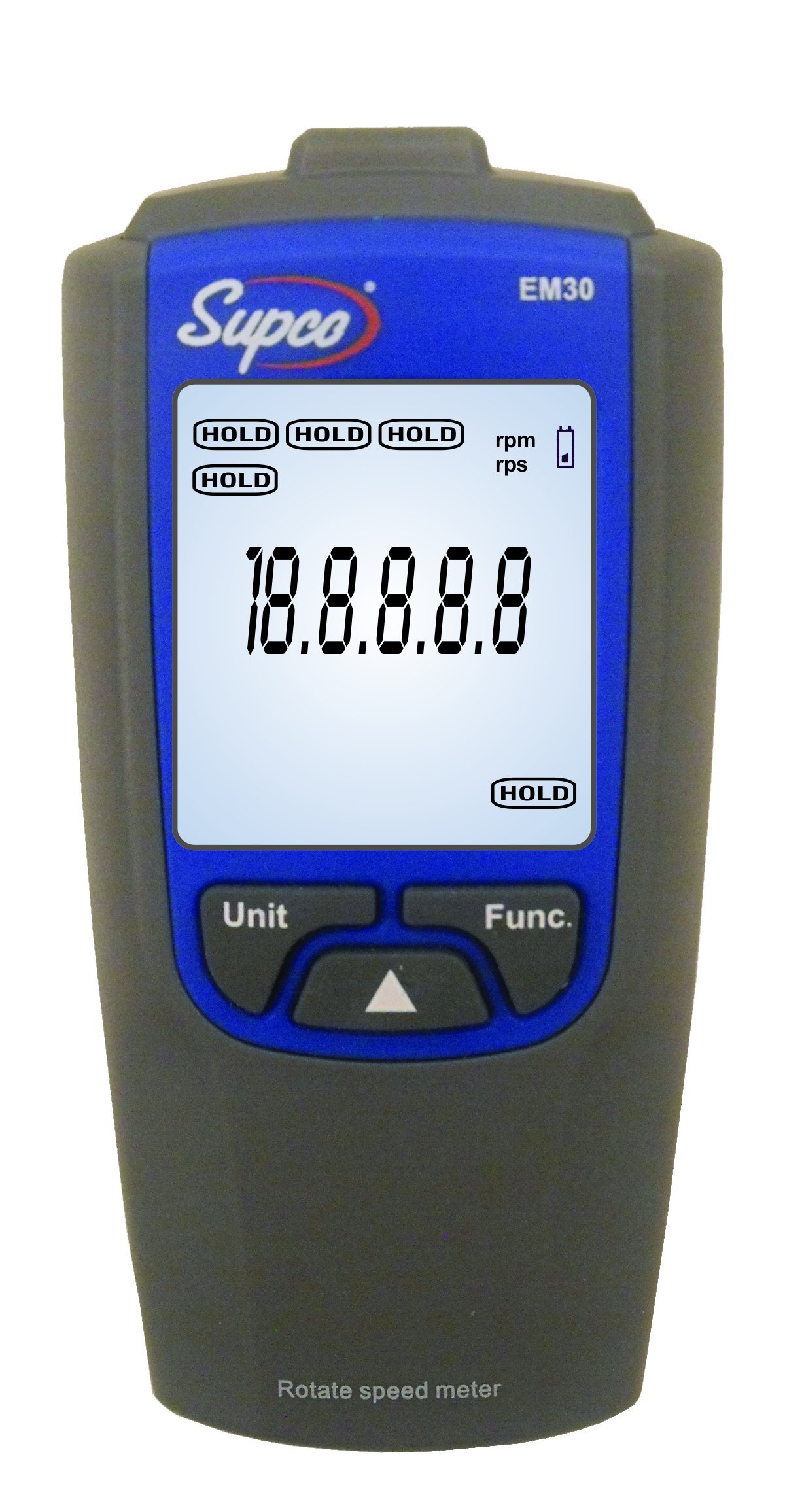

Supco EM30 Tachometer, 2.4" Length x 1.2" Width x 4.7" Height, 100 to 30000 rpm

Be the first to review this item

ASIN B00571LSPS

Specifications for this item
Number of Items
1
Overall Height
4-11/16  inches
Overall Width
1-3/16  inches
Part Number
EM30
Item Weight
0.39 pounds
UPC
687152215898
Brand Name
Supco
EAN
0687152215898
UNSPSC Code
41112802
Overall Length
2-25/64  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 5 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Portable noncontact tachometer for measuring the speed of motors, conveyor belts, and other moving and rotational systems
  • Measures from 100 to 30,000rpm with accuracy to +/-0.02%
  • Takes noncontact measurements in rpm and rps using a laser beam that works at a distance from 4 to 16 inches for user safety
  • Six-digit LCD screen presents test results and the unit of measurement, and backlighting improves contrast in low-light conditions and helps eliminate light reflections
  • CE mark indicates compliance with applicable EU directives

Package Details

Shipping Weight: 1 pounds
Package Size: 9.2 x 8.5 x 2.1 inches

Product Description

The Supco EM30 portable noncontact tachometer measures from 100 to 30,000rpm, has a laser beam, and a six-digit LCD screen. This portable noncontact tachometer is used for measuring the speed of motors, conveyor belts, and other moving and rotational systems. It measures from 100 to 30,000rpm with accuracy to + or - 0.02%, and it takes noncontact measurements in rpm and rps using a laser beam that works at a distance from 4 to 16 inches for user safety. The six-digit LCD screen presents test results and the unit of measurement, and backlighting improves contrast in low-light conditions and helps eliminate light reflections. The device stores maximum and minimum test result values for ease of data recall, and automatically shuts off after two minutes of inactivity to help preserve battery life. A cover protects the sensor from damage. The CE mark indicates compliance with applicable EU directives. It comes with reflective tape, a lanyard, three AAA batteries, and instructions. This tachometer is suitable for measuring rotational speed in mechanical or industrial engineering environments.

Specifications
Noncontact range100 to 30,000rpm
Noncontact accuracy+/-0.1% for 100 to 999.9rpm; +/-0.02% for 10,000 to 30,000rpm
Resolution0.1rpm for 100 to 999.9rpm; 1rpm for 1,000 to 30,000rpm; 0.1rps for 1.7 to 100rps; 1rps for 100 to 500rps
Operating distance4 to 16"
Display6 digits
Power(3) AAA batteries
Dimensions4.7 x 2.4 x 1.2 inches/121 x 60 x 30mm (H x W x D)
Weight6.3 oz./180g

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Tachometers measure the rate of rotation or surface speed of motors, conveyor belts, and other moving systems. Contact tachometers take measurements through direct contact with the moving surface, and can measure both rpm and surface speed. Typically, contact tachometers come with a range of attachments that can be used to measure speed on different kinds of rotary systems, which may include tips used for measuring shafts with a central hole or flat end surfaces, and rotary wheels for measuring conveyor belts. Noncontact tachometers take measurements from a distance using a beam of infrared light, and provide highly accurate measurements. Contact tachometers are an excellent choice for dirty and dusty environments; noncontact tachometers only calculate rpm but are considered safer because they do not require the operator to be in close contact with the moving surface. Contact/noncontact tachometers, also known as dual, or combination tachometers, can be used to take contact and noncontact measurements. Some tachometers can also take other types of measurements, such as count or frequency, while others can output data to a computer for analysis. Tachometers are used in applications such as automobile maintenance, mechanical engineering, and maintenance of industrial equipment.

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.

What's in the Box?
  • Supco EM30 portable noncontact tachometer
  • Reflective tape
  • Lanyard
  • (3) AAA batteries
  • Instructions
