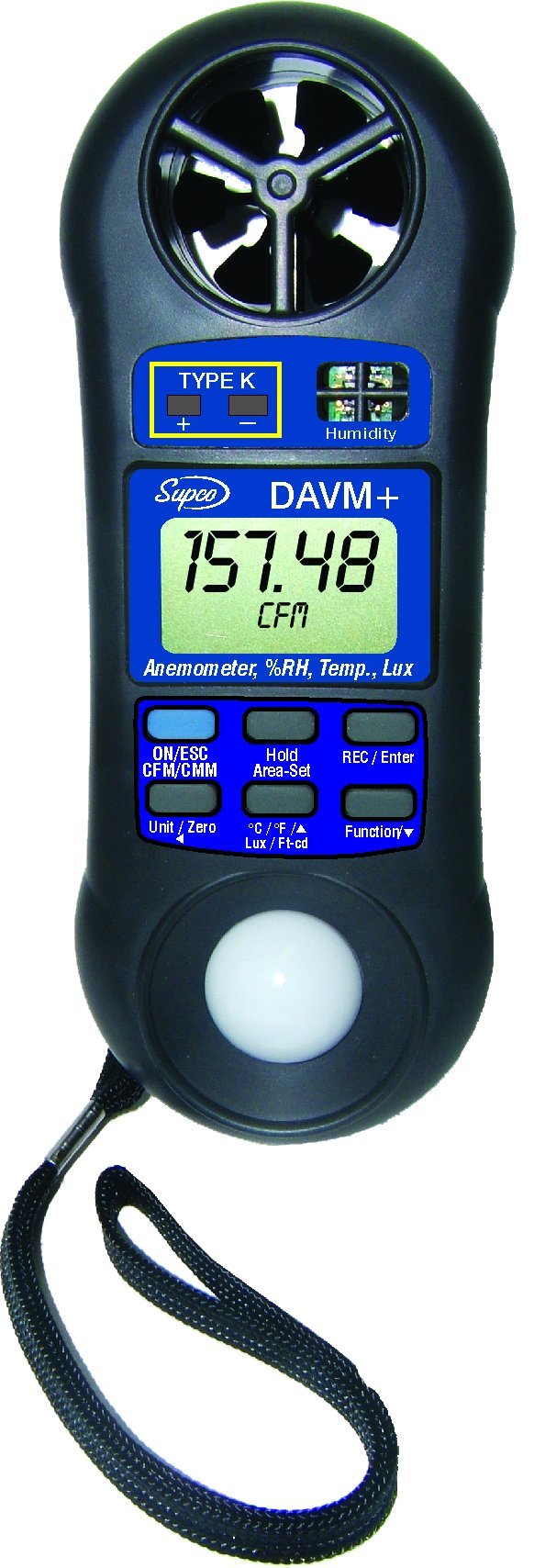

Supco DAVM+ Digital Air Flow Meter, Vane Anemometer, Thermometer, Hygrometer, Light Meter

Be the first to review this item

ASIN B004OMAW8K

Specifications for this item
Number of Items
1
Overall Height
6-1/8  inches
Overall Width
1-9/32  inches
Part Number
DAVM+
Item Weight
0.35 pounds
UPC
687152196395
Brand Name
Supco
EAN
0687152196395
UNSPSC Code
41114401
Overall Length
2-23/64  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 11 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Vane anemometer measures air velocity in m/s, fpm, knots, mph, and km/h; air flow volume in cfm and cmm; air temperature in degrees C and F; humidity in % RH; and light in lux or fc
  • Data record function records readings and displays maximum and minimum values
  • Hold function freezes a reading on the display to aid documentation
  • Thin-film capacitance humidity sensor responds promptly to changes in humidity and thermistor sensor measures ambient air temperature
  • LCD shows air velocity, temperature, and humidity readings simultaneously

Package Details

Shipping Weight: 0.65 pounds
Package Size: 8.8 x 4.1 x 2.6 inches

Product Description

The Supco DAVM+ digital air flow meter combines a vane anemometer, thermometer, hygrometer, and light meter for measuring air velocity in m/s, fpm, knots, mph, and km/h, air flow volume in cfm and cmm; air temperature in degrees C and F; humidity in % RH; and light in lux or fc; and has data record and hold functions for analyzing air flow. Data record function records readings and displays maximum and minimum values, and hold function freezes a reading on the display to aid documentation. A thin-film capacitance humidity sensor responds promptly to changes in humidity and a thermistor sensor measures ambient air temperature. The meter has a Type K thermocouple input jack for attaching a separate temperature probe (sold separately) to increase the range of temperature measurement. The LCD shows air velocity, temperature, and humidity readings simultaneously. The meter turns off automatically after 10 minutes of non-use to conserve battery life and has a low-battery indicator. This anemometer is used for monitoring indoor air quality and tracking air flow and temperature in ductwork, spray booths, and exhaust hoods, among other applications.

Specifications
Air velocity range0.4 to 30.0 m/s; 80 to 5,910 fpm; 0.8 to 58.3 knots; 0.9 to 67.0 mph; 1.4 to 108.0 km/h
Air velocity resolution0.1 m/s; 1 fpm; 0.1 knots; 0.1 mph; 0.1 km/h
Air velocity accuracy+ or - 3% of full scale/+ or - 4% of full scale at > 20 m/s
Maximum air flow volume1,908,400 cfm/54,000 cmm
Air temperature range0 to 50 degrees C/32 to 122 degrees F
Humidity range10 to 95 % RH
Light range0 to 20,000 lux/0 to 2,000 fc
Operating environment0 to 50 degrees C/32 to 122 degrees F at up to 80% relative humidity
Power(1) 9V battery (sold separately)
Dimensions (H x W x D)156 x 60 x 33 mm/6.13 x 2.36 x 1.29 inches
Weight160 g/5.6 oz.

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Anemometers, also called wind meters, measure air velocity and are most commonly used for weather monitoring to determine wind speed and for HVAC applications to determine air flow within ducts. In addition to air velocity, anemometers may measure wind direction, air pressure, air flow volume, air temperature, humidity, light, and other properties. The most common types of anemometer are cup, vane, hot-wire, and Pitot tube. Cup and vane anemometers calculate air velocity based on the number of rotations of the cups or vane. Hot-wire anemometers calculate air velocity by measuring the change in electrical resistance as air flow cools a heated wire. Pitot tube anemometers measure air pressure within a tube and calculate air velocity based on the difference in pressure between the air inside and outside of the tube. Many anemometers have digital readouts and can display air velocity readings in different units of measure, such as meters per second (m/s), feet per minute (ft./min. or fpm), knots, miles per hour (mph), and kilometers per hour (km/h).

Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.

What's in the Box?
  • Supco DAVM+ digital air flow meter
  • Soft carrying case
  • Instructions
