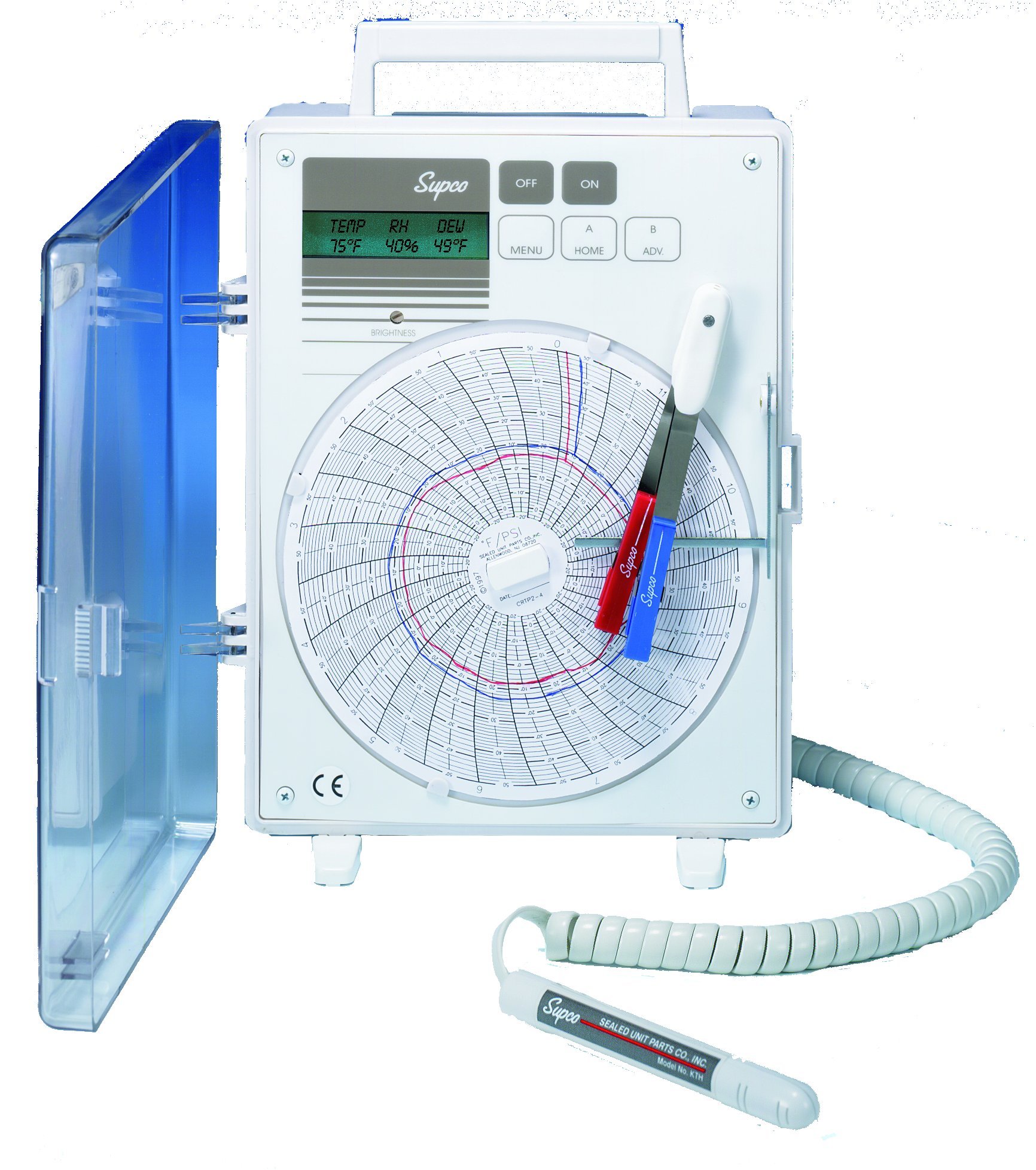

Supco CR4220 Universal Circular Chart Recorder, 6" Chart Diameter, 220 VAC

Be the first to review this item


Product Specifications
Maximum Measurement
0/220 VAC
Number of Items
Part Number
0/220 VAC
Size Name
6" Chart Diameter
Style Name
Specification for this product family (See all  products)
Outside Diameter
6"/152  millimeters
Brand Name

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 10 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Automatic Probe recognition
  • Front panel touch pad: Real Time data view, Battery backup (CR4), Field replaceable probes
  • Field calibration of probes
  • Independent Channel Alarms (CR4)
  • 48 Hours continuous battery life

Package Details

Shipping Weight: 3.95 pounds
Package Size: 13.1 x 8.6 x 5.2 inches

Product Description

The CR4 6 inch Universal Chart Recorder offers the ultimate in flexibility. When your application calls for a different sensor, just change probes for the same recorder. Chart Diameter: 6 inches. Chart rotation mode: continuous or single turn. Chart Rotation Speed: 1.5, 3, 6, 12 and 24 hrs, 7 and 31 days. Chart Speed Accuracy: +/- 1 percent. Charts: 60 assorted included. Display: LCD (2 line). Temperature Alarm Range: -20 degree F to 120 degree F (-30 degree C to 50 degree C). Relative Humidity Alarm Range: 0 to 95 percent (Non-Condensing). Pressure Alarm Range: 0 to 500 PSI ( 0 to 35 Bar). Alarm Delay: no delay, 10 mins, 30 mins, 1 hr or 2 hrs. Remote Alarm Connection: no, 48 VAC/DC, 0.1 A resistive load. Operating Temperature: 32 degree F to 120 degree F (0 degree C to 49 degree C). Primary Power: 230 VAC, 50/60 Hz. Alternate Power: 12 V vehicle operation (need optional adapter). Battery backup: 8 AA alkaline batteries. Battery Life: 48 hrs continuous.
