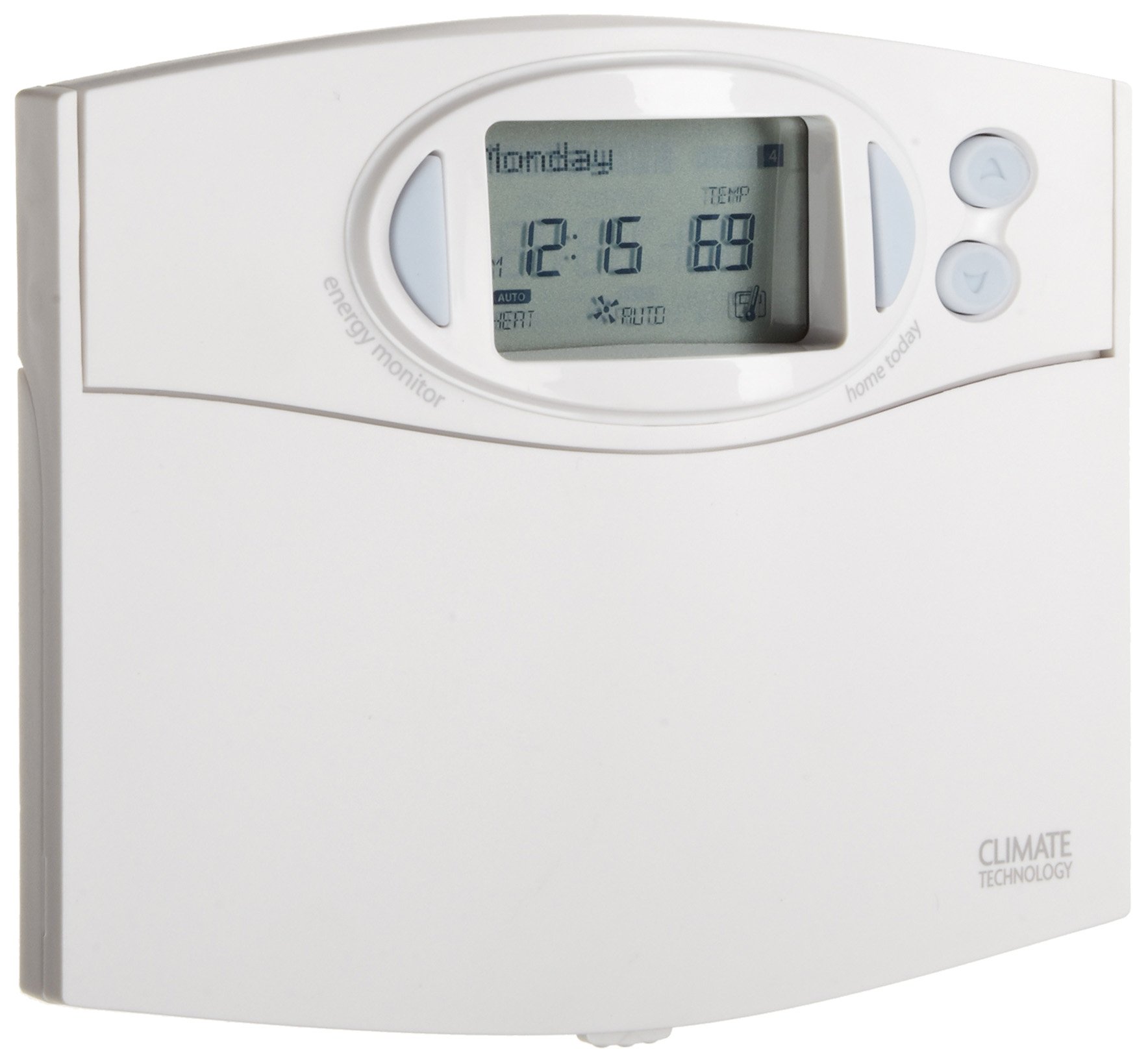

Supco 43665 Programmable Wall Thermostat with Auto Season Changeover, 45 to 95 Degree F, 20-30 VAC

Be the first to review this item


Specifications for this item
Number of Items
Overall Height
5-1/8  inches
Overall Width
6-1/8  inches
Part Number
Item Weight
1 pounds
Item Depth
1-1/2 inches
Brand Name

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Pre-programmed with easy to change presets
  • Programmable fan
  • Keyboard lock
  • Energy and filter use monitors
  • Measures 6-1/8" width by 5-1/8" height by 1-1/2" depth, 3 year warranty

Package Details

Shipping Weight: 1.2 pounds
Package Size: 8.7 x 5.6 x 2.6 inches

Product Description

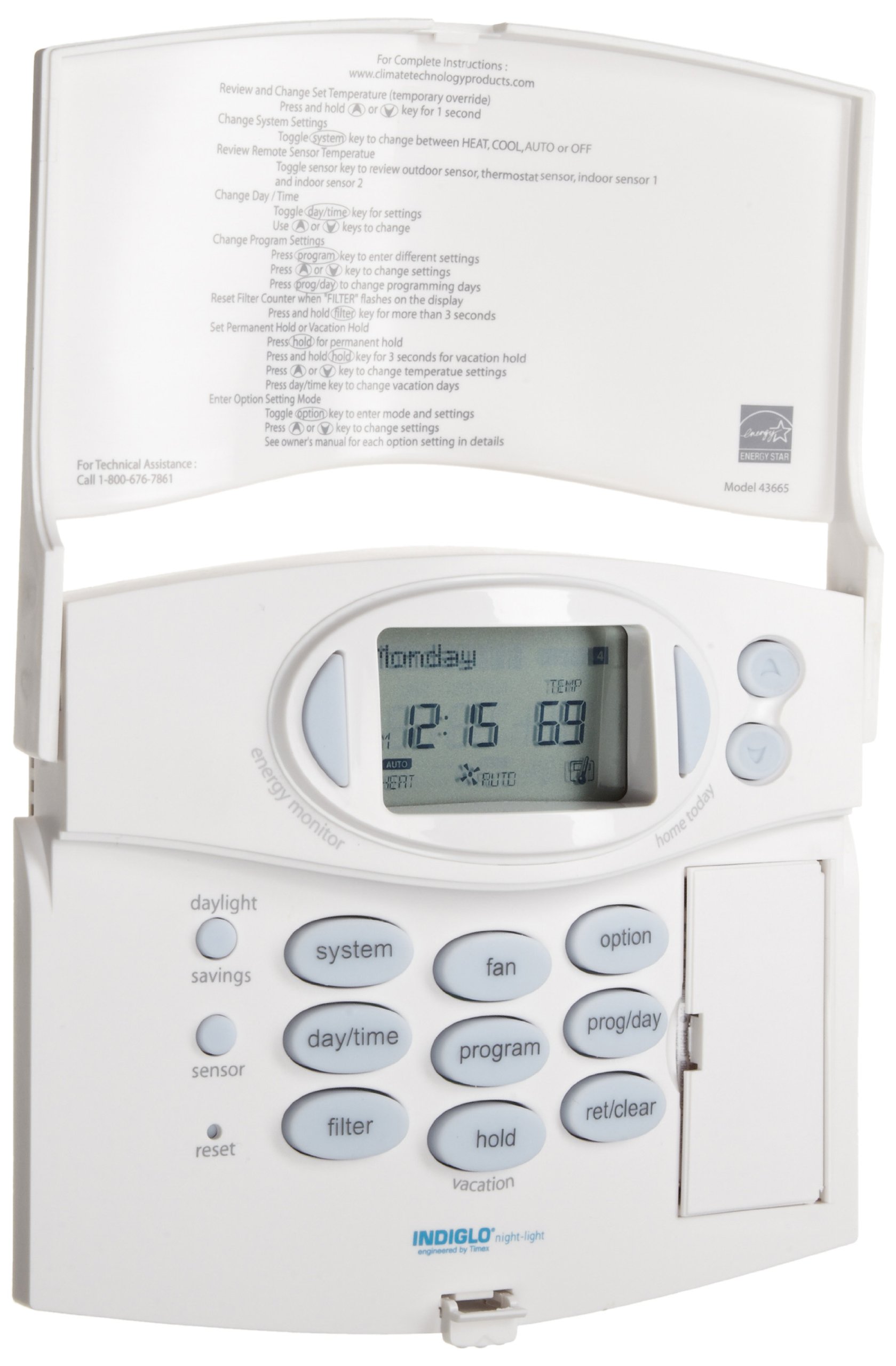

7 Day programming, 4 programs per day and optional remote sensing. Pre-pregrammed with easy to change presets. Programmable fan. Keyboard lock. Energy and filter use monitors. Patented Home Today temporary override. Temporary and vacation hold overide with programmable hold. Daylight saving key. Tri-lingual English, Spanish, French display. Mechanical low temperature protection. Compatible with most: single-stage heat pumps. Terminations: G, W/B, Y/O,R/C, RC1, RH, Y1. Remote sensor terminations: wireless. Latching relays for system compatibility. Soft touch keypad. Low battery indicator. Indiglo Backlight. Easy, front load battery access. 2 AA batteries included. Are compatible with: 24 VAC heat/cool, Heat only or cool only systems. gas, electric or oil systems, millivolt systems, 2 wire hydronic systems (Not for use with 110/220V systems). Have These Specifications: 20-30 VAC, 50/60 Hz, Current draws 0.1 to 1.5 amps, Temperature set range: 45 - 95 degrees Fahrenheit. Operating differential +/- 1 degrees Fahrenheit. Compressor protection: 4 min. delay on break. Measures 6-1/8" width by 5-1/8" height by 1-1/2" depth, 3 year warranty.
