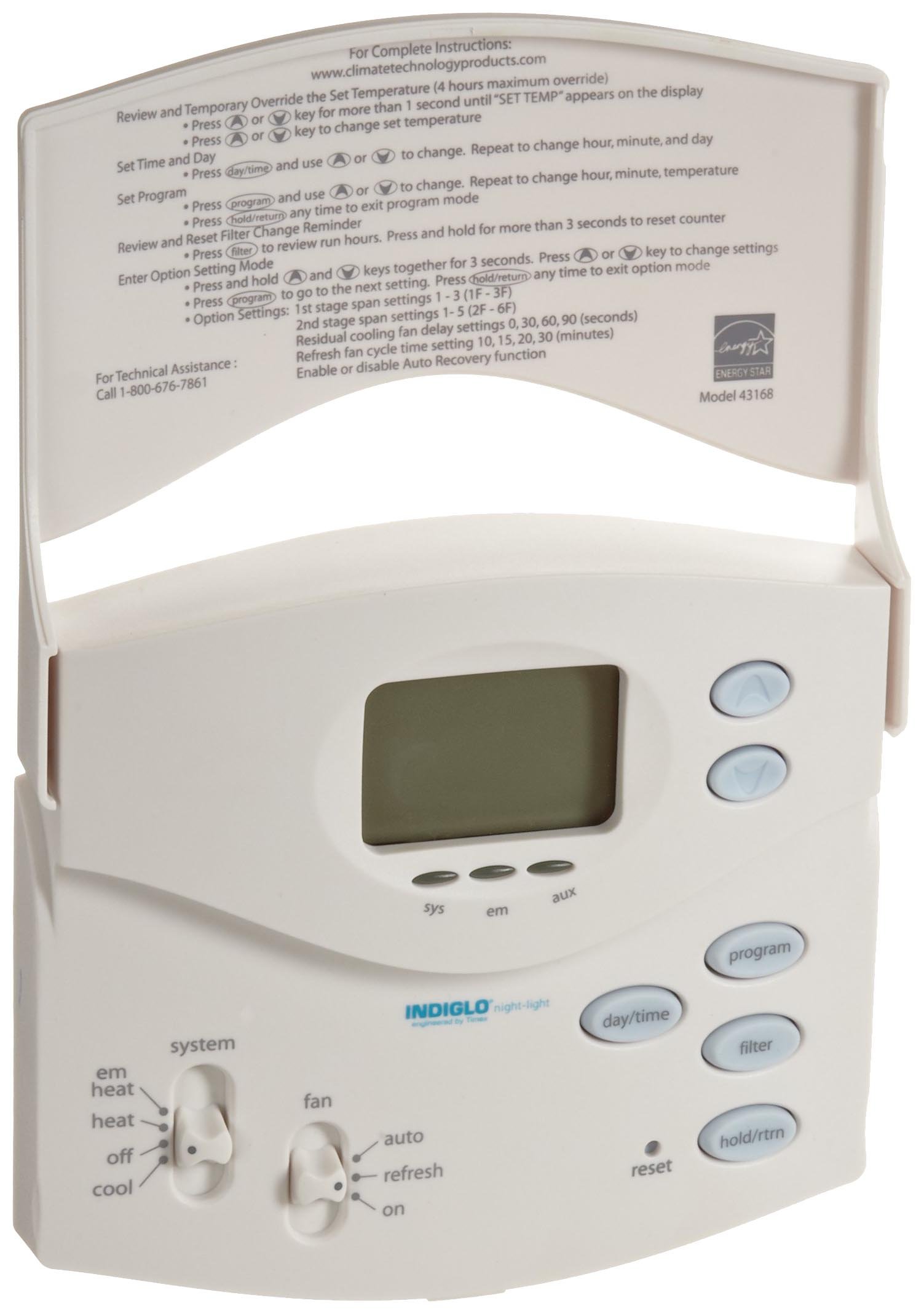

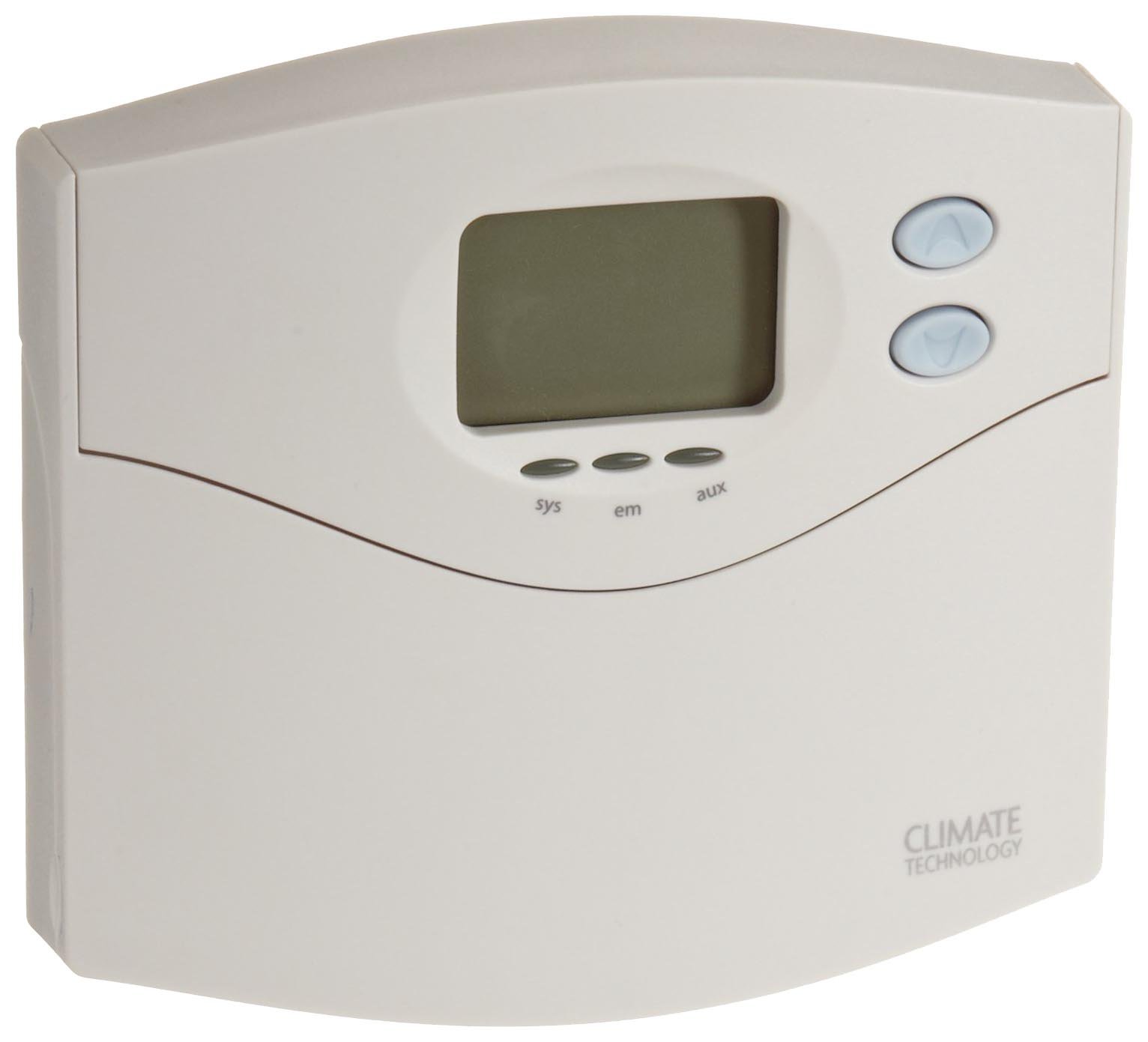

Supco 43168 Programmable Multi Stage Heat Pump Thermostat, 45 to 95 Degree F, 20-30 VAC

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, May 5? Order in-stock items in the next 6 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Blue back light
  • Filter monitor
  • AC powered with non-volatile settings-no batteries required
  • Refresh programmable fan mode
  • 3 year warranty

Package Details

Shipping Weight: 0.8 pounds
Package Size: 6.7 x 5.1 x 2.4 inches

Product Description

5 Day/2 day, 5-1-1 day or 7 day programmable multi stage heat pump thermostat. Blue back light. Filter Monitor. AC powered with non-volatile. settings-no batteries required. Refresh programmable fan mode. Residual cooling fan delay, user selectable. Adjustable 1st and 2nd stage span adjustment. Staging timer. Heat/Cool auto cutoff. Bi-metal freeze protection. Pre-Programmed. Easy Front Load battery case. Latching relay outputs. Most Compatible With Two-stage heat pumps with 2 heat/2 cool, gas or electric auxiliary heat Two-stage heat pumps with 2 heat/1 cool, gas or electric auxiliary heat Single-stage heat pumps Not for use with 110V/220V systems. Terminations: R, B, W2, E, G,O, Y2, Y1, L, C. 5 Day/2 Day, 5-1-1 Day or 7 Day programmable multi stage heat pump thermostat. Latching relays for system compatibility. Soft touch keypad. Low battery indicator. Indiglo Backlight. Easy, front load battery access. 2 AA batteries included. Are compatible with: 24 VAC heat/cool, Heat only or cool only systems. gas, electric or oil systems, millivolt systems, 2 wire hydronic systems (Not for use with 110/220V systems). Have These Specifications: 20-30 VAC, 50/60 Hz, Current draws 0.1 to 1.5 amps, Temperature set range: 45 - 95 degrees Fahrenheit. Operating differential +/- 1 degrees Fahrenheit. Compressor protection: 4 min. delay on break. 3 year warranty.
