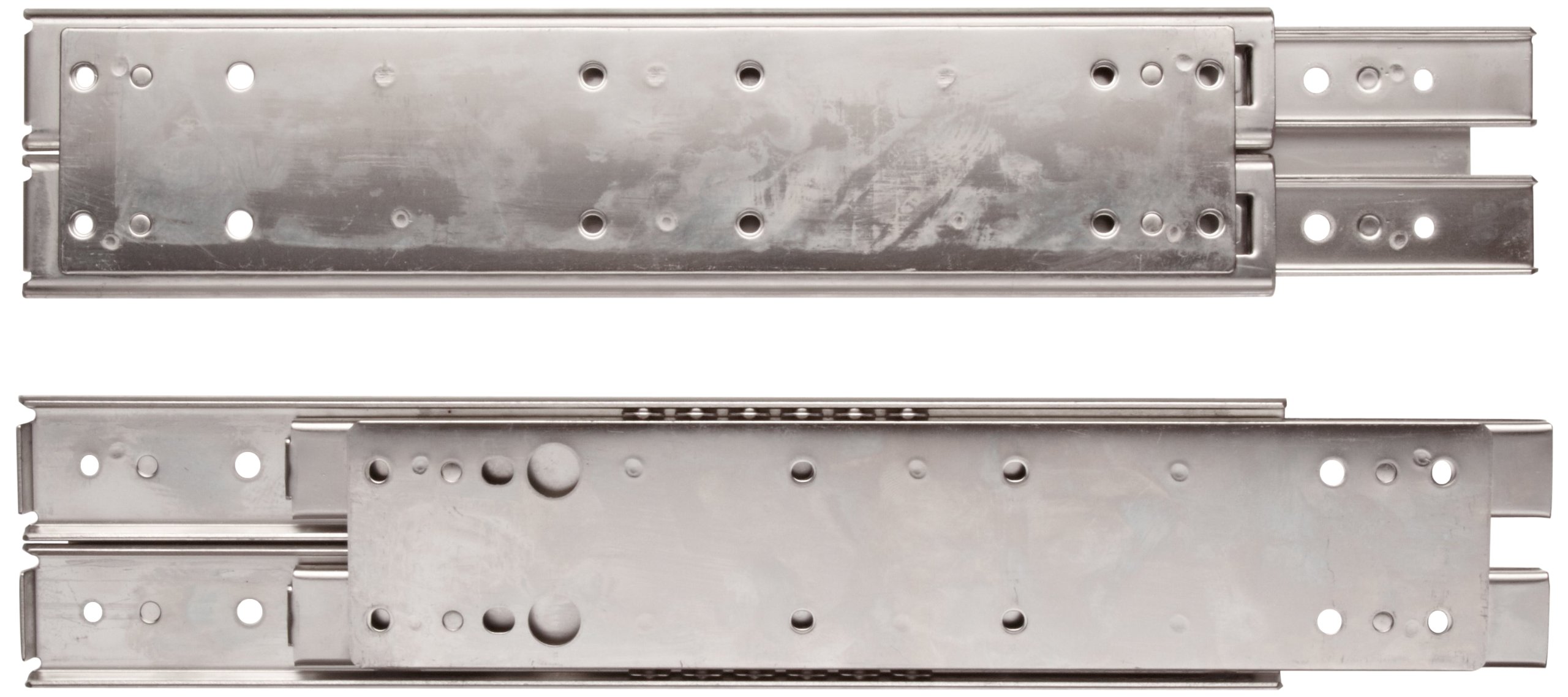

Sugatsune ESR-5 304 Stainless Steel Drawer Slide, 3/4 Extension, Positive Stop (1 Pair)

Be the first to review this item

Product Specifications
Overall Height
1/2  inches
Number of Items
Overall Width
2-13/16  inches
Material Type
Stainless Steel
Part Number
Brand Name
LAMP by Sugatsune
Manufacturer Series Number
Mounting Type
Side mount
Mechanical Life Expectancy
50000  cycles

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 13 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Closed length string Slide travel distance string Load capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-9 of 9
12 inches 8-47/64 inches 251 pounds B005ESLNSG yes $174.00 Buy Options
14 inches 10-15/64 inches 240 pounds B005ESLOYE yes $146.35 Buy Options
16 inches 11-47/64 inches 229 pounds B005ESLPU2 yes $159.77 Buy Options
18 inches 13-47/64 inches 224 pounds B005ESLR8W yes $260.00 Buy Options
20 inches 14-15/64 inches 218 pounds B005ESLSFO yes $280.00 Buy Options
22 inches 16-47/64 inches 207 pounds B005ESLTJ4 yes $76.33 Buy Options
24 inches 17-47/64 inches 196 pounds B005ESLUA2 yes $372.00 Buy Options
26 inches 18-15/64 inches 189 pounds B005ESLV42 yes $253.92 Buy Options
28 inches 19-47/64 inches 176 pounds B005ESLVQU yes $264.22 Buy Options

Key Features

  • Stop type: positive stop
  • Release type: no release
  • Screw size: mount with M4 or #8 binding, Pan, or Truss head screws
  • 304 Stainless steel outer and inner rail, retainer, balls

Product Description

3/4 Extension drawer slides. Positive stop. Non-handed. Heavy duty. Number of holes: 6 inner and 8 outer rail.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
