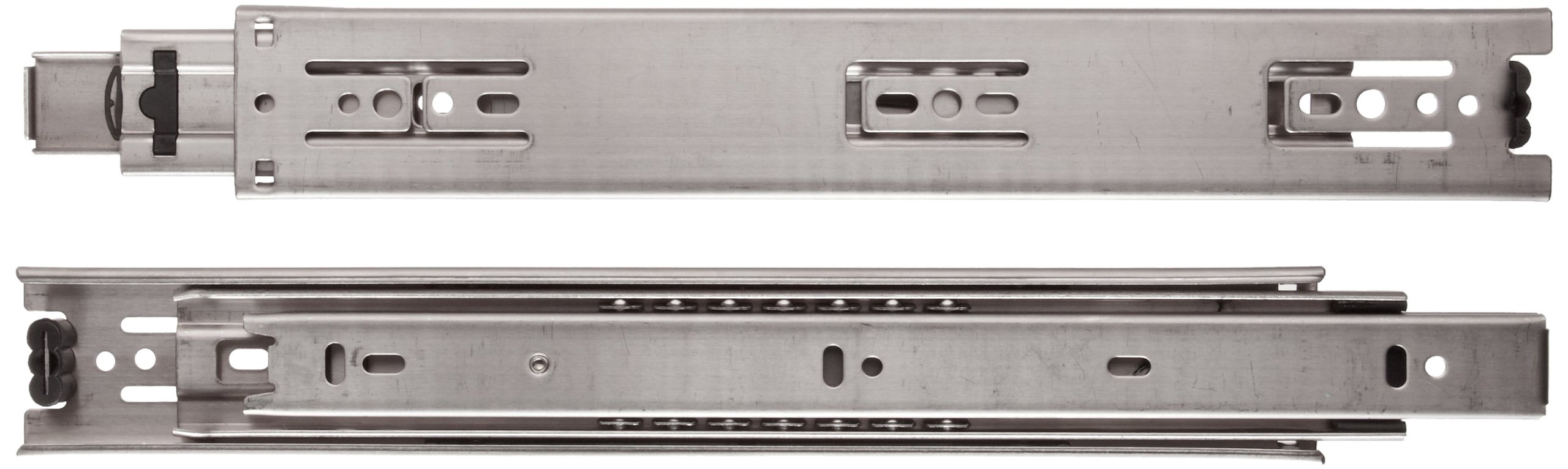

Sugatsune ESR-4513 304 Stainless Steel Drawer Slide, Full Extension, Positive Stop (1 Pair)

Be the first to review this item

Product Specifications
Overall Height
1/2  inches
Number of Items
Overall Width
1-3/4  inches
Material Type
Stainless Steel
Part Number
Brand Name
LAMP by Sugatsune
Manufacturer Series Number
Mounting Type
Side mount
Mechanical Life Expectancy
50000  cycles

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 4 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Closed length string Slide travel distance string Load capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-10 of 10
11.8125 inches 12 inches 111 pounds B005ESLFWK yes $31.00 Buy Options
13.78125 inches 14 inches 108 pounds B005ESLH6Y yes $36.00 Buy Options
15.75 inches 16 inches 104 pounds B005ESLI18 yes $40.80 Buy Options
17.78175 inches 18 inches 100 pounds B005ESLJDA yes $45.60 Buy Options
19.6875 inches 20 inches 97 pounds B005ESLL0Q yes $39.32 Buy Options
21.65625 inches 22 inches 95 pounds B005ESLLII yes $56.30 Buy Options
23.625 inches 24 inches 92 pounds B005ESLLPG yes $62.10 Buy Options
25.59375 inches 26 inches 90 pounds B005ESLMDC yes $67.00 Buy Options
27.5625 inches 28 inches 87 pounds B005ESLMQO yes $72.80 Buy Options
9.84375 inches 9-9/16 inches 115 pounds B005ESLEI0 yes $26.20 Buy Options

Key Features

  • Stop type: positive stop
  • Release type: lever release
  • Non-handed, hold-in detent, full extension
  • Screw size: mount with M4 or #8 binding, pan, or truss head screws
  • 304 Stainless steel outer rail, inner rail, retainer, intermediate member and balls

Product Description

Full extension drawer slides. Front disconnect. Positive stop. Non-handed. Hold-in detent. Sold in pairs.
