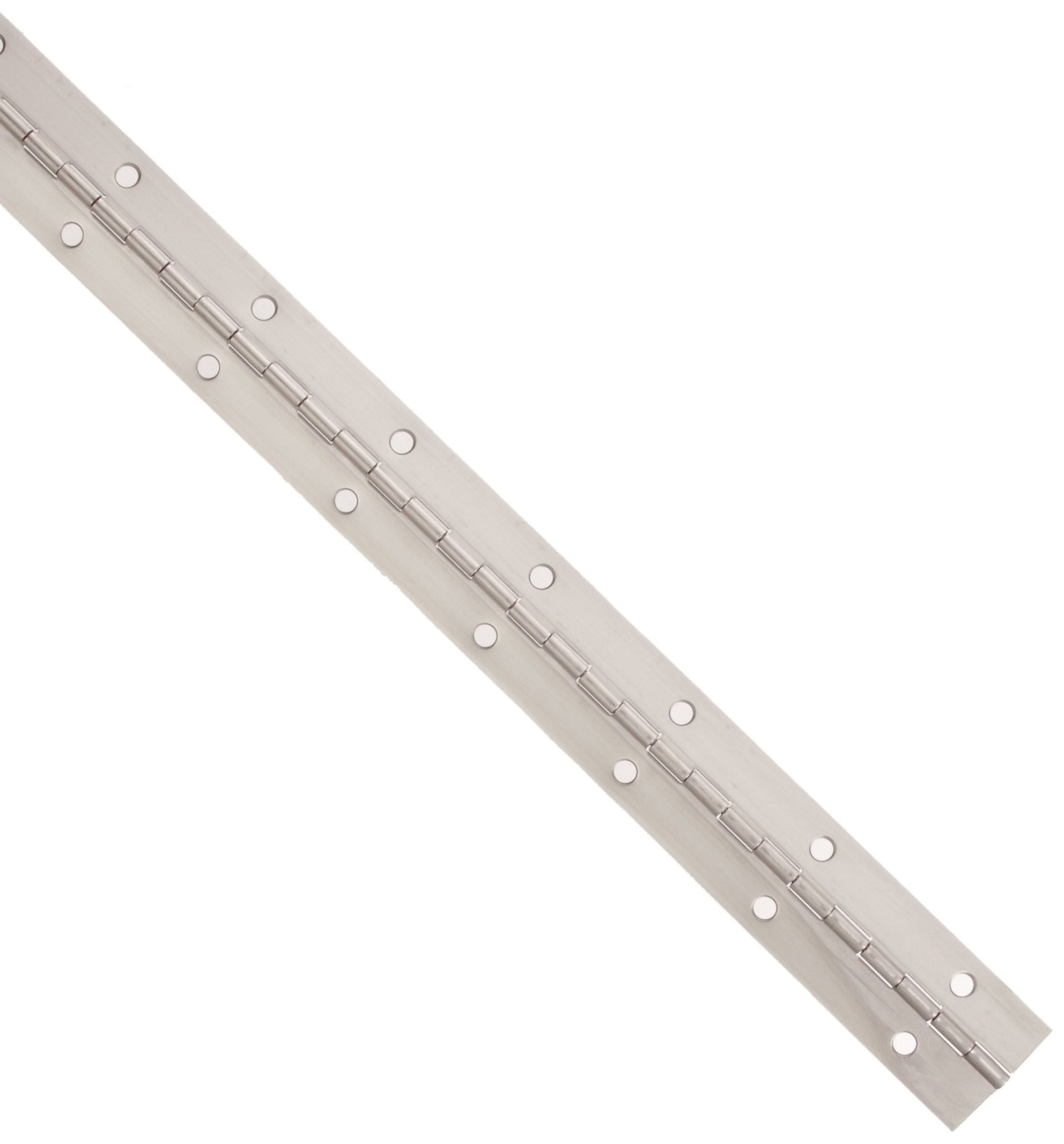

Steel Continuous Hinge With Holes, Nickel Pre-plated Finish

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Nickel Pre-Plated
Mounting Type
Surface Mount
Material Type
Steel
Style Name
With Holes
UNSPSC Code
31162403
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 16 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Leaf Thickness Open Width Pin Diameter Knuckle Length Screw Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-15 of 15
0.04" 1-1/2" 5/64" 1/2" #6 8 ft 1 B007HBY6PA yes $15.95 Buy Options
0.04" 1-1/4" 5/64" 1/2" #5 8 ft 1 B007HBY82G yes $16.58 Buy Options
0.04" 1-1/4" 5/64" 1/2" #5 7 ft 1 B007HBY7PY yes $15.72 Buy Options
0.04" 1-1/4" 5/64" 1/2" #5 5 ft 1 B007HBY7CW yes $15.49 Buy Options
0.04" 2" 5/64" 1/2" #6 8 ft 1 B007HBYAII yes $18.32 Buy Options
0.04" 2" 5/64" 1/2" #6 7 ft 1 B007HBY9LG yes $16.71 Buy Options
0.04" 2" 5/64" 1/2" #6 5 ft 1 B007HBY98Y Temporarily out of stock. Order now and we'll deliver when available. $14.67 Buy Options
0.04" 2" 5/64" 1/2" #6 4 ft 1 B007HBY8SK yes $12.50 Buy Options
0.04" 1-1/2" 5/64" 1/2" #6 4 ft 1 B007HBY5PQ yes $9.07 Buy Options
0.04" 1-1/2" 5/64" 1/2" #6 7 ft 1 B007HBY6E6 yes $12.56 Buy Options
0.04" 1-1/2" 5/64" 1/2" #6 5 ft 1 B007HBY646 yes $15.15 Buy Options
0.04" 2" 5/64" 1/2" #6 6 ft 1 B005QSMTW8 yes $14.56 Buy Options
0.04" 1-1/2" 5/64" 1/2" #6 6 ft 1 B005QSMSXI yes $14.13 Buy Options
0.04" 1-1/16" 5/64" 1/2" #4 6 ft 1 B005QSMRZC yes $11.32 Buy Options
0.04" 1-1/4" 5/64" 1/2" #5 6 ft 1 B005QSMSGK yes $12.23 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as cabinet lids, folding partitions, and metal storage cabinets
  • Cold rolled steel 1008 is stronger than aluminum, rust resistant, and weldable
  • Countersunk holes for convenience when mounting
  • Nickel pre-plated finish for additional strength, corrosion resistance, and a shiny decorative quality

Product Description

The cold rolled steel 1008 continuous hinge has countersunk holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as cabinet lids, folding partitions, and metal storage cabinets. Cold rolled steel 1008 is stronger than aluminum, rust resistant, and weldable, but is does not provide the same strength as stainless steel. The nickel pre-plated finish provides additional strength, corrosion resistance, and a shiny decorative quality. This pre-plated hinge is dipped in a finishing material before holes are drilled. This leaves the insides of the holes unfinished and less resistant to corrosion. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
