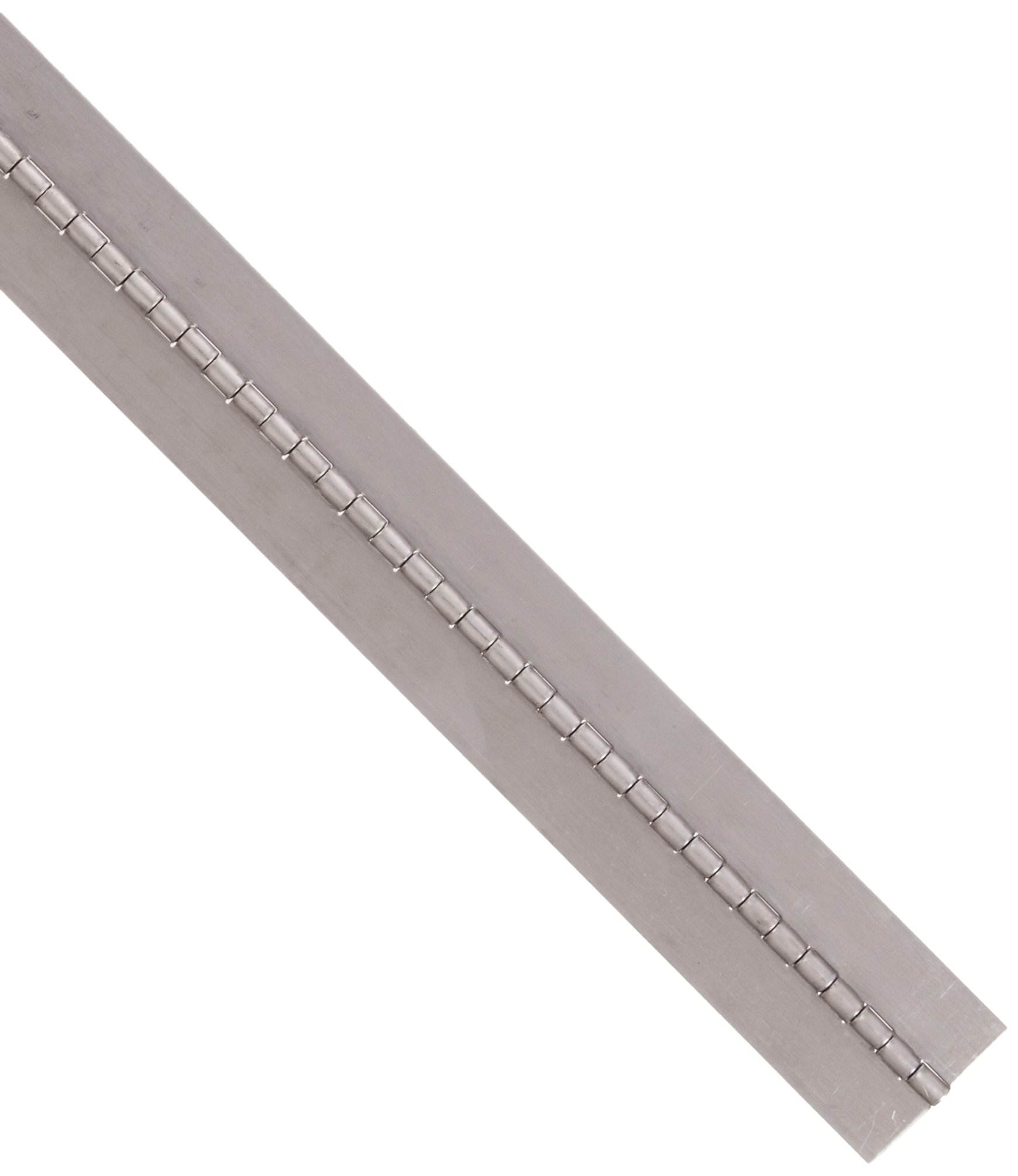

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Steel Continuous Hinge Without Holes, Unfinished

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Unfinished
Mounting Type
Surface Mount
Material Type
Steel
UNSPSC Code
31162403
Style Name
Without Holes
Screw Size
N/A
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 4? Order in-stock items in the next 2 days 23 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 313 Next 20 »
Leaf Thickness Open Width Pin Diameter Knuckle Length Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 313 Next 20 »
0.035" 3/4" 1/16" 1/4" 8 ft 1 B00689160A yes $17.16 Buy Options
0.035" 3/4" 1/16" 1/4" 5 ft 1 B0068912HC yes $12.80 Buy Options
0.035" 2" 5/64" 1/4" 6 ft 1 B005QSJB8S yes $10.84 Buy Options
0.035" 1-3/64" 1/16" 1/4" 8 ft 1 B006891B78 yes $18.77 Buy Options
0.035" 1-3/64" 1/16" 1/4" 5 ft 1 B0068919IE Usually ships in 2 to 3 weeks $13.46 Buy Options
0.035" 1-3/64" 1/16" 1/4" 4 ft 1 B0068917V8 Usually ships in 2 to 3 weeks $11.76 Buy Options
0.035" 1-1/4" 1/16" 1/4" 8 ft 1 B006891I80 Usually ships in 2 to 3 weeks $19.61 Buy Options
0.035" 1-1/4" 1/16" 1/4" 4 ft 1 B006891DOY yes $12.33 Buy Options
0.035" 1-1/4" 1/16" 1/4" 5 ft 1 B006891G6E yes $15.49 Buy Options
0.035" 1-1/2" 1/16" 1/4" 8 ft 1 B006891QB4 Usually ships in 2 to 3 weeks $22.12 Buy Options
0.035" 1-1/2" 1/16" 1/4" 5 ft 1 B006891O8Y yes $17.41 Buy Options
0.035" 1-1/2" 1/16" 1/4" 4 ft 1 B006891MQI Usually ships in 2 to 3 weeks $13.16 Buy Options
0.035" 1-1/16" 5/64" 1/4" 6 ft 2 B005QSQH7G Temporarily out of stock. Order now and we'll deliver when available. $14.10 Buy Options
0.035" 1-1/4" 5/64" 1/4" 6 ft 2 B005QSQIAM yes $14.03 Buy Options
0.035" 1-1/2" 5/64" 1/4" 6 ft 2 B005QSQJ7E yes $13.22 Buy Options
0.04" 1-1/4" 5/64" 1/2" 8 ft 1 B006891ZRE Usually ships in 2 to 3 weeks $20.60 Buy Options
0.04" 1-1/2" 5/64" 1/2" 8 ft 1 B0068925FA Usually ships in 2 to 3 weeks $22.06 Buy Options
0.04" 1-3/64" 5/64" 1/2" 8 ft 1 B006891T5W Usually ships in 2 to 3 weeks $16.95 Buy Options
0.04" 1-3/64" 5/64" 1/2" 5 ft 1 B006891S76 Usually ships in 2 to 3 weeks $12.27 Buy Options
0.04" 1-1/4" 5/64" 1/2" 5 ft 1 B006891XWQ Usually ships in 2 to 3 weeks $15.58 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as cabinet lids, folding partitions, and metal storage cabinets
  • Steel is stronger than aluminum, rust resistant, and weldable
  • No holes allow this hinge to be spot welded in place, or drilled for use with screws and rivets
  • Unfinished for applications with less exposure to corrosive environments

Product Description

The unfinished steel continuous hinge has no holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as cabinet lids, folding partitions, and metal storage cabinets. Steel is a stronger material than aluminum, but does not provide the same strength as stainless steel. It also resists rust and is weldable. This hinge can be customized for various surface-mounting needs because it does not have pre-drilled holes; it must be spot welded in place, or drilled for use with screws and rivets. Because it is unfinished, this hinge is better for use in less corrosive environments. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
