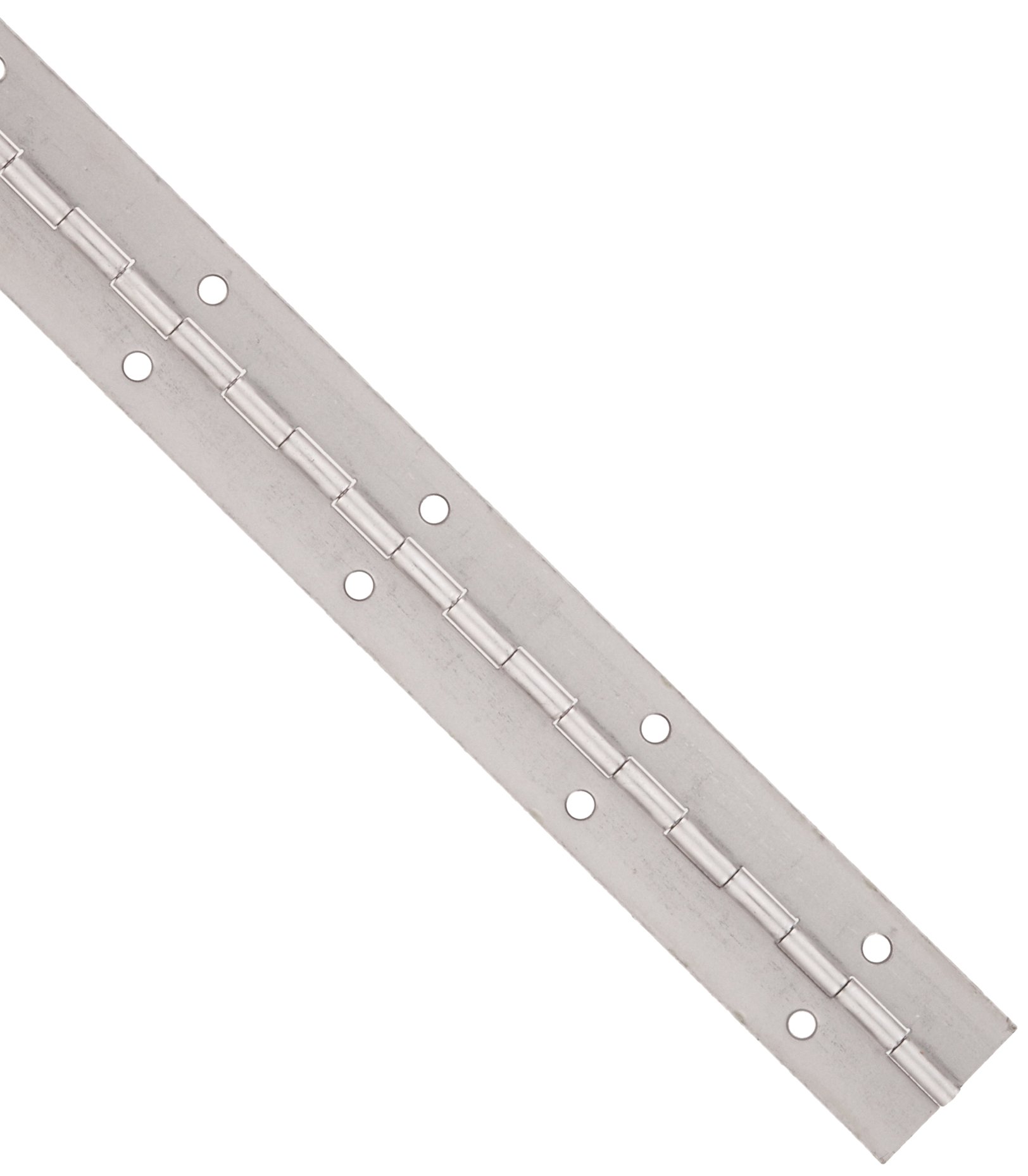

Steel Continuous Hinge With Holes, Unfinished

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Unfinished
Mounting Type
Surface Mount
Material Type
Steel
Style Name
With Holes
UNSPSC Code
31162403
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 9 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Leaf Thickness Open Width Pin Diameter Knuckle Length Screw Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-14 of 14
0.04" 2" 3/32" 1/2" #4 6 ft 1 B005J0W5TA yes $13.48 Buy Options
0.04" 1-1/4" 3/32" 1/2" #4 6 ft 1 B005J0WSWY yes $7.65 Buy Options
0.06" 3" 1/8" 1/2" #6 8 ft 1 B007XZGQ3K yes $19.52 Buy Options
0.06" 2-1/2" 1/8" 1/2" #6 8 ft 1 B007XZGPT0 yes $18.41 Buy Options
0.06" 2-1/2" 1/8" 1/2" #6 7 ft 1 B007XZGPJU yes $97.30 Buy Options
0.06" 2" 1/8" 1/2" #6 4 ft 1 B005J0WAZO yes $8.36 Buy Options
0.06" 1-1/4" 1/8" 1/2" #6 6 ft 1 B005J0W7BQ yes $10.31 Buy Options
0.06" 1-1/4" 1/8" 1/2" #6 4 ft 1 B005J0W86K yes $9.58 Buy Options
0.06" 1-1/2" 1/8" 1/2" #6 6 ft 1 B005J0W8OW yes $16.79 Buy Options
0.06" 3" 1/8" 1/2" #6 6 ft 1 B005J0K5TC yes $17.33 Buy Options
0.06" 3" 1/8" 1/2" #6 4 ft 1 B005J0WE3C yes $8.39 Buy Options
0.06" 2-1/2" 1/8" 1/2" #6 6 ft 1 B005J0K4I4 yes $17.97 Buy Options
0.06" 2-1/2" 1/8" 1/2" #6 4 ft 1 B005J0WDE2 Usually ships in 1 to 2 months $10.41 Buy Options
0.06" 2" 1/8" 1/2" #6 6 ft 1 B005J0W9YG yes $16.91 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as cabinet lids, folding partitions, and metal storage cabinets
  • Steel is stronger than aluminum, rust resistant, and weldable
  • Countersunk holes for convenience when mounting
  • Unfinished for projects with less exposure to corrosive environments

Product Description

The unfinished steel continuous hinge has countersunk holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as cabinet lids, folding partitions, and metal storage cabinets. Steel is a stronger material than aluminum, but does not provide the same strength as stainless steel. It also resists rust and is weldable. Since this hinge is unfinished, it is suited for applications that will not be exposed to corrosive environments. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
