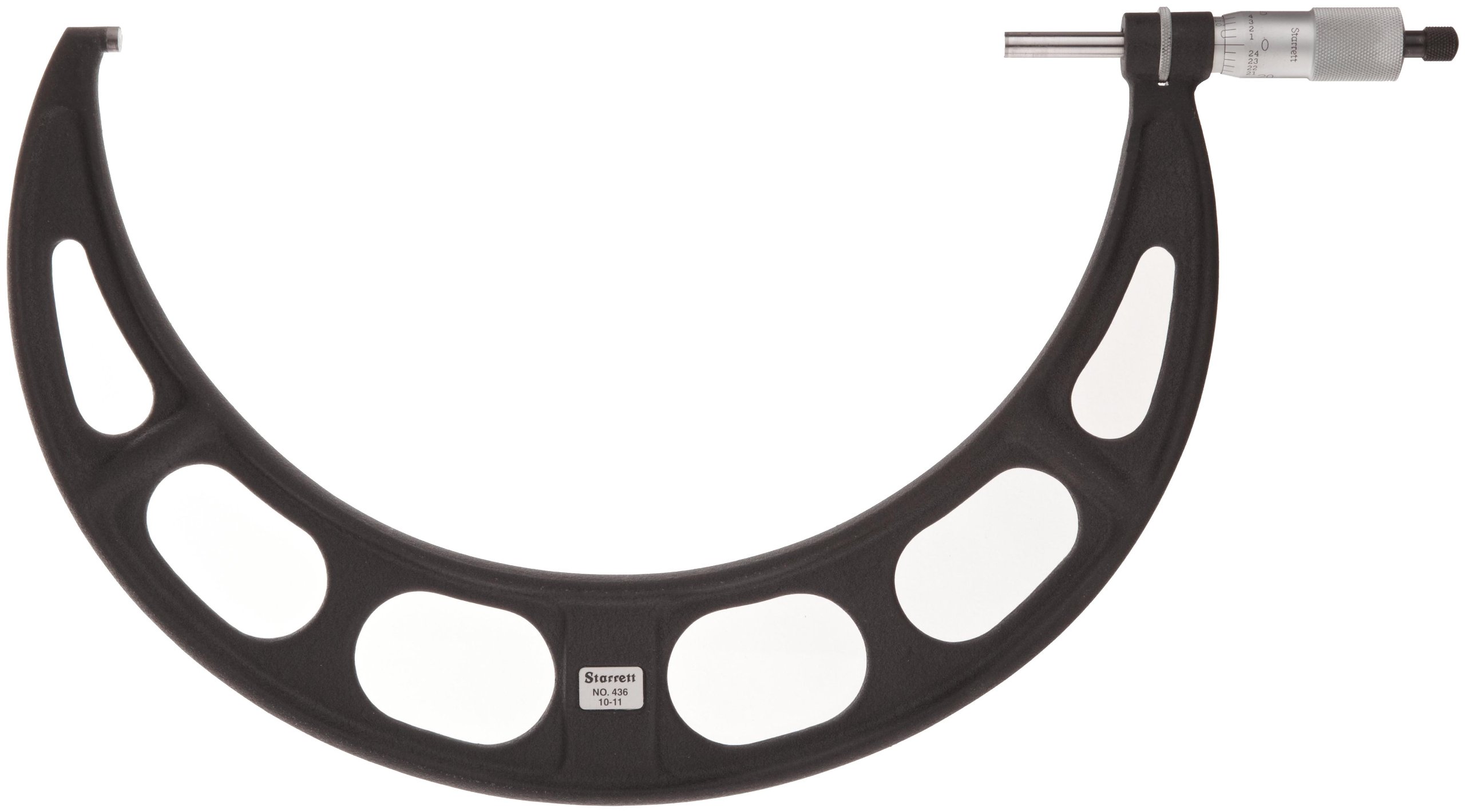

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Starrett 436 Series Outside Micrometer, Ratchet Stop, Lock Nut, Carbide Faces, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
436 Series Outside Micrometer
Material Type
Carbide
UNSPSC Code
41111601
Brand Name
Starrett
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 4 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 24 Next 4 »
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 24 Next 4 »
10-11" 0.0001" N/A T436XRL-11 B0006J4TFW yes $170.99 Buy Options
10-11" 0.001" +/-0.0002" 436XRL-11 B0006J4TFC yes $219.10 Buy Options
11-12" 0.0001" +/-0.0002" T436XRL-12 B0006J4S5I yes $369.00 Buy Options
11-12" 0.001" +/-0.0002" 436XRL-12 B0006J4S58 yes $266.16 Buy Options
12-13" 0.001" +/-0.0003" 436XRLZ-13 B000VDXG1Q yes $561.00 Buy Options
13-14" 0.001" +/-0.0003" 436XRLZ-14 B000VDTEJY Usually ships in 1 to 3 months $575.00 Buy Options
14-15" 0.001" +/-0.0003" 436XRLZ-15 B000VDXG20 yes $612.00 Buy Options
15-16" 0.001" +/-0.0003" 436XRLZ-16 B000VDVOXS yes $640.00 Buy Options
16-17" 0.001" +/-0.0003" 436XRLZ-17 B000VDTEKI yes $307.93 Buy Options
17-18" 0.001" +/-0.0003" 436XRLZ-18 B000VDXG2A yes $734.00 Buy Options
18-19" 0.001" +/-0.0003" 436XRLZ-19 B000VDZAT2 yes $684.13 Buy Options
19-20" 0.001" +/-0.0003" 436XRLZ-20 B000VDRR7K yes $848.00 Buy Options
20-21" 0.001" +/-0.0003" 436XRLZ-21 B000VDZATC yes $883.00 Buy Options
21-22" 0.001" +/-0.0003" 436XRLZ-22 B000VDRR7U yes $969.00 Buy Options
22-23" 0.001" +/-0.0003" 436XRLZ-23 B000VDTELM yes $1,018.00 Buy Options
23-24" 0.001" +/-0.0003" 436XRLZ-24 B000VDVOYC Usually ships in 2 to 4 weeks $1,102.00 Buy Options
6-7" 0.0001" N/A T436XRL-7 B0006J4SMQ yes $285.00 Buy Options
6-7" 0.001" +/-0.0002" 436XRL-7 B0006J4SLM yes $278.00 Buy Options
7-8" 0.0001" N/A T436XRL-8 B0006J4ZHO yes $308.00 Buy Options
7-8" 0.001" +/-0.0002" 436XRL-8 B0006J4ZGK yes $301.00 Buy Options

Key Features

  • Bow-type micrometer for measurement of large outside dimensions
  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Micro-lapped carbide measuring faces help provide accuracy and wear resistance

Product Description

The Starrett 436 series outside micrometer has a bow-type shape for measurement of large outside dimensions, a vernier scale in inch units for taking precise outside diameter (OD) measurements, and a ratchet-stop mechanism that helps provide uniform pressure for precise, repeatable measurements. The micrometer’s frame is made of ribbed cast iron with perforations that helps provide light weight with rigidity. The vernier scale on the thimble and sleeve is graduated to 0.001” or 0.0001” depending on the model, with a satin chrome rust- and glare-resistant finish. The spindle and anvil have flat, micro-lapped measuring faces for accuracy and are carbide-tipped for wear resistance. A knurled ring-type lock nut helps provide secure locking of the measurement position.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.
