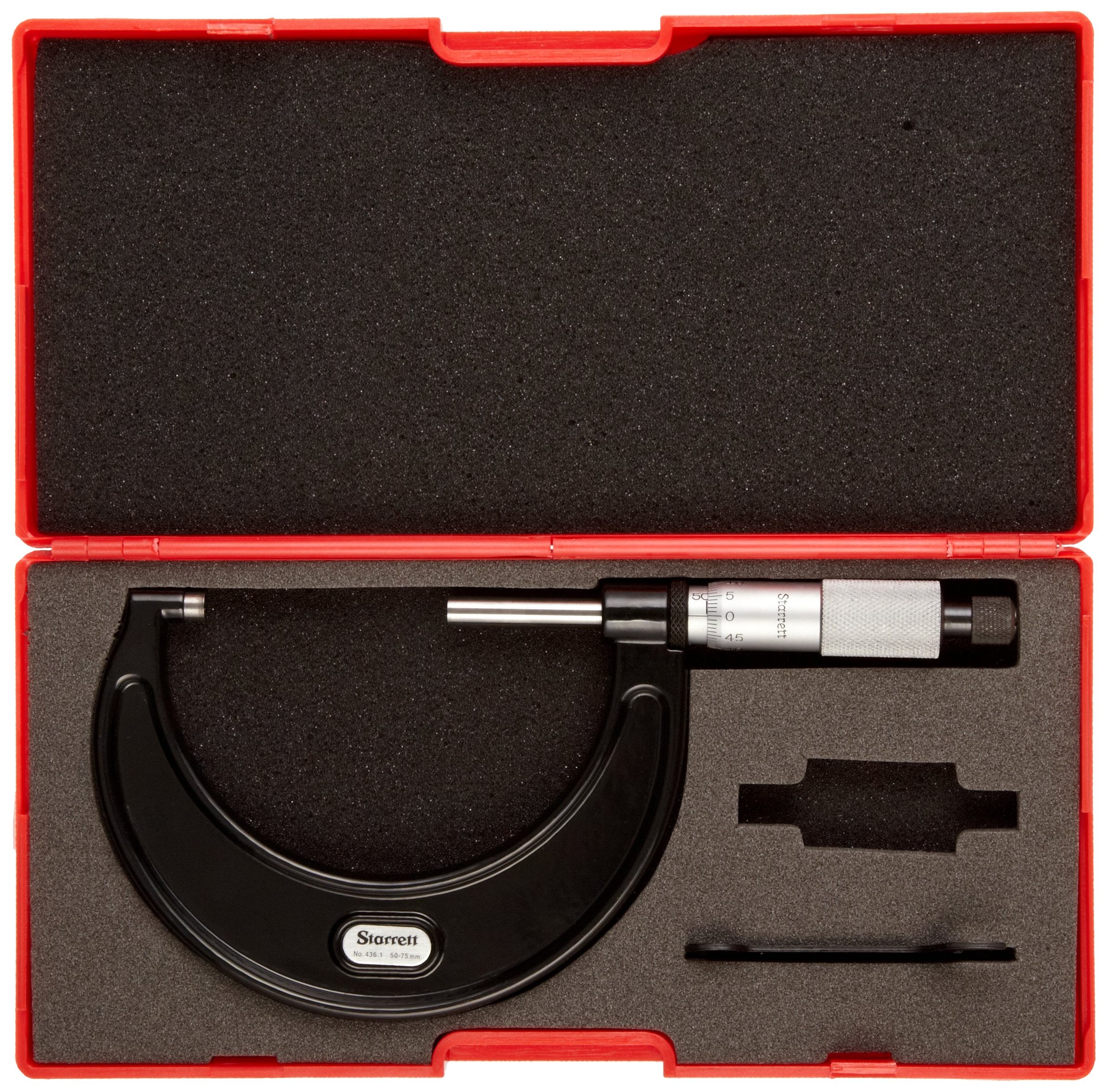

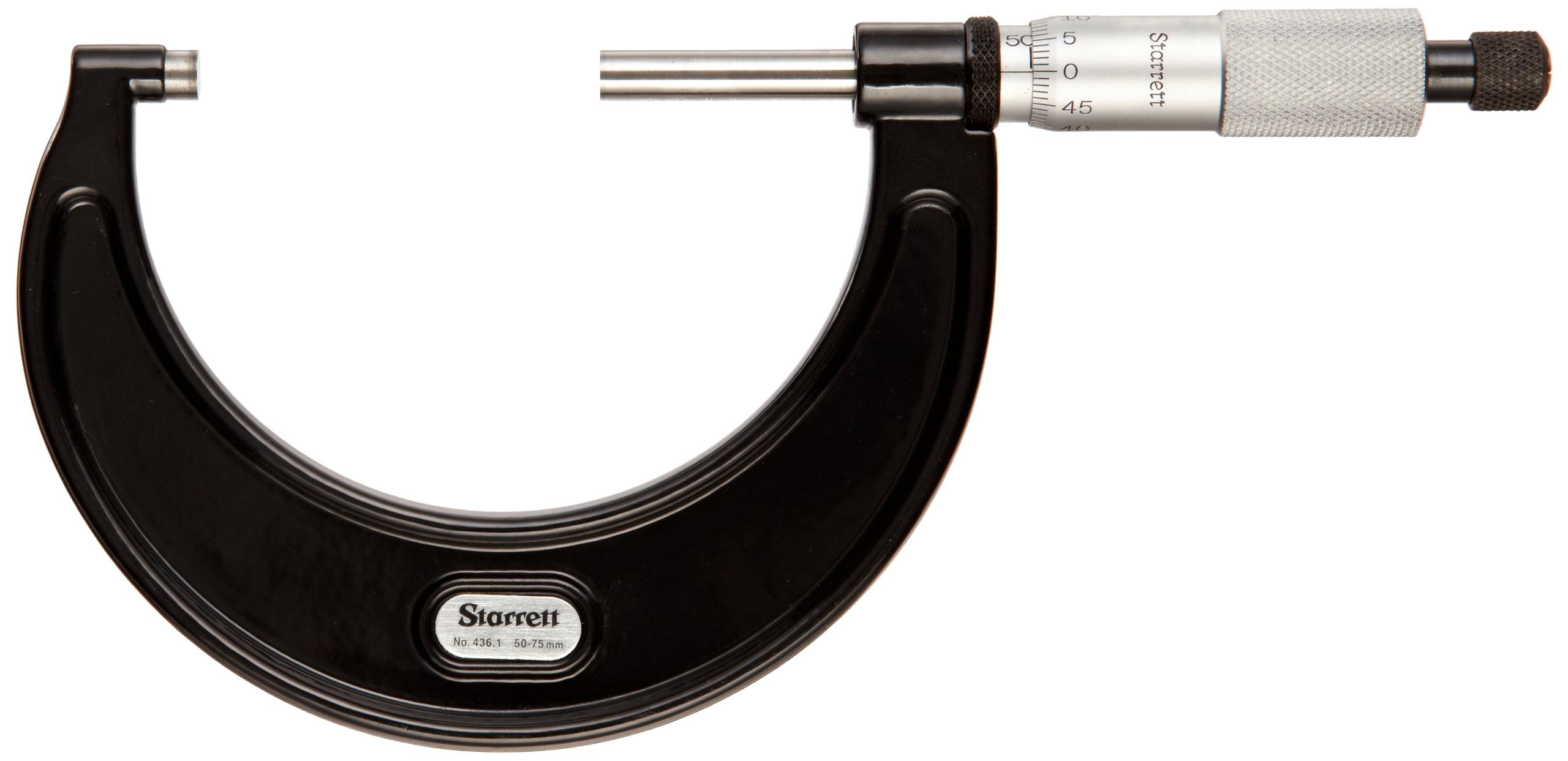

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Starrett 436.1 Series Outside Micrometer, Ratchet Stop, Lock Nut, Carbide Faces, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
436.1 Series Outside Micrometer
Material Type
Carbide
UNSPSC Code
41111601
Brand Name
Starrett
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 13 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-12 of 12
0-25mm 0.001mm +/-0.001mm V436.2MXRL-25 B003YL3ALI yes $129.00 Buy Options
0-25mm 0.01mm +/-0.002mm 436.2MXRL-25 B003YL3B12 yes $110.19 Buy Options
100-125mm 0.001mm +/-0.004mm V436.1MXRL-125 B000VDZFF6 yes $230.00 Buy Options
100-125mm 0.01mm +/-0.004mm 436.1MXRL-125 B000MLT5TE yes $200.68 Buy Options
125-150mm 0.001mm +/-0.004mm V436.1MXRL-150 B000VDRV6W yes $250.00 Buy Options
125-150mm 0.01mm +/-0.004mm 436.1MXRL-150 B000MM2E5U yes $219.27 Buy Options
25-50mm 0.001mm +/-0.002mm V436.1MXRL-50 B000VDXK2Q yes $168.00 Buy Options
25-50mm 0.01mm +/-0.002mm 436.1MXRL-50 B000VDRV6C yes $52.82 Buy Options
50-75mm 0.001mm +/-0.002mm V436.1MXRL-75 B000VDZFEM yes $195.00 Buy Options
50-75mm 0.01mm +/-0.002mm 436.1MXRL-75 B000VDTIMM yes $179.28 Buy Options
75-100mm 0.001mm +/-0.004mm V436.1MXRL-100 B000VDXO8G yes $212.00 Buy Options
75-100mm 0.01mm +/-0.004mm 436.1MXRL-100 B000MLYTR2 yes $200.18 Buy Options

Key Features

  • Tapered frame for measuring narrow slots and tight spaces
  • Vernier scale in metric units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Micro-lapped carbide measuring faces help provide accuracy and wear resistance

Product Description

The Starrett 436.1 series outside micrometer has a vernier scale in metric units for taking precise outside diameter (OD) measurements, a tapered frame for measuring narrow slots and tight places, and a ratchet-stop mechanism that helps provide uniform pressure for precise, repeatable measurements. The micrometer’s steel frame has a baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.01mm or 0.001mm depending on the model, with a satin chrome rust- and glare-resistant finish. The spindle and anvil have flat, micro-lapped measuring faces for accuracy and are carbide-tipped for wear resistance. A knurled ring-type lock nut helps provide secure locking of the measurement position.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.
