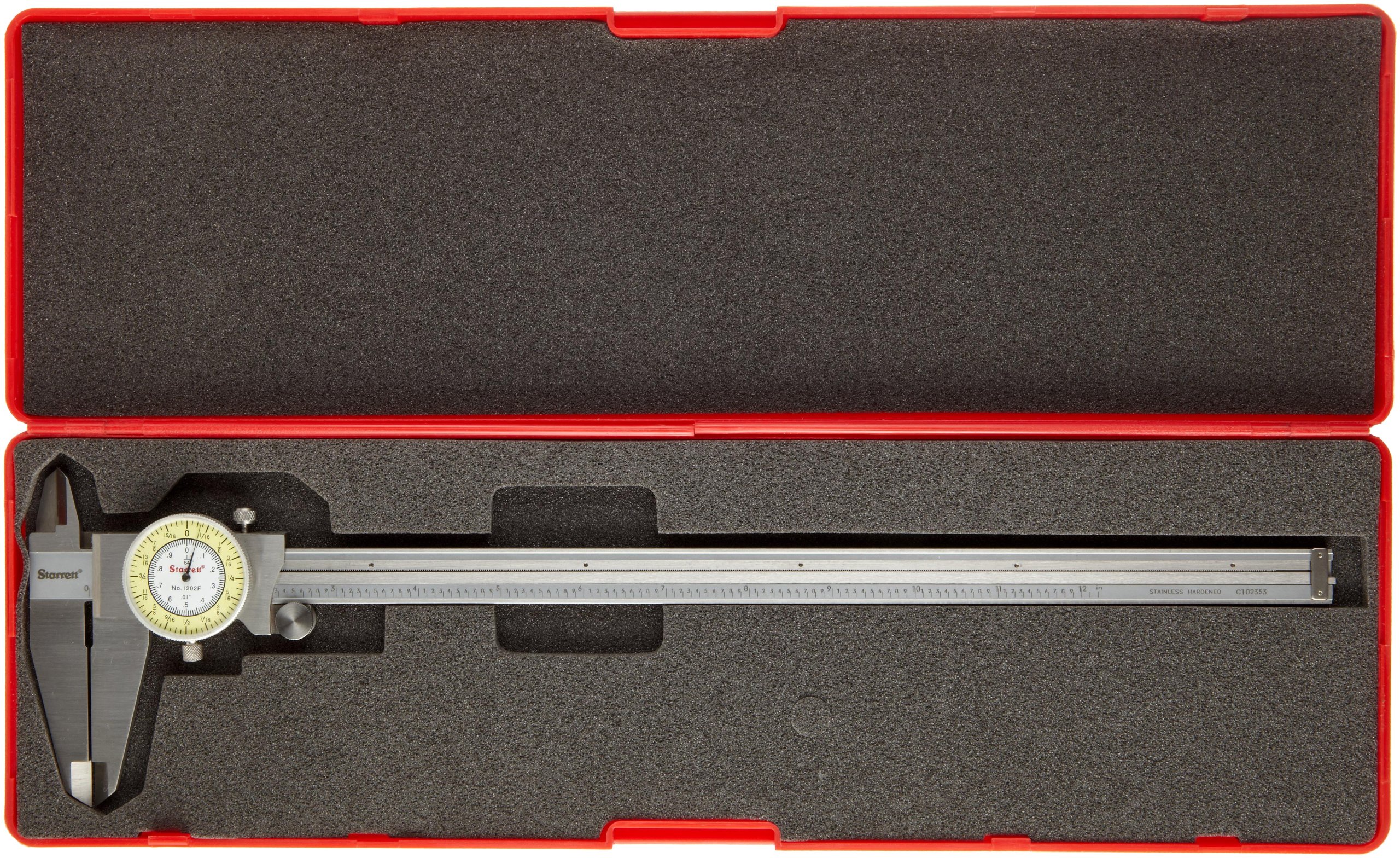

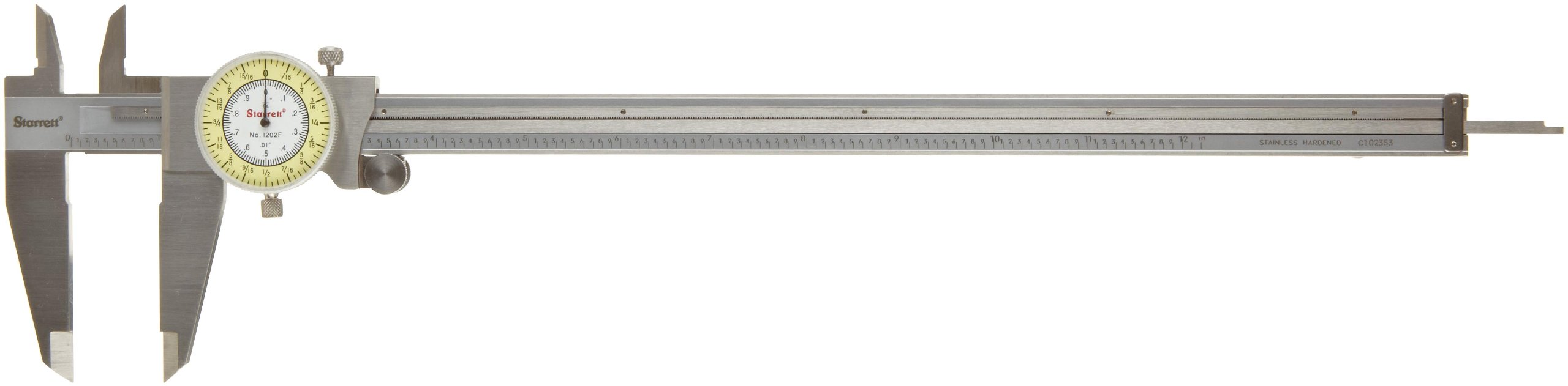

Starrett 1202F Series Dial Calipers, Inch, Stainless Steel

Be the first to review this item

ASIN B007K35EQK

Specifications for this item
Specific Uses For Product
N/A
Range
N/A
Material Type
Stainless Steel
Color Name
N/A
Item Depth
N/A
Brand Name
Starrett
Manufacturer Series Number
1202F Series
Specification Met
N/A
Maximum Measurement
N/A
UNSPSC Code
41111600
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Three-way measurement capability for precision measurements of inside dimension (ID), outside dimension (OD), and depth
  • Dial display is graduated in fractions to 1/64" for convenient matching to specifications expressed in fractions
  • Knife-edge contacts can be used to scribe parallel lines on the workpiece
  • Thumb-operated fine adjustment roll allows for one-handed use
  • Hardened stainless steel bar, measuring surfaces, rack, gears, and depth rod for accuracy and long life

Product Description

The Starrett 1202F series of fractional dial calipers have three-way measurement capability for outside dimension (OD), inside dimension (ID), and depth, with a dial display with an inner scale graduated in decimal to 0.01” and outer scale graduated in fractions to 1/64”.

One full revolution of the dial is equivalent to 0.100”. The knife-edge contacts can be used to scribe parallel lines on the workpiece. This caliper can be used with one hand through operating the fine adjustment roll with the thumb. The lock screw locks the dial bezel and holds the sliding jaw in position. The depth rod is integrated into the rack of the caliper, unlike many calipers which offer a detachable depth rod, or none at all. The hardened stainless steel components, including the bar, measuring surfaces, rack, gears, and depth rod, offer corrosion resistance, increased accuracy, and long life. Positive double pinion anti-backlash control offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls, which prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash. Double pinion anti-backlash systems have two round gears (also called pinions) in contact with the rack gear that extends down the length of the caliper itself. The two pinions have a lower chance of disengaging with the rack gear than a single gear, thereby keeping the caliper more accurate than a single gear anti-backlash system. The rack teeth point down to keep foreign matter from clogging the gear operations. This prevents measurement errors where metal chips could interfere with proper caliper operation.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers all give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used for measuring size differential between two objects, as well. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.
