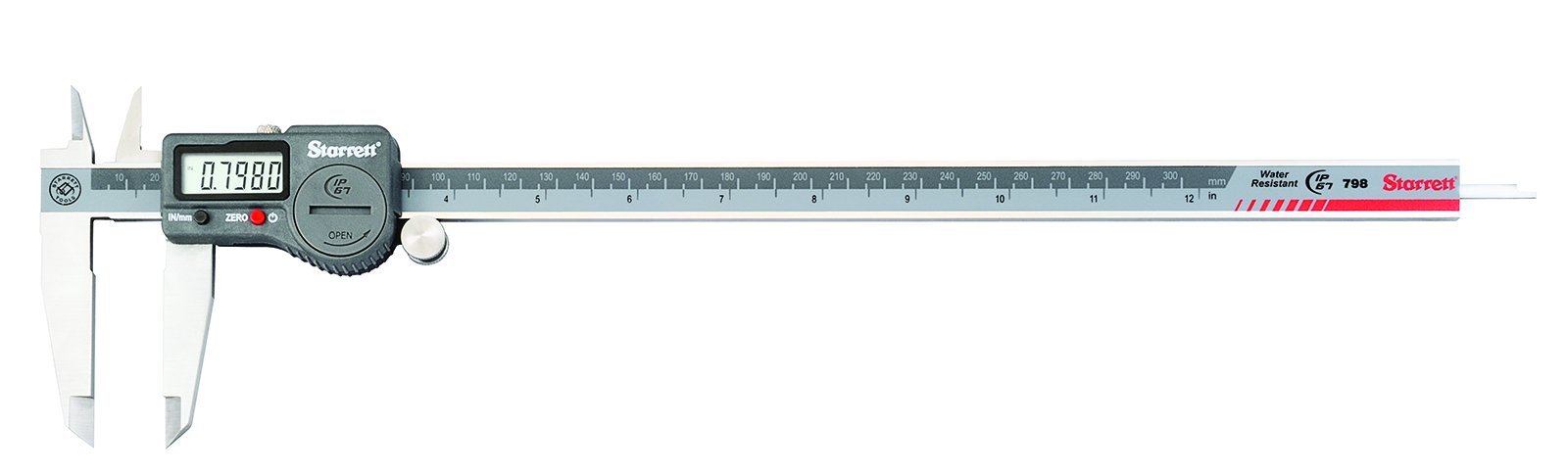

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Starrett 798 Series Caliper Gauge, Stainless Steel, Inch/Metric, For Depth/Inside/Outside/Step Measurements

Be the first to review this item

Product Specifications
Manufacturer Series Number
798 Series
Specific Uses For Product
Depth , Inside , Outside , Step
Tip Description
Standard
Material Type
Stainless Steel
Brand Name
Starrett
System of Measurement
Inch/Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 5 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Range Accuracy Resolution Output Depth A Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-8 of 8
0-6" +/-0.001" 0.0005" N/A 1.50" Fine-adjustment 798A-6/150 B003YL3A4A 12 $180.40 Buy Options
0-6" N/A 0.0005" SPC 1.50" Fine-adjustment, data output, standard Letter of Certification 798B-6/150 W/SLC B003YL3A7M 2 $255.72 Buy Options
0-6" +/-0.001" 0.0005" SPC 1.50" Fine-adjustment, data output 798B-6/150 B003YL3A6I Usually ships in 1 to 3 months $239.00 Buy Options
0-8" +/-0.001" 0.0005" N/A 1.875" Fine-adjustment 798A-8/200 B003YL3A4U 5 $215.99 Buy Options
0-8"   0.0005" SPC 1.88" Fine-adjustment, data output, standard Letter of Certification 798B-8/200 W/SLC B003YL3A90 1 $329.00 Buy Options
0-12" +/-0.001" 0.0005" N/A 2.50" Fine-adjustment 798A-12/300 B003YL3A40 4 $319.99 Buy Options
0-12" +/-0.001" 0.0005" SPC 2.50" Fine-adjustment, data output 798B-12/300 B003YL3A5E Usually ships in 2 to 4 weeks $423.28 Buy Options
0-12"   0.0005" SPC 2.50" Fine-adjustment, data output, standard Letter of Certification 798B-12/300 W/SLC B003YL3A5Y 1 $470.00 Buy Options

Key Features

  • Measures 0 to 12" and 0 to 300 mm with 0.0005" and 0.01 mm accuracy
  • IP 67-certified, to ensure protection against coolant, water, dirt, and dust
  • Easy-to-read LCD with 0.310" high characters
  • Hardened stainless steel bar for corrosion resistance and long life
  • Linear accuracy meets international DIN 862 standards

Product Description

The Starrett 798A-12/300 dial caliper measures 0 to 12 inches and 0 to 300 mm with 0.0005” or 0.01 mm accuracy. This easy-to-use measuring tool allows for reliable and accurate readings with the slim, streamlined design and large LCD. This caliper is IP 67-certified, which means that the electronic components are resistant to debris, and are resistant to submersion under standard conditions for up to 30 minutes.

The caliper can be used with one hand through operating the fine adjustment roll with the thumb. A lock screw can hold the slide in position. The hardened stainless steel measuring surfaces offer corrosion resistance and long life, while the heavy-duty bar and slide are a sturdy 3.5 mm thick. Single battery is easy to access, on the front of the plastic casing, next to the LCD. The last measurement position is retained when the caliper is shut off, and it is simple to zero the caliper at any position with the clearly marked zero button. It is simple to zero the caliper at any position with a push of the zero button. Easy-to-read LCD is large, with 0.310” tall characters. The caliper shuts off automatically after 30 minutes of nonuse. Linear accuracy meets the internationally used Deutsches Institut fur Normung 862: Vernier Calipers Requirements and Testing (DIN 862) standards. Induction-type linear encoder system offers high precision in measurements by tracking small movements in position by using a conductor moving through a magnetic field. The outside measuring jaws on this caliper are approximately 2-1/2” (63.5 mm) long, while the inside measuring jaws are approximately 3/4” (19 mm) long.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used also for measuring size differential between two objects. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

The L. S. Starrett Company was founded in 1880, originally manufacturing bench vises, squares, and other tools. They acquired other companies throughout the years, expanding their services into making precision measurement instruments and tools, such as calipers, micrometers, saw blades, and gauges. Starrett is headquartered in Athol, Massachusetts and has manufacturing facilities in Brazil, the United Kingdom, China, and other locations.

    What’s in the Box:
  • CR 2032 3V battery
  • Fitted plastic case
