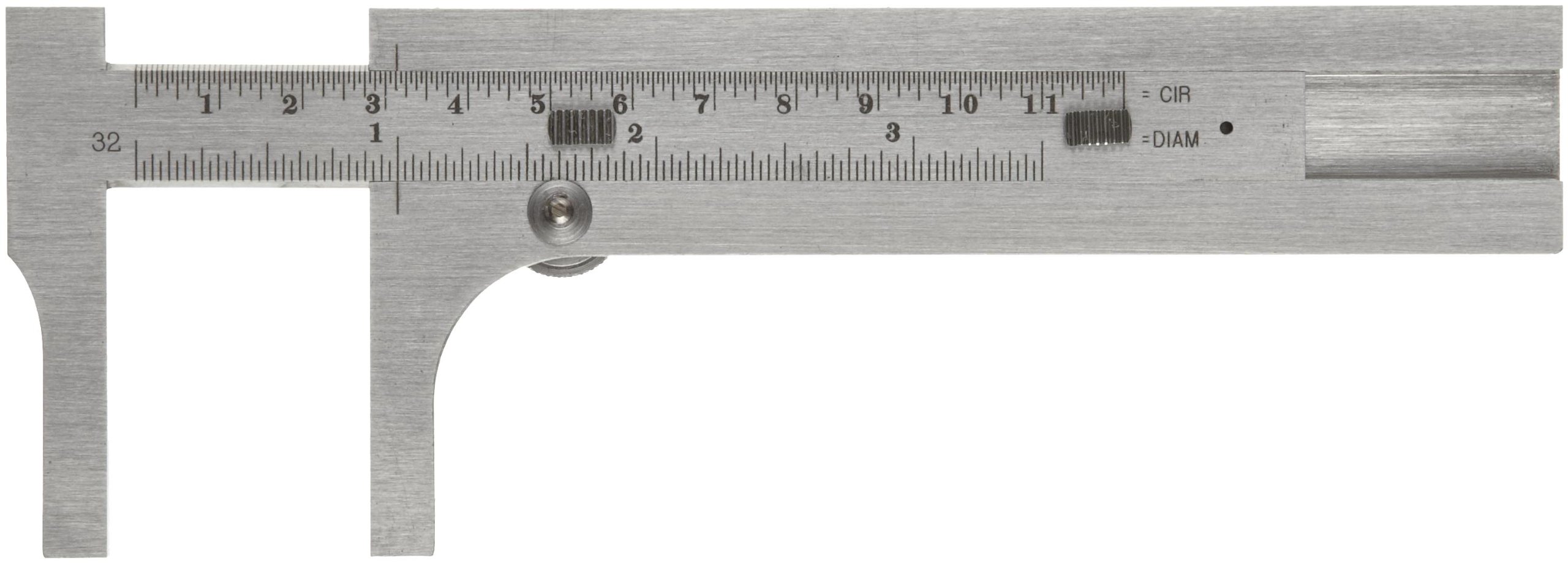

Starrett 424 Pocket Slide Caliper, 0 to 3.5" Range, 0.03125" Graduations, Stainless Steel, Nib Style Jaw

Be the first to review this item

ASIN B0006J4GDM

Specifications for this item
Range
0-3.5"
Part Number
424
Resolution
1/32"
Item Depth
1.375"
Brand Name
Starrett
Measurement Accuracy
+/-0.03125"
Maximum Measurement
0-3.5"
Number of Items
1
Specific Uses For Product
Outside
Material Type
Stainless Steel
UPC
049659515275
Manufacturer Series Number
424 Series
EAN
0049659515275
Tip Description
Nib Style
UNSPSC Code
41111621
System of Measurement
Inch
Overall Length
3.5  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Mar 4? Order in-stock items in the next 14 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures 0 to 3.5" with 0.03125" graduations for gaging wire and drill rod
  • 1.375" jaw depth for testing sizes 0 through 36
  • Hardened stainless-steel frame and slide for durability and corrosion resistance
  • Decimal equivalent engraved on gauge back side

Package Details

Shipping Weight: 0.25 pounds
Package Size: 6.4 x 3 x 0.9 inches

Product Description

The Starrett 424 pocket slide caliper has a 0 to 3.5" measuring range with 0.03125" graduations for gaging wire and drill rod. The 1.375" jaw depth tests United States Steel Wire Gage sizes 0 through 36 and decimal equivalents are engraved on the gauge back side. The hardened stainless-steel frame and slide are durable and corrosion resistant.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
