Starrett 82BZ Dial Bore Gauge Complete Set, 0.217-0.594" Range, 0.0001" Graduation

Be the first to review this item

ASIN B0006J4REA

Specifications for this item
Number of Items
1
Range
0.217-0.594"
Part Number
82BZ
Resolution
0.0001"
UPC
049659557923
Brand Name
Starrett
Gradient Spacing
0.0001  inches
EAN
0049659557923
Manufacturer Series Number
Dial Bore Gauge Complete Set
Maximum Measurement
0.217-0.594"
Style Name
Dial
System of Measurement
Inch
List price:
$1,274.00
Price:
$1,146.28
You save:
$127.72 (10%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 14 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Range is 0.217 to 0.594", with maximum bore depth of 1-1/2" on probes up to 0.405" and 1-3/4 on probes up to 0.594", and indicator graduations of 0.0001"
  • Two-point contact measurement system for detecting hole geometry problems like taper, bell-mouth, and ovality
  • Split-ball contact is self-centering
  • Interchangeable probes are hard chrome-plated and polished, for precision and durability

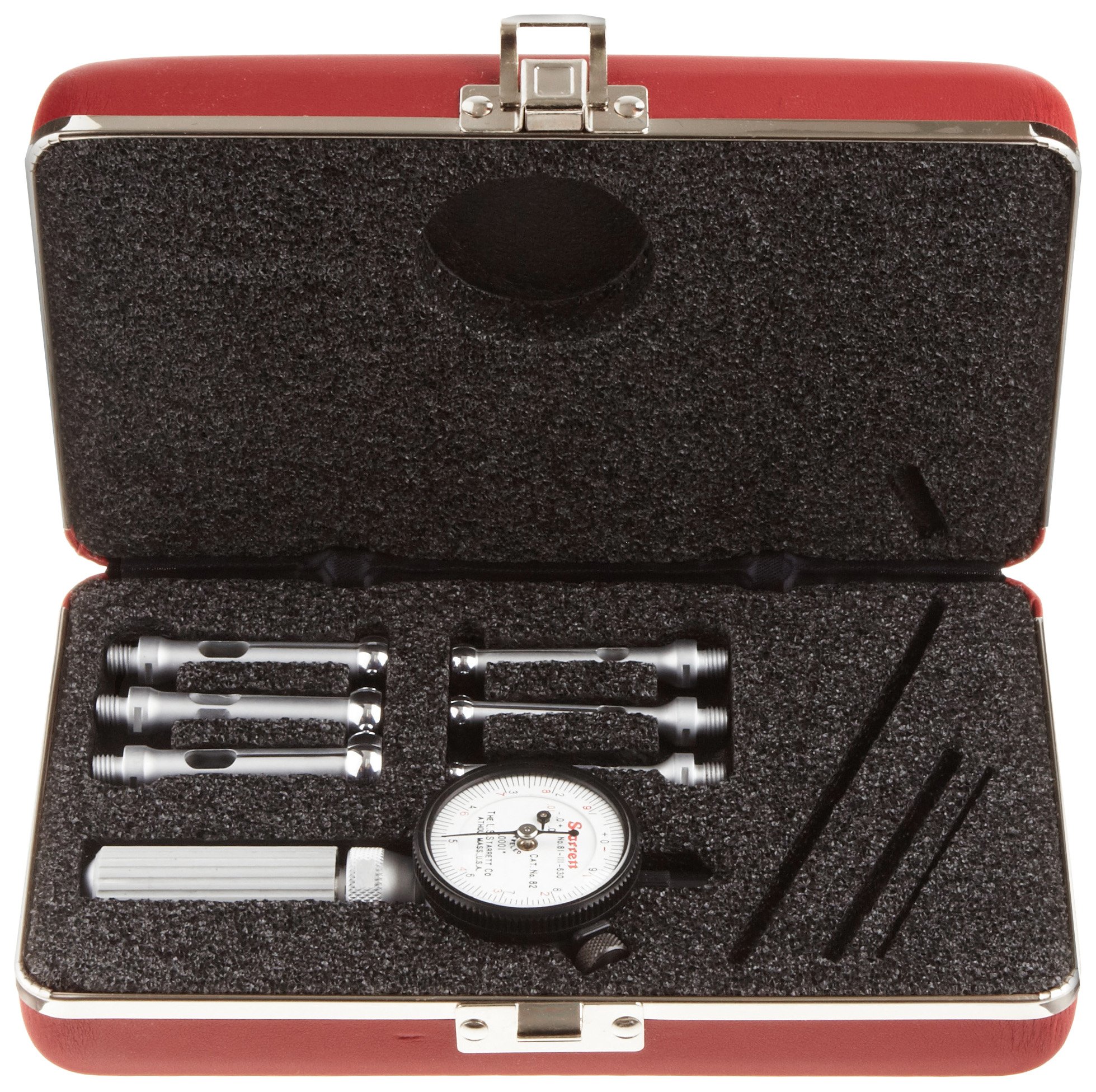

  • Set includes dial indicator, body, actuating rod, two adjusting wrenches, six probes, and protective case

Package Details

Shipping Weight: 1.8 pounds
Package Size: 8 x 5.8 x 2.4 inches

Product Description

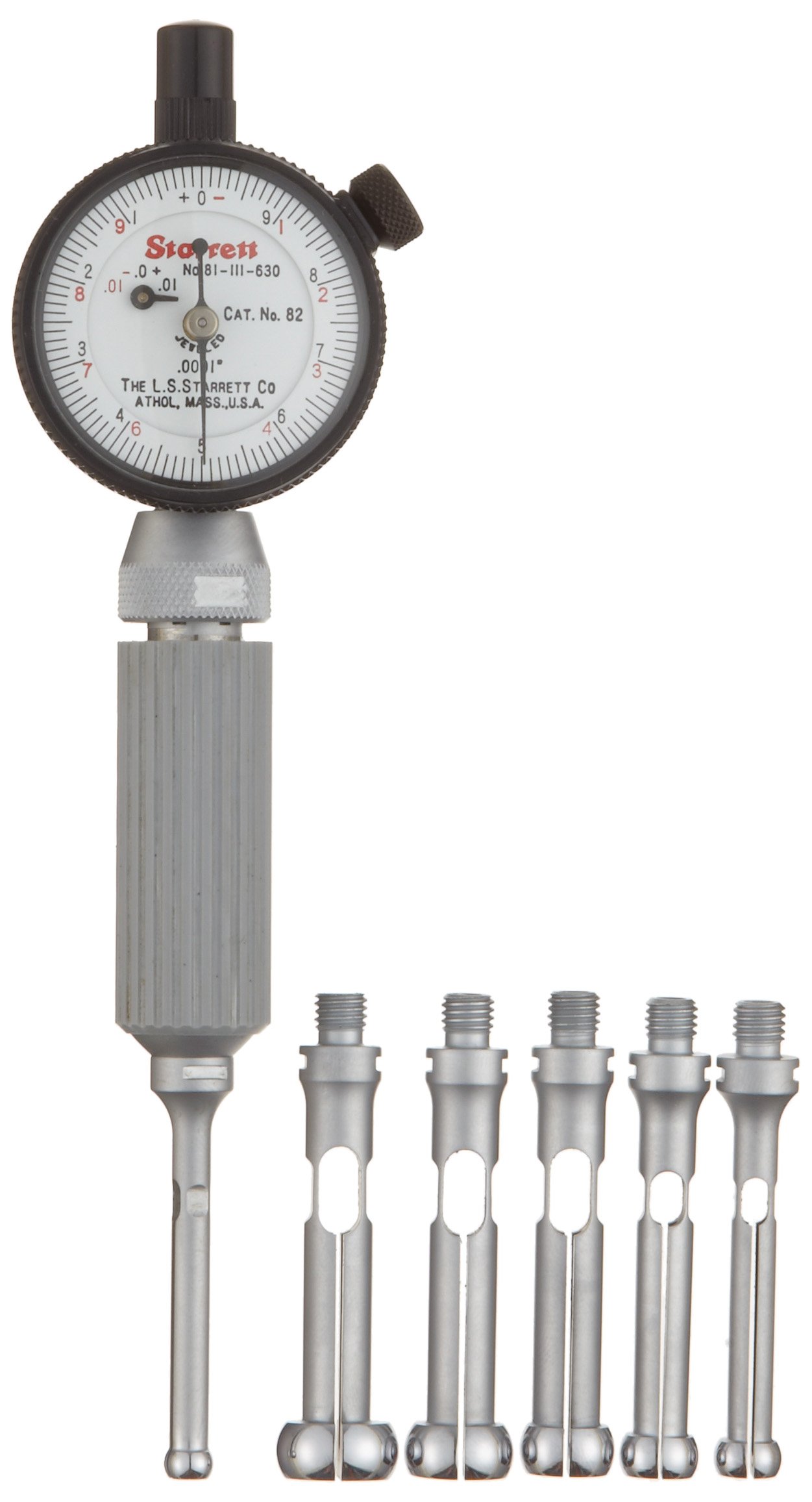

The Starrett 82BZ bore gage set includes dial indicator, body, actuating rod, two adjusting wrenches, six probes, and protective case. The bore gage range is 0.217 to 0.594”, with maximum bore depth of 1-1/2” on probes up to 0.405” and 1-3/4 on probes up to 0.594”, with indicator graduations of 0.0001”. The two-point contact measurement system is suitable for detecting hole geometry problems like taper, bell-mouth, and ovality. The split-ball contact is self-centering, and the interchangeable probes are hard chrome-plated and polished, for precision and durability. This bore gage can be used for testing tolerance without removing the workpiece from a machine.

Bore gages measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gages are typically calibrated with a setting ring. Bore gages come in two types, one simple, and the other direct-measuring. Simple bore gages are used with a caliper to transfer the hole measurement, while the more complex gages take the measurement directly, and display the measurement through a vernier, dial, or digital display. Bore gages have a two- or three-point contact, which indicates how many points on the gage head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point systems are used to measure lobing, or triangular form error. Pistol-grip bore gages are used for fast, single-handed operation with good repeatability from one operator to another. Bore gages, regardless of type, can be used in some special applications, such as measuring threads, spline pitch diameters, and deep bores.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.

What’s in the Box?

  • Starrett dial indicator
  • Body
  • Actuating rod
  • Two adjusting wrenches
  • 0.217 to 0.281” probe, 1-1/2” maximum bore depth
  • 0.279 to 0.344” probe, 1-1/2” maximum bore depth
  • 0.342 to 0.405” probe, 1-1/2” maximum bore depth
  • 0.403 to 0.469” probe, 1-3/4” maximum bore depth
  • 0.467 to 0.532” probe, 1-3/4” maximum bore depth
  • 0.530 to 0.594” probe, 1-3/4” maximum bore depth
  • Protective case
