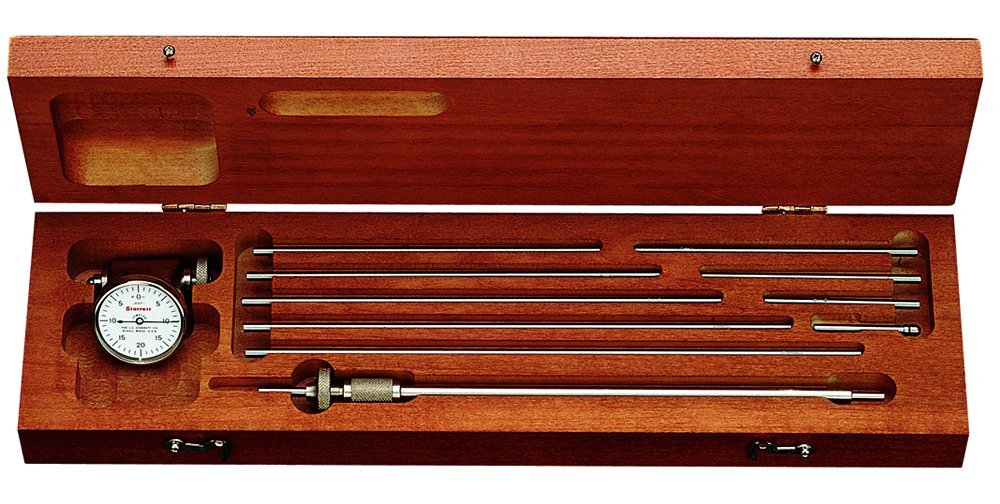

Starrett 697Z Inside Dial Gauge, 0.001" Graduation, 2-3/8-18" Range, 0-20-0 Dial Reading, 0.040" One Revolution

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name
Gradient Spacing
0.001  inches
Maximum Measurement
Style Name
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, May 5? Order in-stock items in the next 1 day 4 hrs 52 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Total measurement range of 2-3/8 to 18"
  • Rods marked to designate approximate overall gauge length
  • Balance dial face reads 0-20-0
  • Two-point contact for detection of geometry problems such as ovality and taper
  • Indicator bezel is rotated to adjust the dial in relation to the hand and has a non-breakable crystal

Package Details

Shipping Weight: 2.35 pounds
Package Size: 15.4 x 5.7 x 2.5 inches

Product Description

The Starrett 697Z Inside Dial Gauge has a range of measurement of 2-3/8 to 18" and can be used between two walls to check for parallelism and also to take comparative measurements of internal diameter. This direct-measuring gauge has marked rods that designate approximate overall length. The balance dial reads 0-20-0, and gradient spacing is 0.001". The indicator bezel is rotated to adjust the dial in relation to the hand and has a non-breakable crystal. The two-point contact system can be used to detect geometry problems such as ovality and taper. The tool can be set with a micrometer and comes with 10 rods and one extension.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
