Starrett 687-3Z Inch Reading Countersink Gauge, 82 Degree Angle, 0.360-0.560" Range
Be the first to review this item
ASIN B000VDVPK0
Specifications for this item
- Brand Name
- Starrett
- EAN
- 0049659637007
- Maximum Measurement
- 0.360-0.560"
- Mfr Part #
- 687-3Z
- Pkg Qty
- 1
- System of Measurement
- Inch
- UPC
- 049659637007
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 5 hours 26 minutes and choose One-Day Shipping at checkout.
Key Features
- All ground surfaces are of hardened tool
- Indicators are AGD design

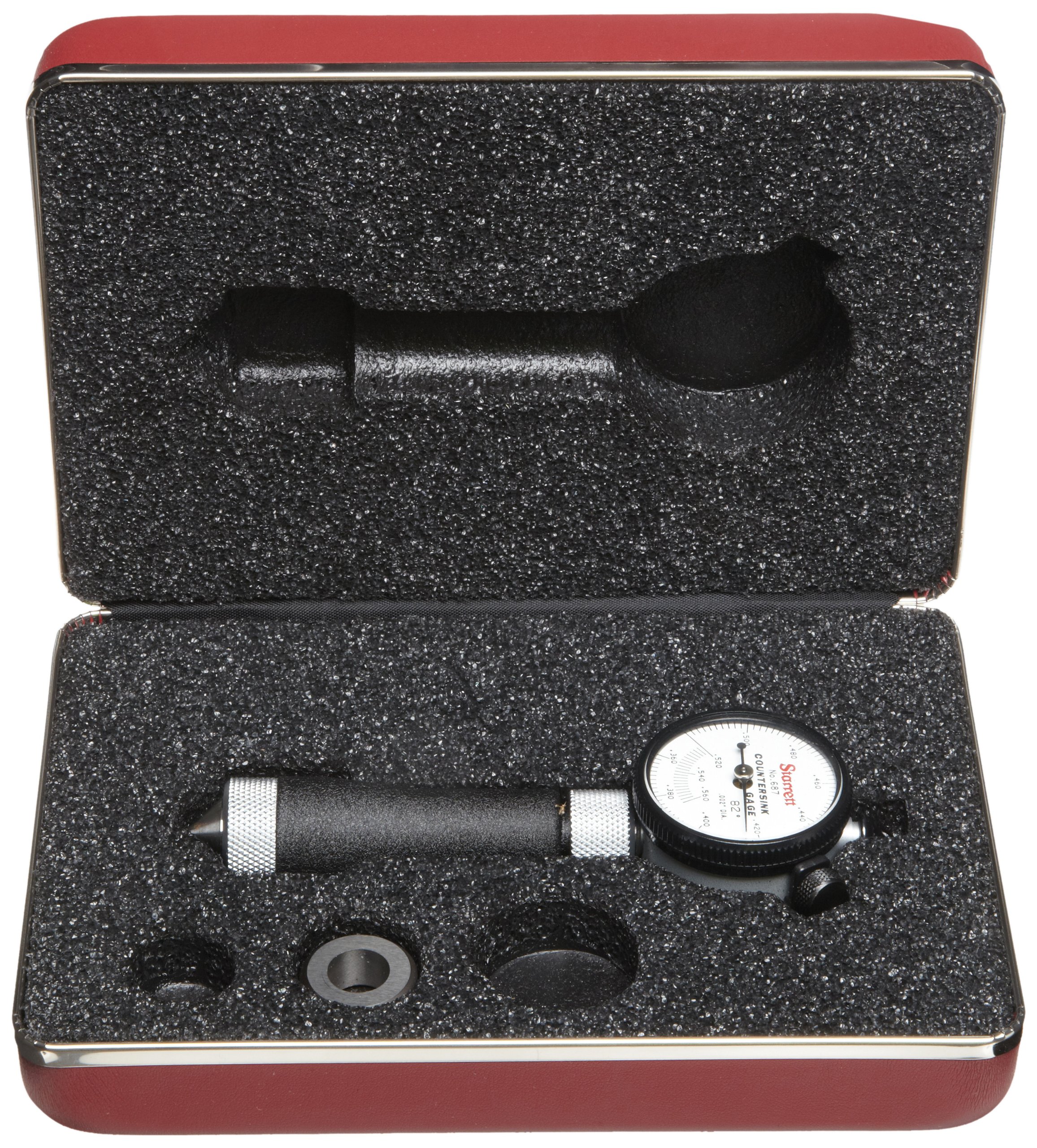

- Gauges furnished in deluxe padded case
Package Details
Shipping Weight:
1.25 pounds
Package Size:
7.7 x 5.5 x 2.3 inches
Product Description

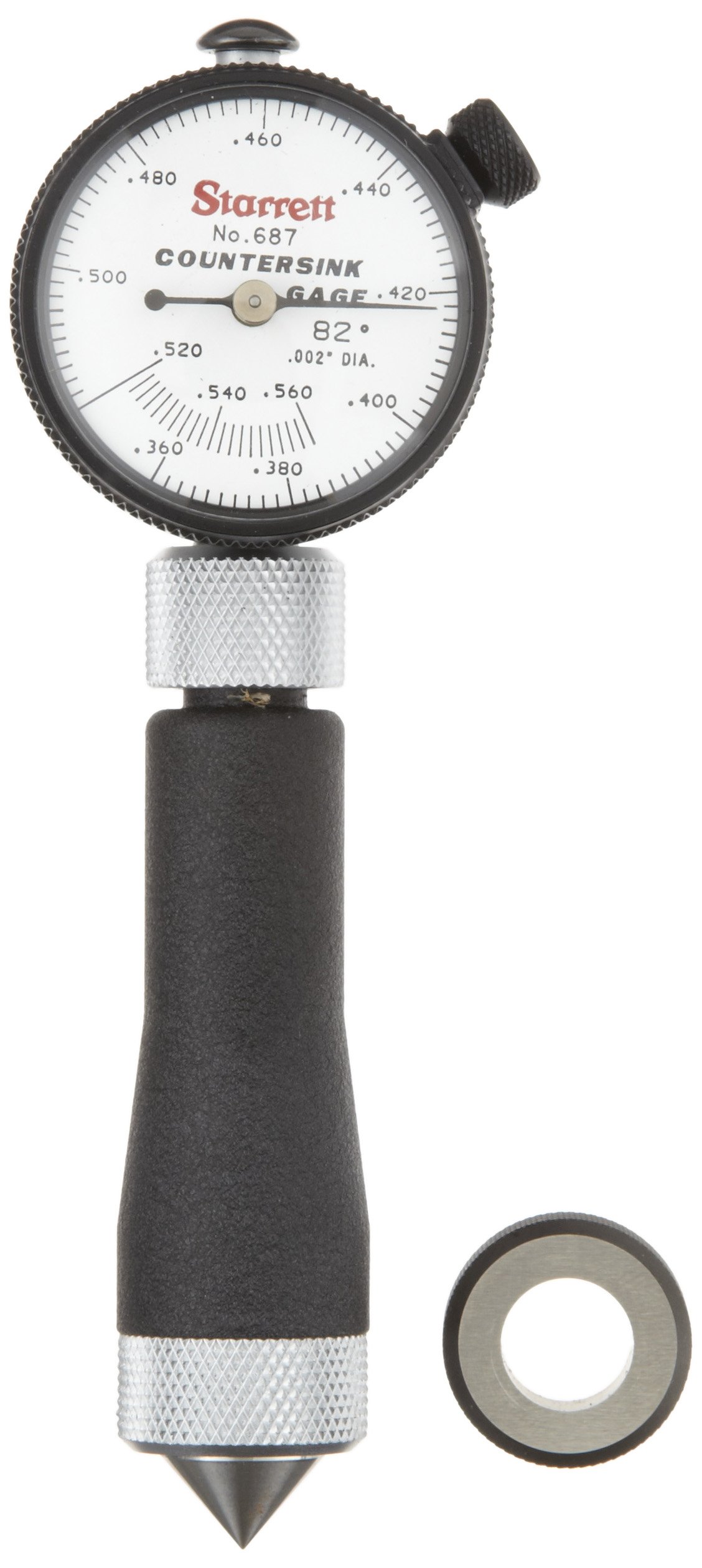

Starrett Countersink Gauges are offered in three different angles so that the gauge sets on the angular side of the countersink, as opposed to a chamfer gauge which sets on the top edge of the chamfer. This gauge directly reads the large diameter of the countersink in 0.002" or 0.05 mm increments. A set master ring is furnished with each gauge for calibration and setting. Press the button on top of the indicator to firmly depress the gauge head into the countersink. When the gauge is removed, the indicator reading is held in place until the reset button is activated.
