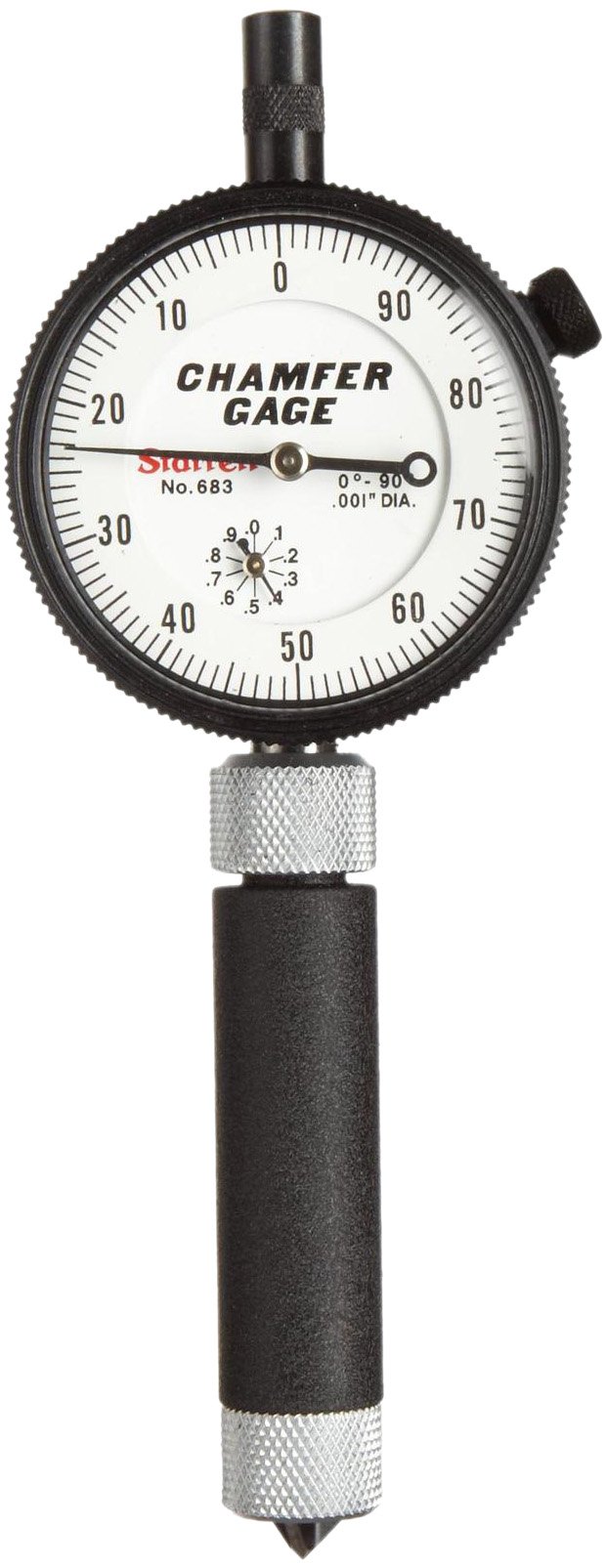

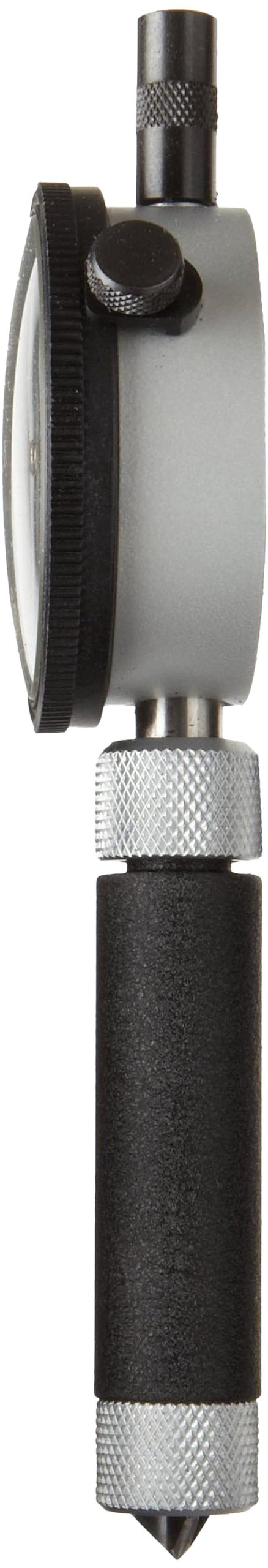

Starrett 683-1Z Inch Reading Internal Chamfer Gauge, 0-90 Degree Angle, 0-3/8" Range

Be the first to review this item

ASIN B000VDTF3Y

Specifications for this item
Number of Items
1
Range
0-3/8"
Part Number
683-1Z
UPC
049659636840
Brand Name
Starrett
Gradient Spacing
0.001  inches
EAN
0049659636840
Maximum Measurement
0-3/8"
UNSPSC Code
23242603
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 23 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • All ground surfaces are of hardened tool steel
  • Indicators are AGD design
  • Internal gauges will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face of the gauge

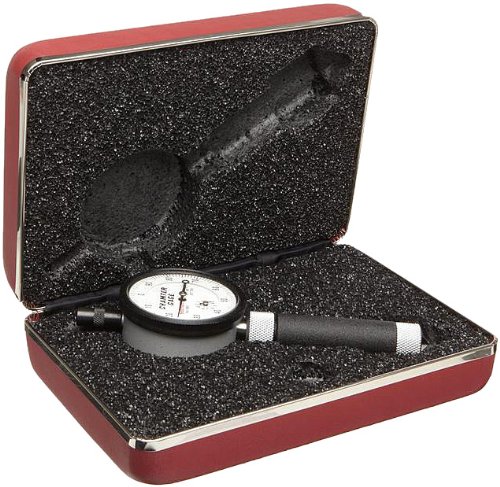

  • Gauges furnished in deluxe padded case

Package Details

Shipping Weight: 1.9 pounds
Package Size: 7.7 x 5.5 x 2.3 inches

Product Description

These gauges directly measure the diameter of chamfered holes. No setting master is necessary. When the three-blade plunger is pressed against a flat surface, the gauge should read the set number stamped on the back of the indicator. In case of wear, the gauge may be adjusted to read the proper number.
