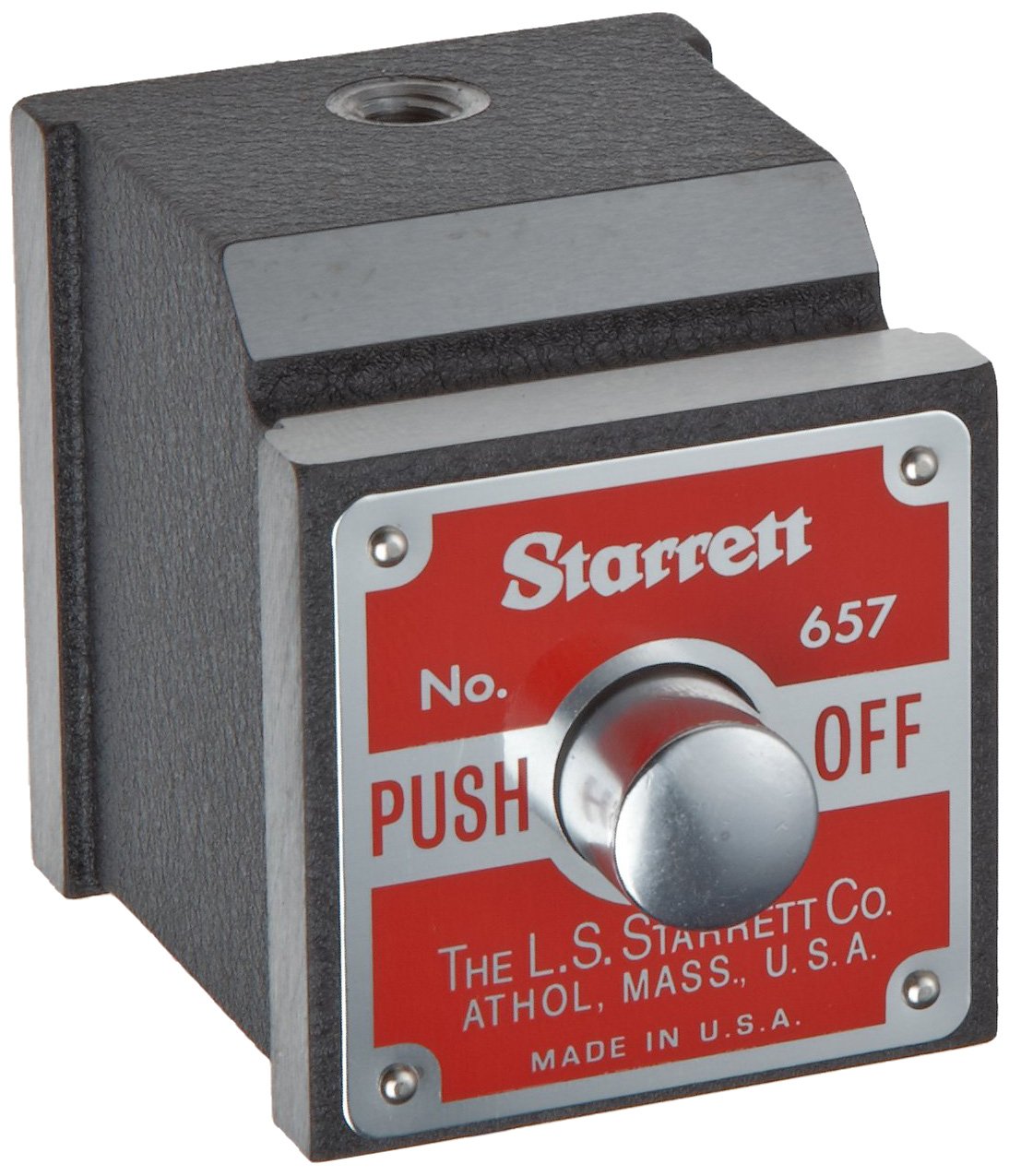

Starrett 657P Magnetic Base Indicator Holder, 1-15/16" Height, 1-5/8" Width, 1-7/8" Depth

Be the first to review this item

ASIN B0006J4G7S

Specifications for this item
Number of Items
1
Catalog Number
657P
Part Number
657P
UPC
049659527575
Size Name
Magnetic Base
Brand Name
Starrett
EAN
0049659527575
Warranty
One Year on defects in material and workmanship
List price:
$124.00
Price:
$110.93
You save:
$13.07 (11%)
Quantity:

In Stock (8)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 2 days 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Compatible with Starrett test, back-plunger, dial, AGD, and miniature-dial indicators, as well as similar indicators from other manufacturers
  • Push-button on/off switch for one-handed operation
  • Grips horizontally, vertically, and upside down for versatility
  • V-step holds the base to arbors, shafts, and other cylindrical items
  • Measures 1-15/16 x 1-5/8 x 1-7/8 inches/50 x 40 x 48 mm (H x W x D)

Package Details

Shipping Weight: 2.6 pounds
Package Size: 10 x 3.8 x 2.7 inches

Product Description

From the Manufacturer

Starrett Magnetic Base

Product Description

Starrett 657P Magnetic Base indicator holder is compatible with indicators from Starrett and other manufacturers, has a push-button on/off switch, a V-step, grips three ways, and measures 1-15/16 x 1-5/8 x 1-7/8 inches/50 x 40 x 48 mm (H x W x D). (H is the vertical distance from lowest to highest point; W is the horizontal distance from left to right; D is the horizontal distance from front to back.) The base has three precision-ground, magnetic contact points to grip horizontally, vertically, and upside-down, and a push-button on/off switch for one-handed operation. A V-step holds the base to arbors, shafts, and other cylindrical items. The base has an additional 1/4-20 tapped hole on one side for mounting the post. The magnetic base has a non-skid, black wrinkle finish on all non-working surfaces. For use with all Starrett test, back-plunger, dial, AGD, and miniature-dial indicators, as well as similar indicators from other manufacturers.

Magnetic bases are magnetic fixtures commonly used in metalworking to hold dial indicators, and are also used in other fields, such as optics. Magnetic bases can assist the user with setting up a workpiece in a milling machine, surface grinder, or other machine tool. The vertical post and rod in a magnetic base connect using swiveling connectors, or snugs. This allows free motion of the arm so that the dial indicator can be moved into position on the workpiece. Many magnetic bases have a V-step, which is a V-shaped notch in the base for holding the base to arbors, shafts, and other cylindrical items. The magnetic base has a circular hole through the center. A round permanent magnet is inserted into this hole, and a handle or button is attached to allow the user to rotate the magnet. Rotating the magnet turns the base on and off as this causes the position of the magnetic field to rotate as well. In the on position, the iron is acting as an extension of the magnet, while in the off position, the magnet is acting as a keeper, preventing the magnetic field from extending through the base.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.
