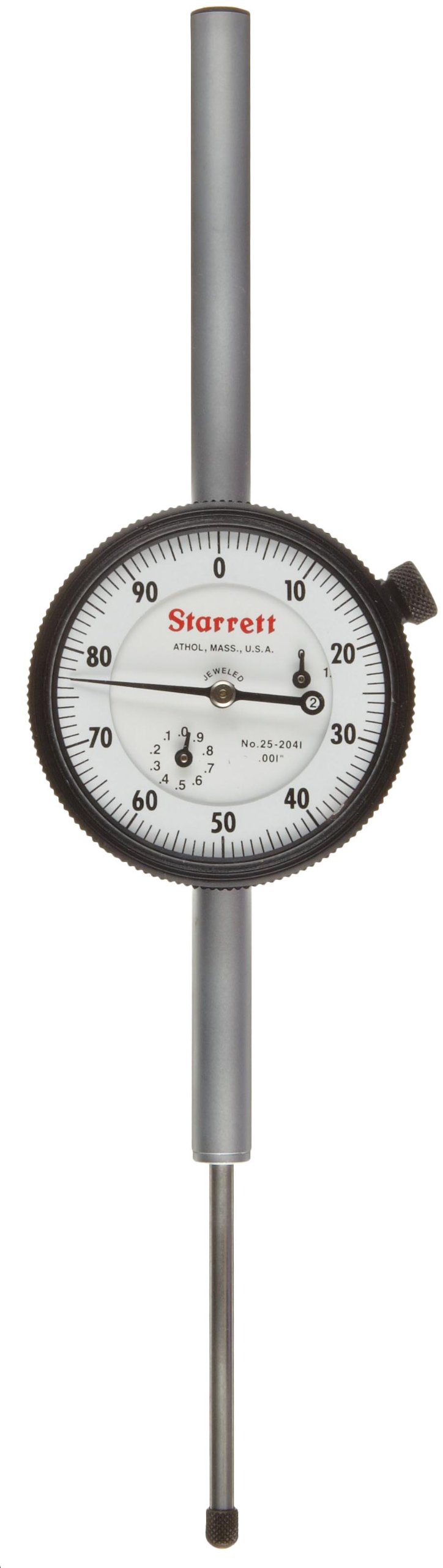

Starrett Dial Indicator, Long Range, Inch, 0.375" Stem Diameter, AGD Compliant

Be the first to review this item

Product Specifications
Manufacturer Series Number
Dial Indicator
Stem Outside Diameter
0.375  inches
UNSPSC Code
41111630
Brand Name
Starrett
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, May 7? Order in-stock items in the next 1 hr 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Range Resolution Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-5 of 5
0-2" 0.001" 25-2041J B0006J4RM2 yes $247.45 Buy Options
0-2" 0.001" 655-2041J B0006J4VEG yes $328.00 Buy Options
0-3" 0.001" 25-3041J B0006J4RNG yes $364.00 Buy Options
0-4" 0.001" 25-4041J B0006J4RO0 yes $431.49 Buy Options
0-5" 0.001" 25-5041J B0006J4Q46 Usually ships in 24 hours $501.00 Buy Options

Key Features

  • 0.001" increments for precise measurements and continuous-reading double dial with direct-reading count hands
  • 0 to 100 counter with one revolution equivalent to 0.1", jeweled bearings
  • Lug-type dial back for mounting dial indicator
  • White-face dial with scratch-resistant crystal face for ease of reading
  • Meets American Gage Design standards for dimensions and operation

Product Description

The Starrett 25 or 655 series dial indicator has 0.001" increments for precise measurements and continuous-reading double dials with direct-reading count hands. It has a 0 to 100 counter with one revolution equivalent to 0.1", and jeweled bearings for smooth operation. The white-face dial with scratch-resistant crystal face is easy to read. It has a lug-type dial back for mounting and meets American Gage Design standards for dimensions and operation. The dial indicator has a stainless-steel stem with a hardened steel spindle for durability, and is suitable for applications such as quality control for machined parts.

Dial indicators are also called dial gauges, probe, and electronic indicators. These precision instruments measure small linear distances and object sizes. The dial magnifies the measurement so that it can be easily read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
