Starrett 434ME-300 Forged, Hardened Square, Center And Reversible Protractor Heads With Blade Combination Set, Smooth Black Enamel Finish, 300mm Size

Be the first to review this item

ASIN B000VDRV26

Specifications for this item
Number of Items
1
Part Number
434ME-300
UPC
049659515541
Brand Name
Starrett
EAN
0049659515541
UNSPSC Code
27111803
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 3 days 2 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Combination set with square head, center head, reversible protractor head, and 300 mm (11.75") blade
  • Blade is made of hardened steel; protractor head is cast iron with a black enamel finish, and square and center heads are forged, hardened steel with smooth black enamel finish
  • Blade has 1/2 mm and 1/32" graduations on one side, and 1 mm and 1/64" graduations on reverse side
  • Protractor head has revolving turrets with direct-reading double graduations, 0 to 180 in opposite directions, for accurate reading of angles above or below the blade
  • A spirit level in the square head and in the protractor head to determine if reference surface is level

Package Details

Shipping Weight: 3.6 pounds
Package Size: 13.6 x 7.9 x 2 inches

Product Description

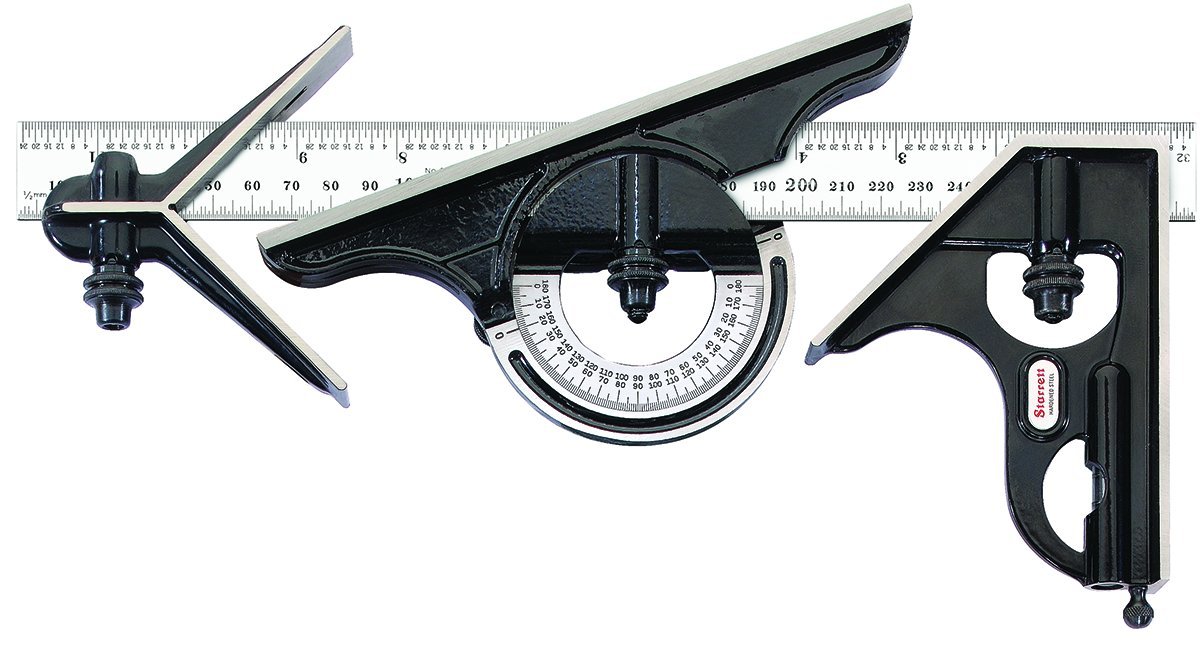

The Starrett 434ME-300 Combination Set has a square head, center head, reversible protractor head, and 300 mm (11.75") blade with 1/2 mm and 1/32" graduations on one side, and 1 mm and 1/64" graduations on reverse side. The protractor head is cast iron with a black enamel finish and has revolving turrets with direct-reading double graduations of 0 to 180° in opposite directions, for accurate reading of angles above or below the blade. It is reversible, with shoulders on both the front and back for reading on both sides.

The blade is made of hardened steel, and the square and center heads are forged, hardened steel with a smooth black enamel finish. The center head accurately locates the center of cylindrical or square work. The square head has a scriber, a 90° square face, and a 45° miter face. It can be used for scribing right angles and parallel lines, or as a tri-square, miter, depth gauge, height gauge, or level. All heads have reversible bolt locks, and the square head and protractor head each have a spirit level. The combination set comes in a protective case.

Protractors are tools that measure specific angles, which allow users to create and replicate desired angles. The tools include a stationary base and movable rule, usually connected by a scale that may be digital or manual. They are useful in a wide range of applications, such as measuring crown molding and installing baseboards. A protractor can be included as part of a combination set, along with a center and a square. A center accurately locates the center of a circle or cylindrical rod. A square is used to scribe right angles and parallel lines, calibrate miter and table saws, or as a miter, height gauge, or depth gauge.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
