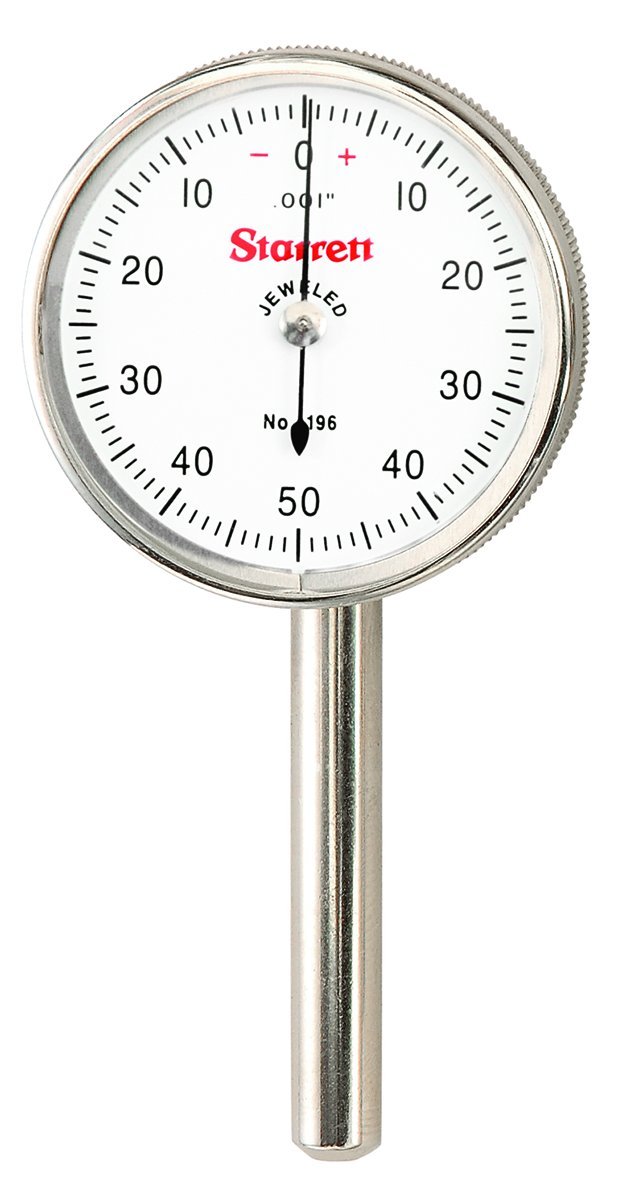

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Starrett 196 Series Universal Dial Indicator, Back Plunger, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Universal Dial Indicator
Item Shape
Back Plunger
UNSPSC Code
41111630
Brand Name
Starrett
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Mar 5? Order in-stock items in the next 13 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Range Resolution Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-5 of 5
0-0.2" 0.001" 196A1Z B00008IHTF yes $228.44 Buy Options
0-0.2" 0.001" 196A5Z B000VDZEGG yes $205.52 Buy Options
0-0.2" 0.001" 196B1 B0006J4DIK yes $124.85 Buy Options
0-0.2" 0.001" 196B1 W/SLC B003XU78V8 yes $139.00 Buy Options
0-0.2" 0.001" 196B5 B000VDRUE0 yes $135.45 Buy Options

Key Features

  • 196 series dial indicator measures 0 to 0.2" with 0.001" graduations for precise measurement of rise or drop in work piece
  • 0 to 100 counter with one revolution equivalent to 0.1"
  • Plunger-type dial back with three contact point sizes, 1/2", 5/16", and 1/8" diameter
  • White-face dial with scratch-resistant crystal face for ease of reading
  • 1/4" diameter stainless-steel shank for mounting

Product Description

The Starrett 196 series universal dial indicator has a 0 to 0.2" measuring range with 0.001" graduations for precise measurement of the rise or drop in a work piece. It has a 0 to 100 counter with one revolution equivalent to 0.1", and the white-face dial has a scratch-resistant crystal face for ease of reading. The plunger on the back of the dial comes with 1/2", 5/16", and 1/8" diameter contact points. The dial indicator has a 1/4" diameter stainless-steel shank for mounting. Some dial indicator sets include an adapter, a standard letter of certification, and clamp, tool post holder, snug, and hole attachments. The dial indicator is suitable for applications such as quality control for machined parts.

Dial indicators are also called dial gauges, probe, and electronic indicators. These precision instruments measure small linear distances and object sizes. The dial magnifies the measurement so that it can be easily read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
