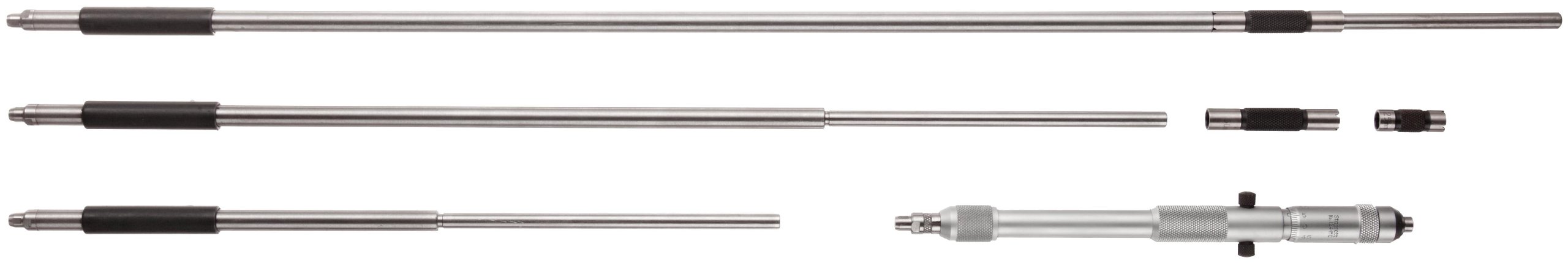

Starrett 124MC Solid-Rod Vernier Inside Micrometers Set, 200-800mm Range, 0.01mm Graduation, +/-0.003" Accuracy, Without Case

Be the first to review this item

ASIN B000VDRQP8

Specifications for this item
Range
200-800mm
Travel
25  millimeters
Part Number
124MC
Resolution
0.01mm
Brand Name
Starrett
Measurement Accuracy
+/-0.003"
Maximum Measurement
200-800mm
Style Name
Vernier
Special Features
Without Case
Number of Items
1
UPC
049659505498
EAN
0049659505498
Gradient Spacing
0.01  millimeters
Manufacturer Series Number
Solid-Rod Inside Micrometers Set
System of Measurement
Metric
Price:
$432.00
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 10 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measuring rods are solid and assembled on one side of the micrometer head
  • Without case, insulated rods marked with length
  • Hardened and ground anvils on rods, adjustable for length, head anvil is hardened and ground
  • Quick reading figures-every thousandth numbered on inch reading tools
  • A 165mm long convenient handle is available to provide reach for use in deep holes, handle screws into the micrometer head in place of the dummy screw, which is opposite a rod lock screw

Package Details

Shipping Weight: 2 pounds
Package Size: 24.7 x 2.5 x 1.1 inches

Product Description

These are the most popular inside micrometers because of their lightness, ease of use, and range. They are very useful for measuring inside diameters of cylinders and rings, measuring parallel surfaces, etc. The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position. When assembling rods to the A and B heads, the reading line on the micrometer head should be lined up with the marking on each rod (except for the 50-75mm rods). Rod diameters are approximately 8.5mm. Each rod has individual length adjustment for the anvil by means of special wrenches furnished. Movement of screw: 25mm, number of measuring rods: 4, Number of spacing collars: One 25mm Two 50mm.
