Starrett 124DZ Solid-Rod Vernier Inside Micrometer Set, 2-32" Range, 0.001" Graduation, +/-0.0001" Accuracy, With Case

Be the first to review this item

ASIN B0006J4S1W

Specifications for this item
Range
2-32"
Travel
0.5 and 1  inches
Part Number
124DZ
Resolution
0.001"
Brand Name
Starrett
Measurement Accuracy
+/-0.0001"
Maximum Measurement
2-32"
Style Name
Vernier
Special Features
With Case
Number of Items
1
UPC
049659505542
Manufacturer Series Number
Solid-Rod Inside Micrometer Set
EAN
0049659505542
Gradient Spacing
0.001  inches
UNSPSC Code
41111601
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Aug 26? Order in-stock items in the next 1 day 23 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Spans from 2 to 32", micrometer head graduated to 0.001"
  • Measures the inside diameters of cylinders, rings, and parallel surfaces
  • Interchangeable measuring rods and spacing collars provide a range of measurement
  • Solid steel rods provide strength and rigidity
  • Rust-resistant, satin chrome finish is glare-free

Package Details

Shipping Weight: 5.05 pounds
Package Size: 27 x 6.4 x 1.6 inches

Product Description

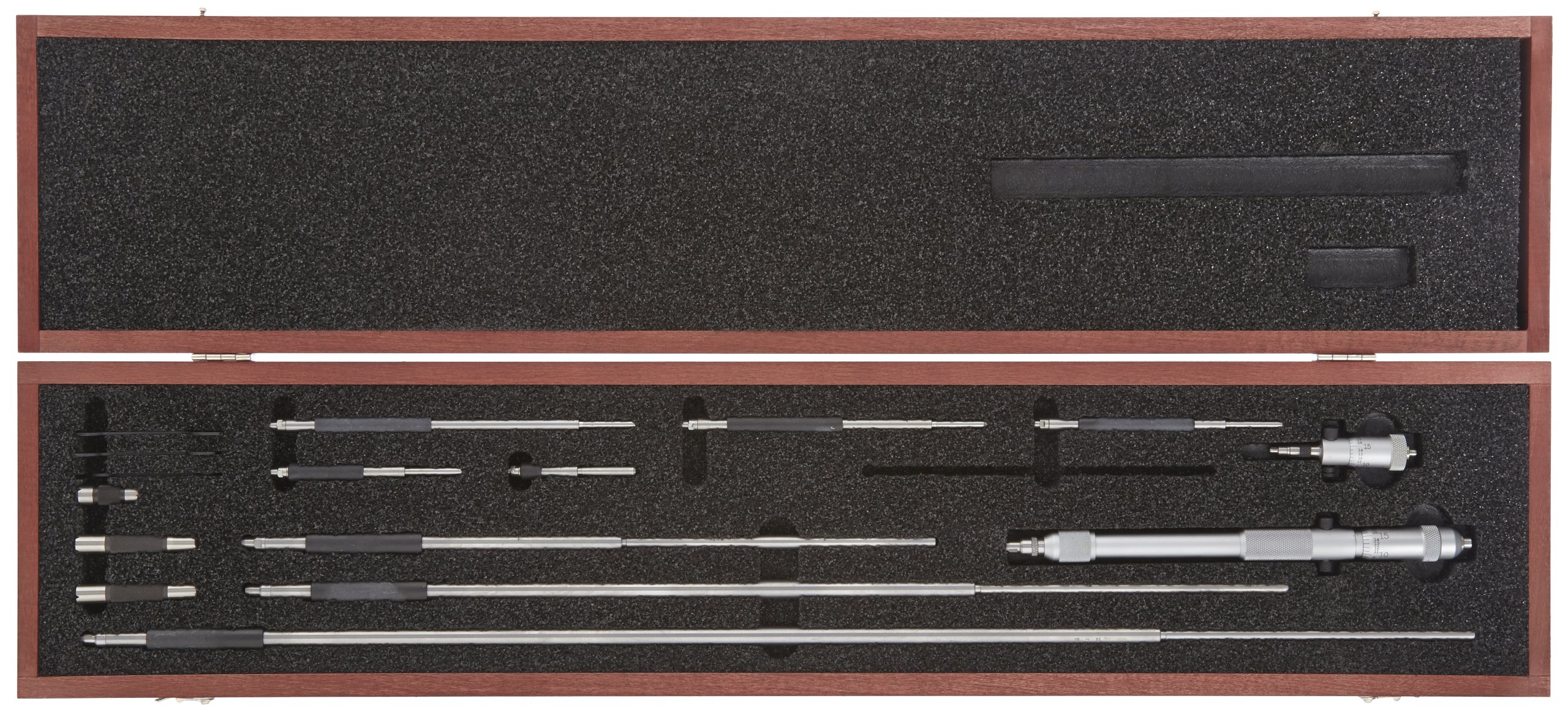

The Starrett 124DZ solid-rod inside micrometer set includes two micrometer heads, each graduated to 0.001”, a set of ten interchangeable and adjustable measuring rods, and four spacing collars that can be used in combination to span from 2 to 32”. These micrometers are designed for measuring the inside diameters of large cylinders, rings, and parallel surfaces. The micrometer set comes with wrenches for making needed adjustments and a protective wood case for storage.

The micrometer’s measuring rods are marked with their length range, and have adjustable anvils that are hardened and ground for accuracy. The rods are made of solid steel for lightness and rigidity, are insulated to prevent heat expansion when held in the hand, and have a rust-resistant, satin chrome finish. Rods adjustable to 8” in length are 0.25” (6mm) in diameter with a compatible 0.5” spacing collar, while rods adjustable from 8” and greater are 11/32” (8.5 mm) in diameter with compatible 1” and 2” spacing collars. Rods adjustable to 8” attach to the micrometer head with a screw movement of 0.5” for each full turn, while rods adjustable from 8” and greater attach to the micrometer head with a screw movement of 1” for each full turn. All rods attach to the micrometer heads by a locking shoulder that grips the rod securely into place. Both micrometer heads have a knurled friction thimble that supports adjustment with uniform pressure, quick-reading graduations to 0.001”, and a rust-resistant, glare-free, satin chrome finish.

Micrometers are precision measuring instruments that use a calibrated screw to measure distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.

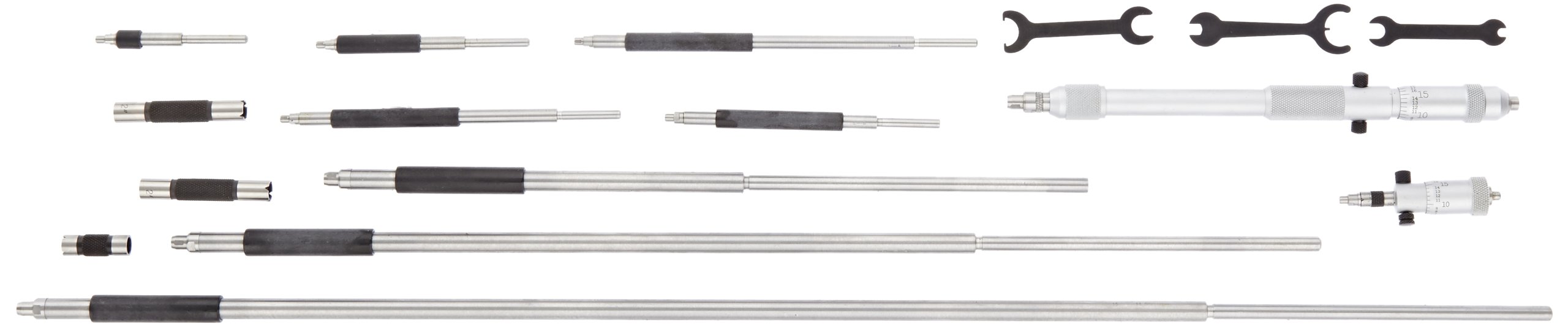

What’s in the Box?

  • Starrett H124A/B micrometer head
  • Starrett H124C micrometer head
  • 2” measuring rod
  • 3 to 4” adjustable measuring rod
  • 4 to 5” adjustable measuring rod
  • 5 to 6” adjustable measuring rod
  • 3 to 7” adjustable measuring rod
  • 7 to 8” adjustable measuring rod
  • 8 to 14” adjustable measuring rod
  • 14 to 20” adjustable measuring rod
  • 20 to 36” adjustable measuring rod
  • 26 to 32” adjustable measuring rod
  • 0.5” spacing collar
  • 1” spacing collar
  • Two 2” spacing collars
  • Three wrenches
  • Fitted case
