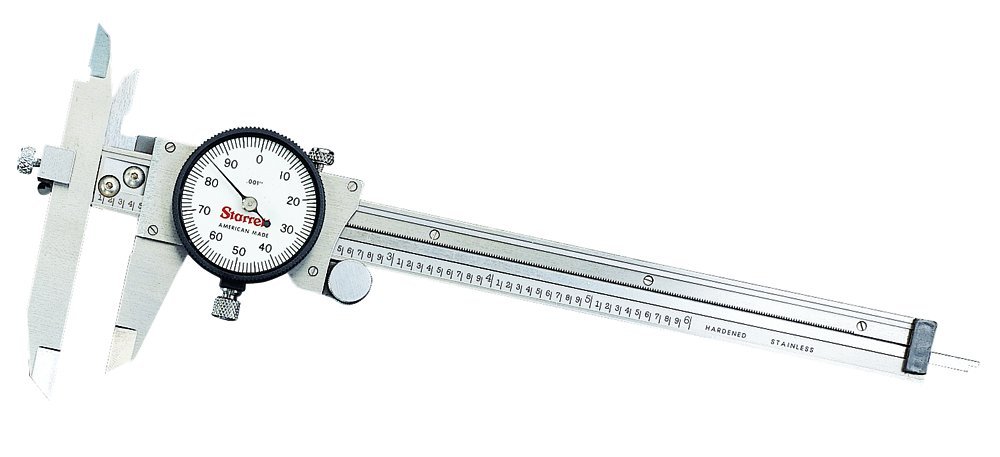

Starrett 120JZ-6 Dial Caliper, Stainless Steel, Offset Jaw, White Face, 0-6" Range, +/-0.001" Accuracy, 0.001" Resolution

Be the first to review this item

ASIN B000VDZE8E

Specifications for this item
Range
0-6"
Part Number
120JZ-6
Resolution
0.001"
Item Depth
N/A
Brand Name
Starrett
Measurement Accuracy
+/-0.001"
Specification Met
N/A
Maximum Measurement
0-6"
Style Name
Offset Dial
Special Features
Thumb roller, fine-adjustment, anti-backlash control
Number of Items
1
Specific Uses For Product
Inside , Outside
Color Name
White
Material Type
Stainless Steel
UPC
049659658668
Manufacturer Series Number
120 Series
EAN
0049659658668
Tip Description
Offset
UNSPSC Code
41111600
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 17? Order in-stock items in the next 7 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Precise dial graduations of 0.001", with one revolution equivalent to 0.100"
  • Thumb-operated fine adjustment roll allows for one-handed use
  • Lock screw holds the sliding jaw in position, to help ensure consistent measurement
  • Rack teeth point down to keep foreign matter from clogging the gear, to help prevent measurement error
  • Versatile adjustable jaw measures different planes that cannot be reached with a standard caliper

Package Details

Shipping Weight: 1.4 pounds
Package Size: 10.4 x 4.5 x 1.5 inches

Product Description

The Starrett 120JZ-6 dial caliper measures 0 to 6 inches with 0.001” accuracy and has an adjustable jaw for measuring different planes that cannot be reached with a standard caliper. The adjustable 3-1/2” reference jaw can be made either longer or shorter than the sliding jaw. This handy measuring tool allows for reliable and accurate readings with the sharp, black graduations on the no-glare, satin-finished bar, crisp lines on the white dial face, and knife edge contacts for inside and outside measurements.

One full revolution of the dial is equivalent to 0.100”. The jaw depths on this caliper are approximately 1-1/2” for the outside measuring jaws and 5/8" on the inside measuring jaws. The knife-edge contacts can be used to scribe parallel lines on the workpiece. This caliper can be used with one hand through operating the fine adjustment roll with the thumb. The lock screw locks the dial bezel and holds the sliding jaw in position. The depth rod is integrated into the rack of the caliper, unlike many calipers which offer a detachable depth rod, or none at all. The hardened stainless steel components, including the bar, measuring surfaces, rack, gears, and depth rod, offer corrosion resistance, increased accuracy, and long life. Positive split gear anti-backlash control offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the caliper controls, which prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash; split gear systems actually split the gear into two gears, each half as thick as the original gear. One of these gears is then fixed to the shaft while the other gear is allowed to turn. The free-turning gear is connected to coil springs that rotate it until all the backlash in the control system has been eliminated. The rack teeth point down to keep foreign matter from clogging the gear operations. This prevents measurement errors where metal chips could interfere with proper caliper operation.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used also for measuring size differential between two objects. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

The L. S. Starrett Company was founded in 1880, originally manufacturing bench vises, squares, and other tools. They acquired other companies throughout the years, expanding their services into making precision measurement instruments and tools, such as calipers, micrometers, saw blades, and gauges. Starrett is headquartered in Athol, Massachusetts and has manufacturing facilities in Brazil, the United Kingdom, China, and other locations.
