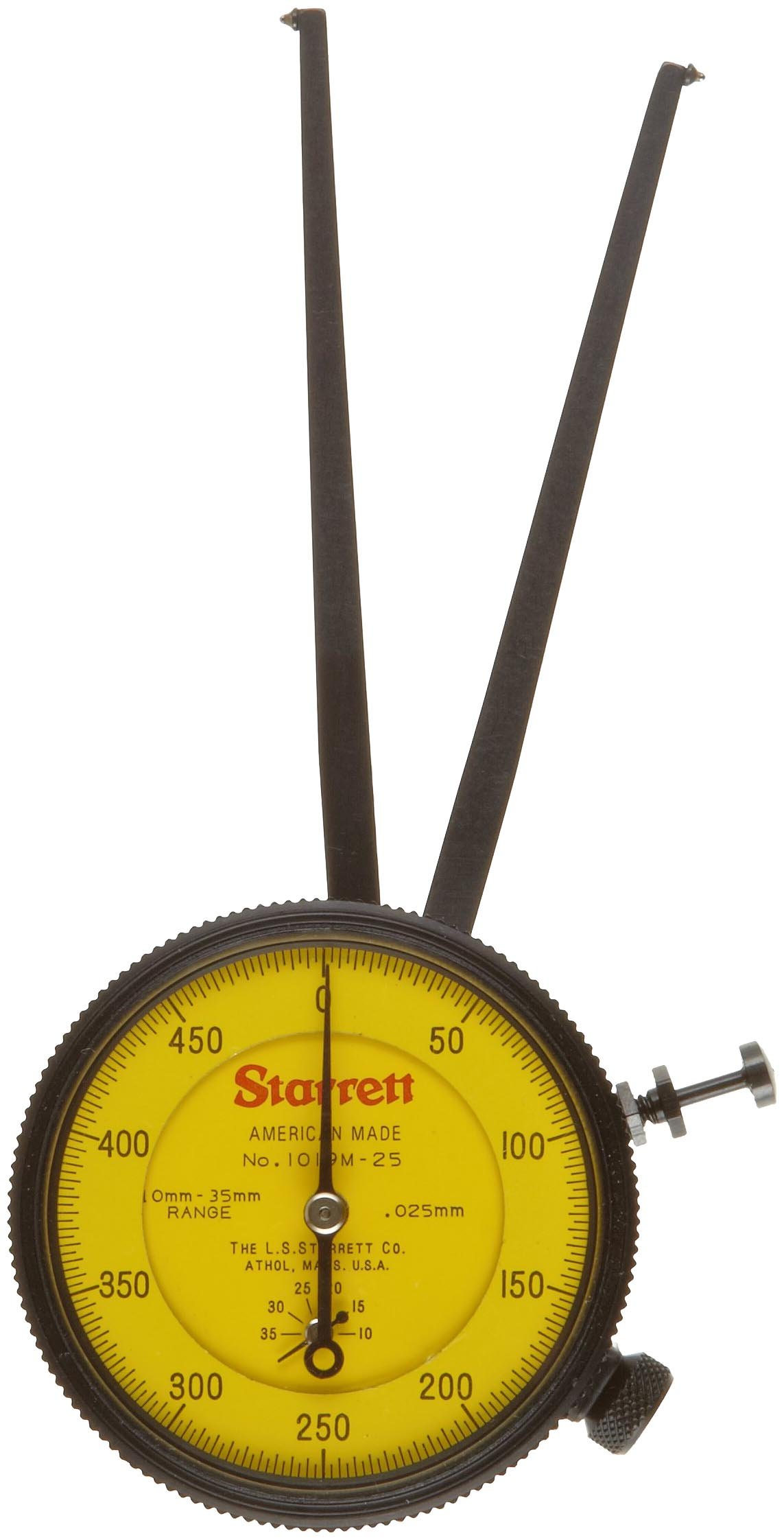

Starrett 1019M-25 Caliper Gauge, Pointed Jaw, Yellow Face, 10-35mm Range, +/-2mm Accuracy, 0.025mm Resolution

Be the first to review this item

ASIN B000VE0QWW

Specifications for this item
Range
10-35mm
Part Number
1019M-25
Resolution
0.025mm
Item Depth
N/A
Brand Name
Starrett
Measurement Accuracy
+/-2mm
Specification Met
N/A
Maximum Measurement
10-35mm
Style Name
Internal
Special Features
Spring-type, jewel bearings, rotatable bezel
Number of Items
1
Specific Uses For Product
Inside
Color Name
Yellow
Material Type
Steel
UPC
049659671209
Manufacturer Series Number
1019M Series
EAN
0049659671209
Tip Description
Pointed
UNSPSC Code
41111600
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 1 hr 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For convenient and accurate inner diameter measurements
  • Dial graduations of 0.025 mm with range equaling 25 mm to 75 mm
  • Spring-loaded for constant pressure and positive contact, to ensure reliable measurements
  • 0.040" (1.016 mm) diameter carbide ball measuring contacts for long life and wear resistance
  • Rotatable bezel for zero setting and bezel lock

Package Details

Shipping Weight: 0.6 pounds
Package Size: 7.7 x 5.4 x 2.4 inches

Product Description

The Starrett 1019M-25 internal dial caliper gauge opens from 25 mm to 75 mm with a 3-1/4” (approximately 80 mm) arm length, and has carbide ball contacts for longer life and wear resistance. The arms reach into the workpiece, such as in bores of castings and inside readings in fabrications, to easily measure small sections of that workpiece. The retraction lever allows for one-handed use and gauge control, while a direct reading dial hand is accurate.

Dial indicators, also called dial gauges or probe indicators, are precision measuring tools used to accurately measure small linear distances and object sizes. The dial magnifies the measurement so that it can more easily be read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Standard dial indicators measure the displacement along the axis of the indicator. Dial indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.

The L. S. Starrett Company was founded in 1880, originally manufacturing bench vises, squares, and other tools. They acquired other companies throughout the years, expanding their services into making precision measurement instruments and tools, such as calipers, micrometers, saw blades, and gauges. Starrett is headquartered in Athol, Massachusetts and has manufacturing facilities in Brazil, the United Kingdom, China, and other locations.
