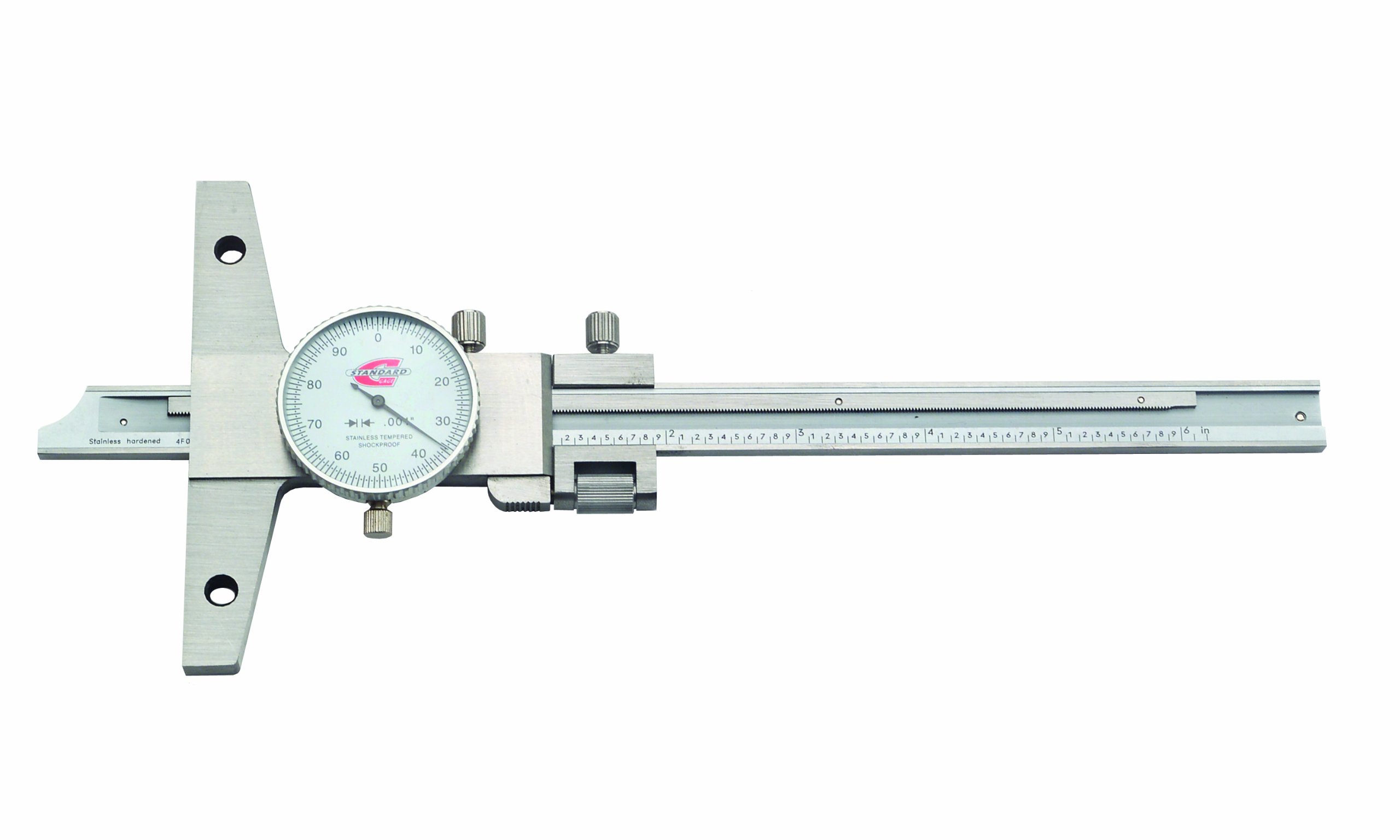

Standard Gauge Caliper-Type Depth Gauge with Removable Bridge, Inch

Be the first to review this item

Product Specifications
Material Type
Stainless Steel
Brand Name
Standard Gage
Manufacturer Series Number
Removable Bridge
Style Name
Removable Bridge
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 20 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-2 of 2
0-12" 0.001" +/-0.03mm 00524032 B004ZZS3JQ yes $79.47 Buy Options
0-8" 0.001" +/-0.03mm 00524031 B004ZZS3A0 yes $59.73 Buy Options

Key Features

  • Measurement range of 0 to 6", 0 to 8", or 0 to 12" with resolution of 0.001mm
  • Includes removable bridge for increased measurement capacity
  • 0.100" travel per revolution, white dial face
  • Stainless steel for durability and accurate measurements
  • Includes fitted case

Product Description

The Standard Gauge caliper-type depth gauge has a measurement range of 0 to 6", 0 to 8", or 0 to 12" and a resolution (or smallest graduation interval) of 0.001". Gauges are accurate to +/-0.02mm or 0.03mm. It includes a removable bridge for increased measurement capacity. The gauge has 0.100" travel per revolution, shown on a white dial face, and it comes in a fitted case. This caliper-type depth gauge is suitable for precise measurement in a variety of manufacturing, machining, and mechanical engineering applications.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Standard Gage manufactures precision measuring equipment and metrology hand tools. The company is headquartered in North Kingstown, RI.
