Standard Gage 00534020 Digital Caliper, Stainless Steel, Battery Powered, Inch/Metric, 0-6" Range, +/-0.001" Accuracy, 0.0005" Resolution, Meets DIN 862 Specifications

Be the first to review this item

ASIN B005002TS6

Specifications for this item
Range
0-6"
Part Number
00534020
Resolution
0.0005"
Item Depth
1.6"
Brand Name
Standard Gage
Measurement Accuracy
+/-0.001"
Specification Met
DIN 862
Maximum Measurement
0-6"
Power Source Type
Battery
Style Name
LCD
Special Features
Thumb roller, inspection report
Number of Items
1
Specific Uses For Product
Depth , Inside , Outside , Step
Material Type
Stainless Steel
UPC
622419469546
Manufacturer Series Number
Value Model
EAN
0622419469546
Tip Description
Standard
UNSPSC Code
41111600
System of Measurement
Inch/Metric

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures 0" - 6" and 0 - 150 mm with 0.0005" and 0.02 mm accuracy and resolution to 0.0005" and 0.01 mm
  • Stainless steel beam and slide for corrosion resistance and to help extend caliper life
  • Thumb roller for fine adjustments
  • Meets Deutsches Institut für Normung (DIN) 862 requirements and testing standards for calipers

Package Details

Shipping Weight: 0.7 pounds
Package Size: 9.7 x 3.7 x 1.2 inches

Product Description

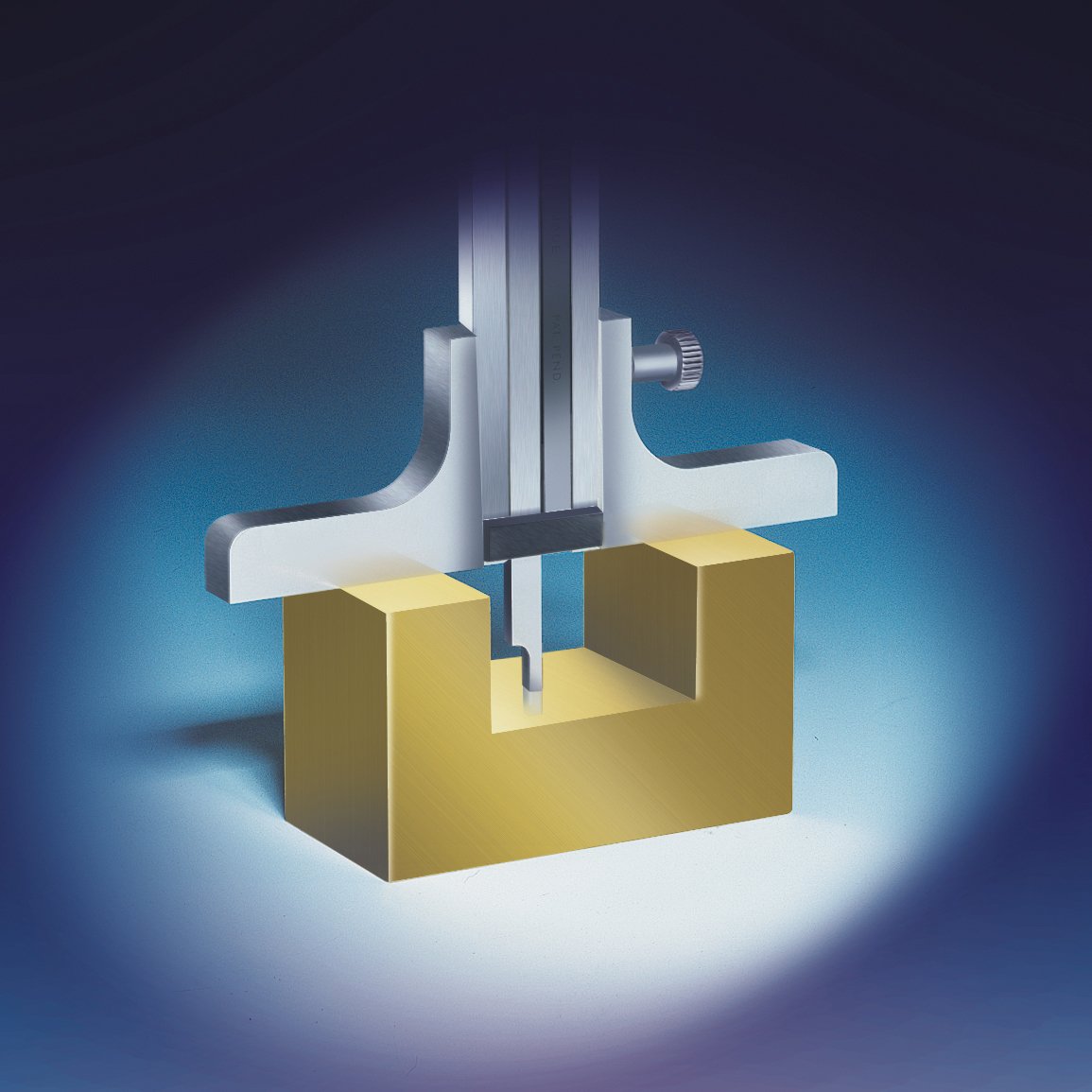

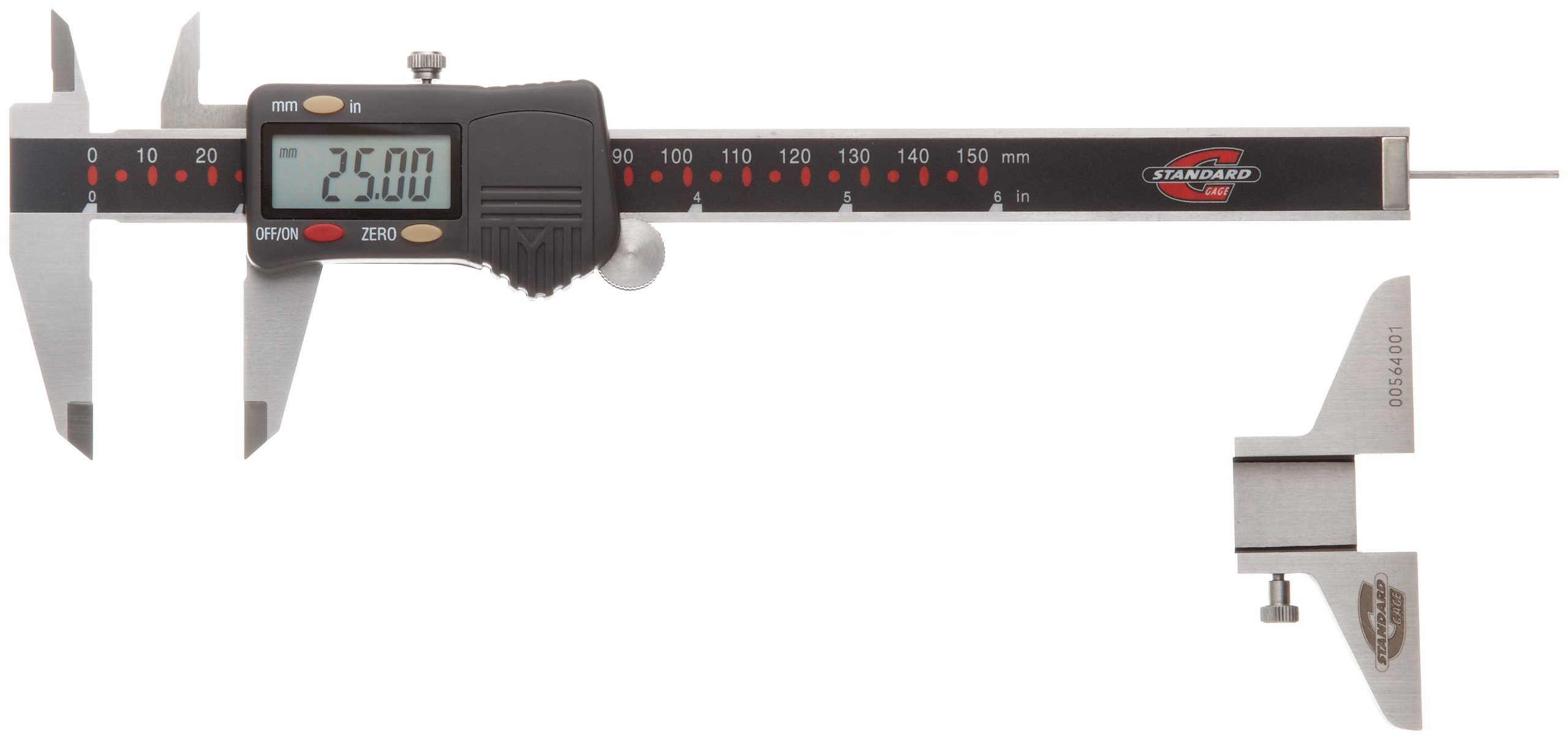

The Standard Gage 00534020 digital caliper measures 0 - 6 inches and 0 to 150 mm with 0.0005” and 0.02 mm accuracy and resolution to 0.0005 inches and 0.01 mm. It has a stainless steel beam and slide for corrosion resistance and to help extend caliper life, thumb roller for fine adjustments, 1.6 inches (40-mm) jaws, and includes a depth rod to allow for depth measurement in addition to the standard inner diameter (ID) and outer diameter (OD) measurements that most slide calipers can perform. The LCD display is easier to read than a vernier caliper.

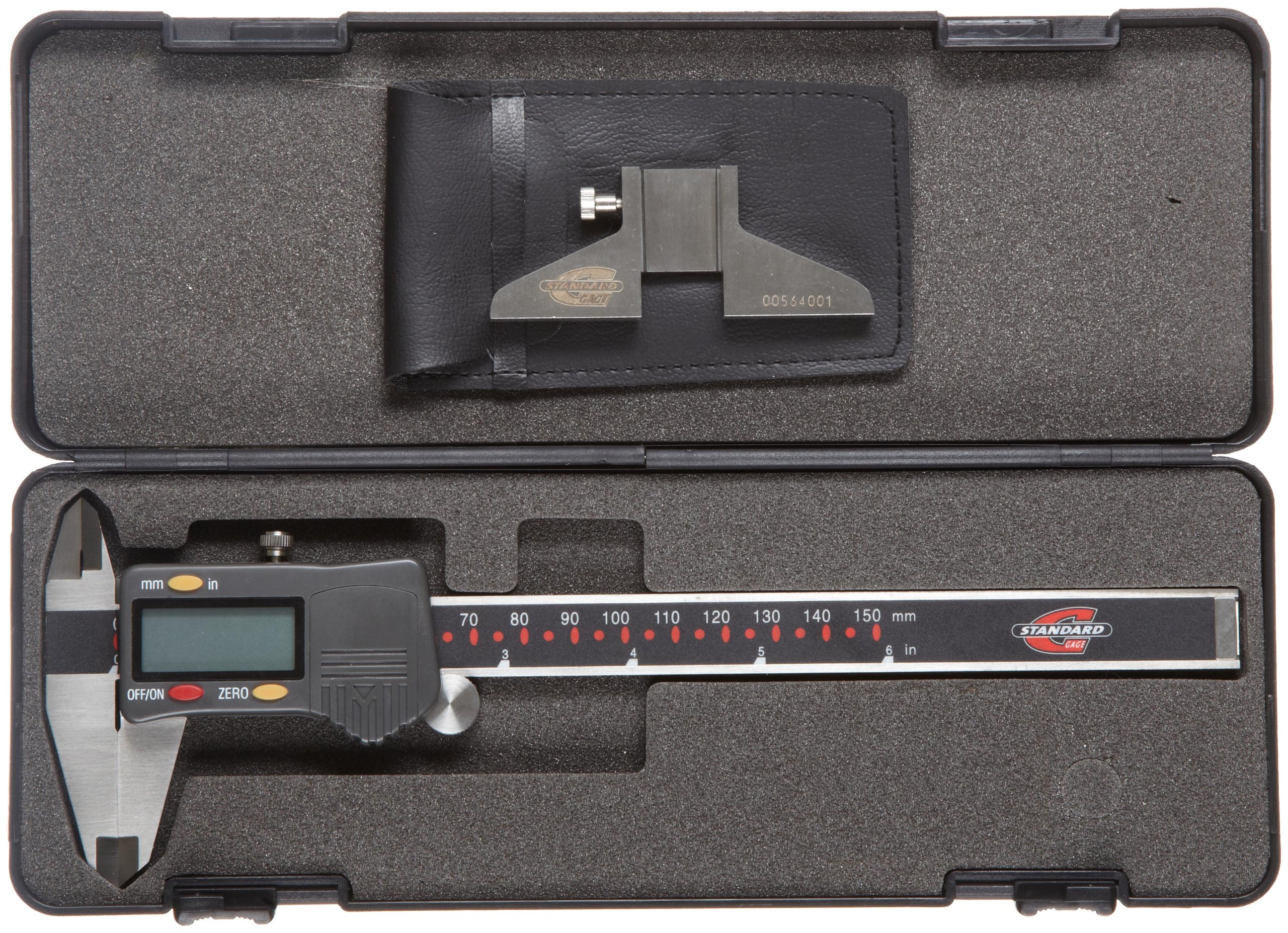

The caliper can be used with one hand by operating the fine adjustment roll with the thumb. The single battery is accessible, on the front of the plastic casing next to the LCD. To zero the caliper at any position, use the zero button. Linear accuracy meets the international Deutsches Institut fur Normung 862: Vernier Calipers Requirements and Testing (DIN 862) standards. Approximate jaw depth for the outside measuring jaws is 1.6” (40 mm). This caliper comes in a fitted plastic case with inspection certificate to help ensure conformity to technical specifications.

Calipers measure the distance between two opposing sides of an object. They make inner diameter (ID), outer diameter (OD), depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used also for measuring size differential between two objects. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

Standard Gage manufactures precision measuring equipment and metrology hand tools, and is a product line by Hexagon Metrology. Standard Gage is headquartered in North Kingstown, RI.

What’s in the Box:

  • Standard Gage 00534020 digital caliper

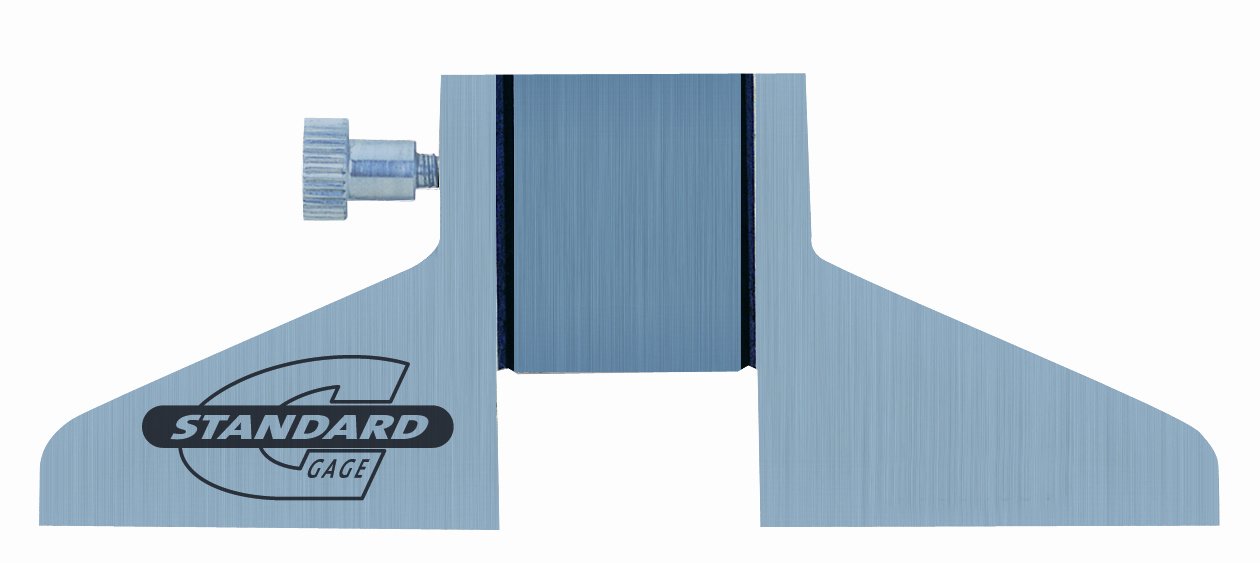

  • Depth rod
  • 3V lithium CR2032 battery
  • Inspection certificate
  • Fitted plastic case
