Standard Gage 07734002 Vernier Scribing Height Gauge, 0-20" Measuring Range

Be the first to review this item

ASIN B00500385E

Specifications for this item
Number of Items
1
Range
0-20"
Material Type
Stainless Steel
Part Number
07734002
UPC
622419468259
Brand Name
Standard Gage
EAN
0622419468259
Maximum Measurement
0-20"
UNSPSC Code
41111614
Style Name
Vernier
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 23 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0" - 20"/0 - 500 mm, and graduated to 0.001"/0.02 mm
  • Vernier scale for precise measurement in inches and metric
  • Hand-operated slider with fine-adjustment carriage for precise feed
  • Carbide-tipped scriber for hardness and to help prolong life
  • Satin chrome finish on the scales helps resist rust and is glare-free

Package Details

Shipping Weight: 16.95 pounds
Package Size: 27 x 11.9 x 4.5 inches

Product Description

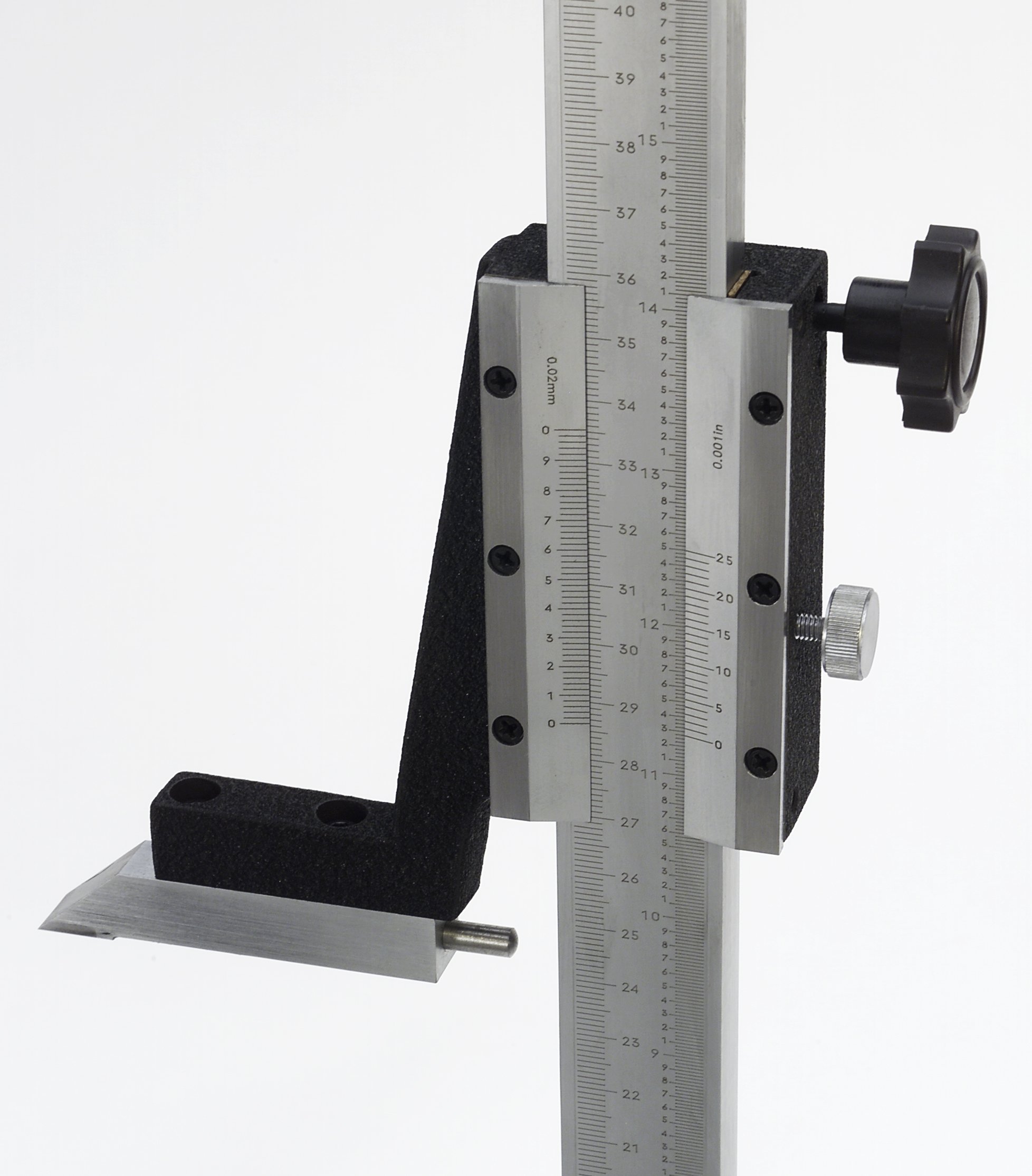

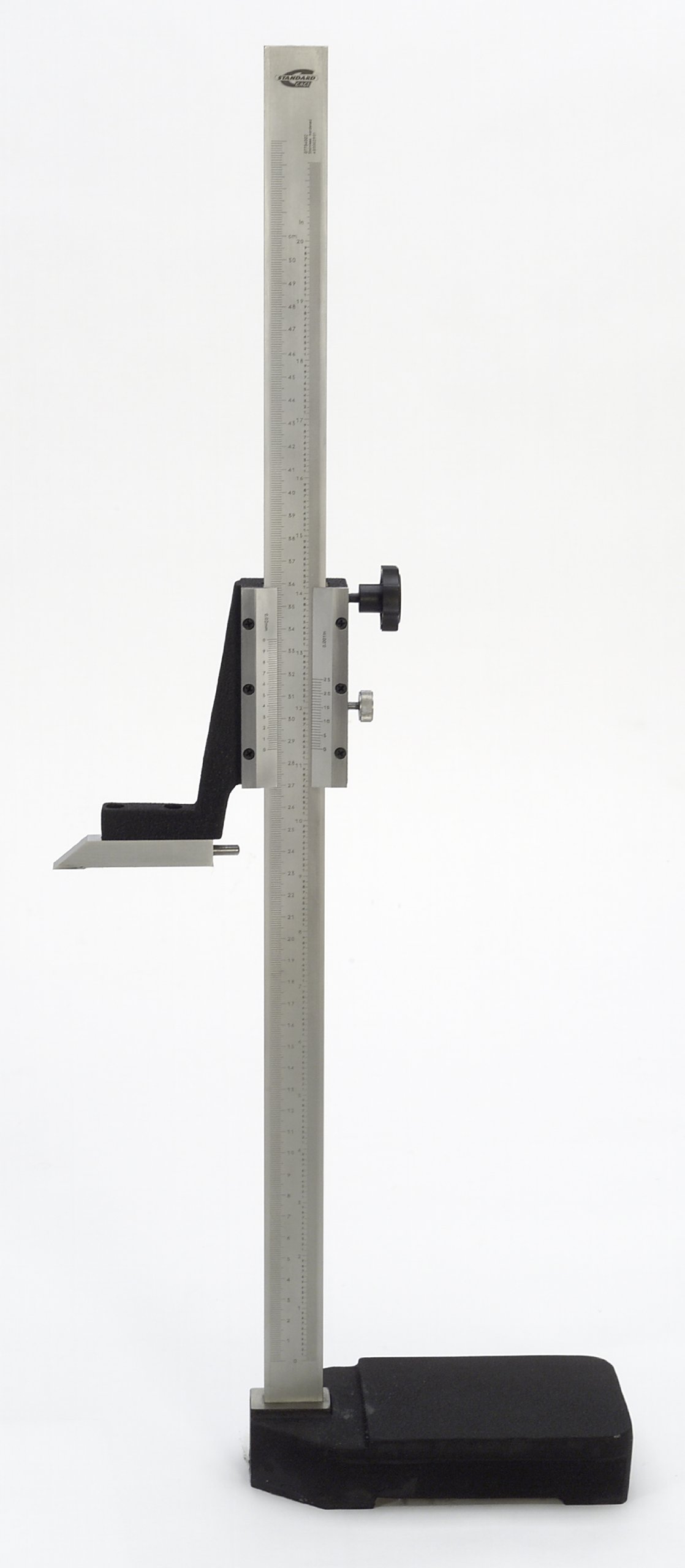

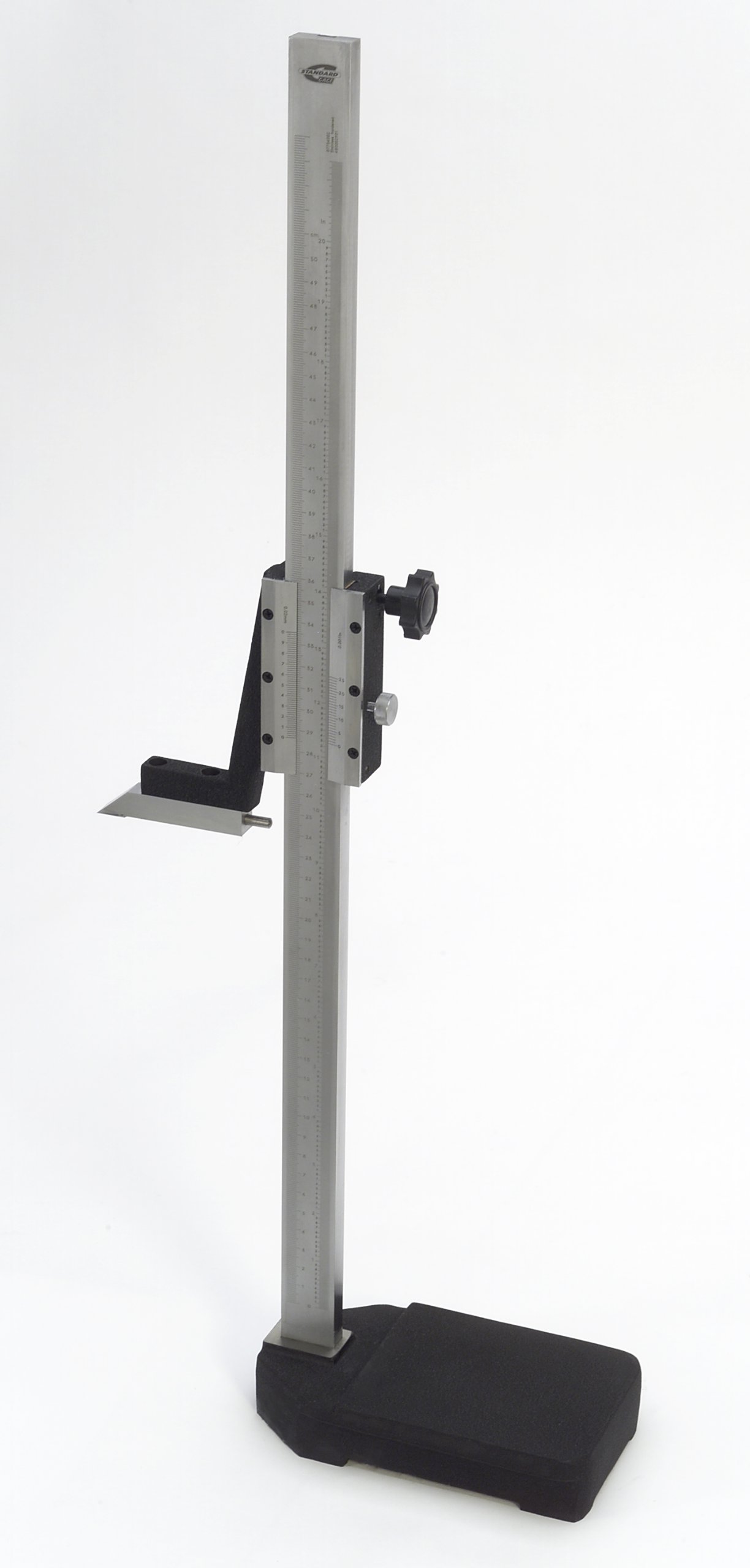

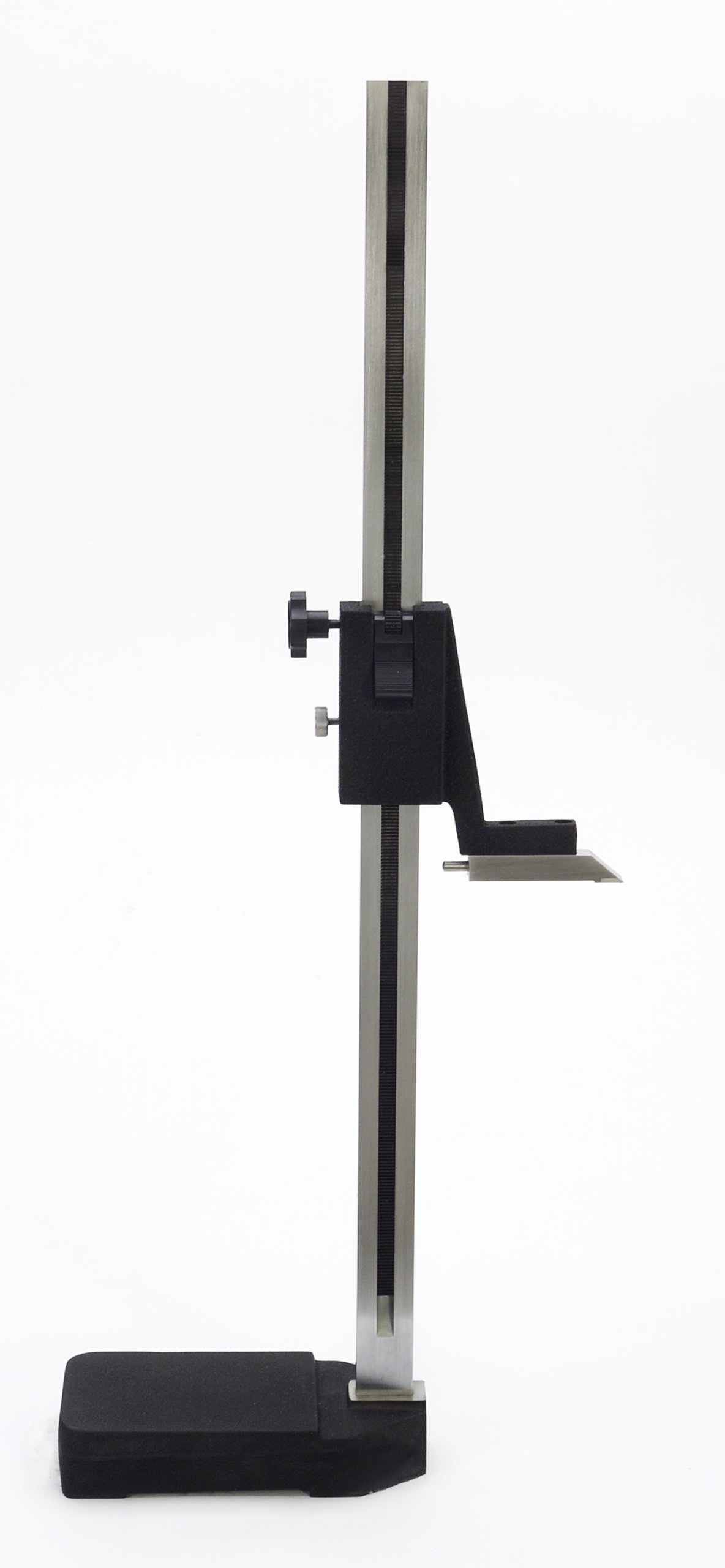

The Standard Gage 07734002 vernier scribing height gauge has a measurement range of 0” - 20”/0 - 500 mm, and is graduated to 0.001”/0.02 mm. Graduations on the right scale are in standard inch units, while graduations on the left scale are in metric units.

The scriber, used to mark a position on a workpiece, is 18.5 mm x 90 mm (H x W), and is carbide-tipped for hardness and to help prolong life. The slider and beam are made of stainless steel. The scales and vernier backgrounds have a glare-free satin chrome finish that helps resist rust. The unit comes with a protective case and inspection report.

A vernier scale provides precise measurement through a second sliding scale that indicates where measurement lies between marks on the main scale. A calibrated screw mechanism supports fine, uniform slider adjustments.

Height gauges, also called gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. The vertical position of the gauge and its attached pointer are changed by turning a calibrated screw, or one or more feed wheels. Recorded rotations are read from a scale, a dial, counters, and/or an electronic display. A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a workpiece by scratching its surface. On compatible units, the scriber may be replaced by an electronic touch-signal probe. Height gauges are typically used in manufacturing, machining, and mechanical engineering.

Standard Gage manufactures precision measuring equipment and metrology hand tools, and is a product line by Hexagon Metrology. Standard Gage is headquartered in North Kingstown, RI.

What’s in the Box?
  • Standard Gage 07734002 Vernier Scribing Height Gauge
  • Protective case
  • Inspection report
