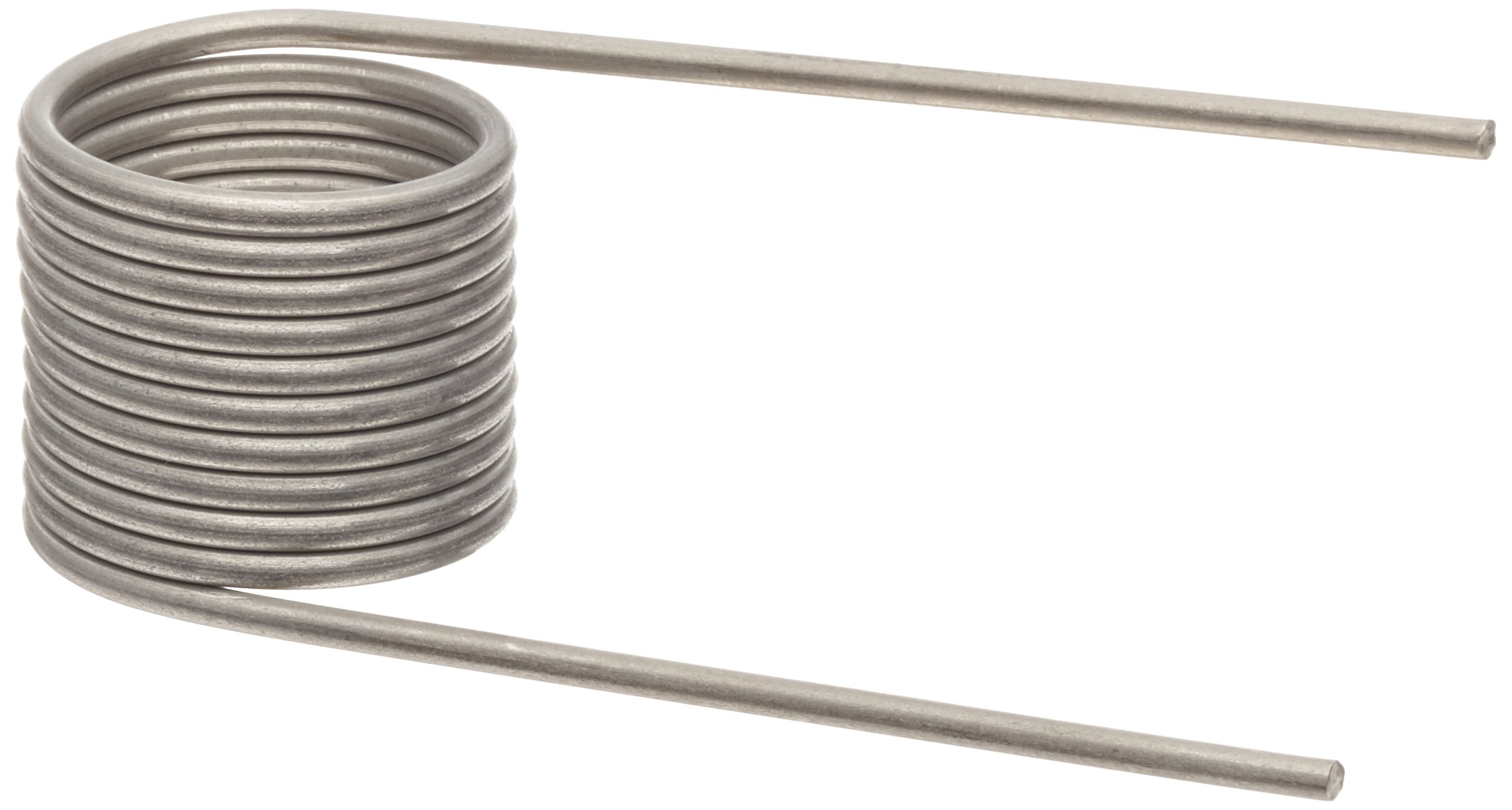

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Torsion Spring, Stainless Steel 302, Left Hand Wind, 360 Degree Deflection

Be the first to review this item

Product Specifications
Brand Name
Associated Spring Raymond
Deflection Angle
360  Degrees
Material Type
Stainless Steel 302
System of Measurement
Inch

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, May 23? Order in-stock items in the next 5 hours 39 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 20 of 30 Show All
Wire Size Outside Diameter Specifications Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All
Currently showing 20 of 30 Show All
0.035" 0.471" 1.25" Leg Length, 0.312" Mandrel Size, 0.405" Min. Axial Space 10 B005XQN61G In Stock (1) $16.03
0.03" 0.41" 1" Leg Length, 0.25" Mandrel Size, 0.346" Min. Axial Space 10 B005XQLNCA In Stock (1) $15.86
0.032" 0.382" 1" Leg Length, 0.234" Mandrel Size, 0.368" Min. Axial Space 10 B005XQN4GI In Stock (1) $15.89
0.028" 0.355" 1" Leg Length, 0.218" Mandrel Size, 0.25" Min. Axial Space 10 B005XQLJRY In Stock (1) $15.31
0.025" 0.324" 1" Leg Length, 0.218" Mandrel Size, 0.288" Min. Axial Space 10 B005XQLHDA In Stock (2) $15.73
0.023" 0.271" 1" Leg Length, 0.172" Mandrel Size, 0.265" Min. Axial Space 10 B005XQLF9Q In Stock (1) $15.31
0.021" 0.271" 1" Leg Length, 0.187" Mandrel Size, 0.242" Min. Axial Space 10 B005XQK47K In Stock (1) $15.74
0.02" 0.254" 1" Leg Length, 0.156" Mandrel Size, 0.25" Min. Axial Space 10 B005XQLA8C In Stock (1) $15.31
0.017" 0.235" 0.75" Leg Length, 0.14" Mandrel Size, 0.17" Min. Axial Space 10 B005XQK06K In Stock (1) $15.31
0.018" 0.233" 0.75" Leg Length, 0.156" Mandrel Size, 0.21" Min. Axial Space 10 B005XQL6YU In Stock (1) $15.28
0.015" 0.207" 0.75" Leg Length, 0.109" Mandrel Size, 0.143" Min. Axial Space 10 B005XQL3WA In Stock (1) $15.73
0.014" 0.204" 0.75" Leg Length, 0.125" Mandrel Size, 0.133" Min. Axial Space 10 B005XQL1MC In Stock (1) $15.31
0.135" 1.755" 4" Leg Length, 1.188" Mandrel Size, 2.093" Min. Axial Space 10 B005XQN1NY In Stock (2) $62.06
0.125" 1.605" 4" Leg Length, 1.084" Mandrel Size, 1.938" Min. Axial Space 10 B005XQN030 In Stock (2) $54.68
0.115" 1.465" 4" Leg Length, 0.969" Mandrel Size, 1.553" Min. Axial Space 10 B005XQNIX2 In Stock (1) $38.52
0.105" 1.369" 3.5" Leg Length, 0.906" Mandrel Size, 1.418" Min. Axial Space 10 B005XQNHDS In Stock (1) $32.21
0.095" 1.225" 3" Leg Length, 0.813" Mandrel Size, 1.283" Min. Axial Space 10 B005XQNFNK In Stock (4) $27.64
0.085" 1.054" 2.5" Leg Length, 0.688" Mandrel Size, 1.148" Min. Axial Space 10 B005XQMPK4 In Stock (1) $23.65
0.075" 0.975" 2" Leg Length, 0.64" Mandrel Size, 1.05" Min. Axial Space 10 B005XQNCTW In Stock (1) $21.56
0.078" 0.903" 2" Leg Length, 0.578" Mandrel Size, 1.131" Min. Axial Space 10 B005XQMLVC In Stock (1) $23.81

Key Features

  • Stainless steel 302 for greater corrosion resistance than steel music wire
  • Left hand wind direction
  • Unloaded end deflection of 360 degrees
  • Straight torsion ends for a wide variety of applications
  • Meets standards ASTM A313 and AMS 5688 for quality assurance

Product Description

This helical torsion spring is left hand wound and made of stainless steel 302 for greater corrosion resistance than steel music wire. It has straight torsion ends (legs) for a wide variety of uses, and the free (unloaded) deflection angle between the ends is 360 degrees. The spring has a maximum operating temperature of 500 degrees Fahrenheit (260 degrees Celsius). This stainless steel torsion spring meets ASTM International standard ASTM A313 and Aerospace Material Specifications standard AMS 5688 for quality assurance, and is used in various applications, including hinges, levers, and switches.

Torsion springs are open-coil spiral (helical) springs that provide resistance to twisting or torque. The spring wire can be left hand wound or right hand wound to resist counterclockwise or clockwise rotations. Various end types (such as straight or hooked) and unloaded (free) angles between the ends are available to suit different uses. Torsion springs are used in a variety of applications, including hinges, counterbalances, levers, and garage doors, among others.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
