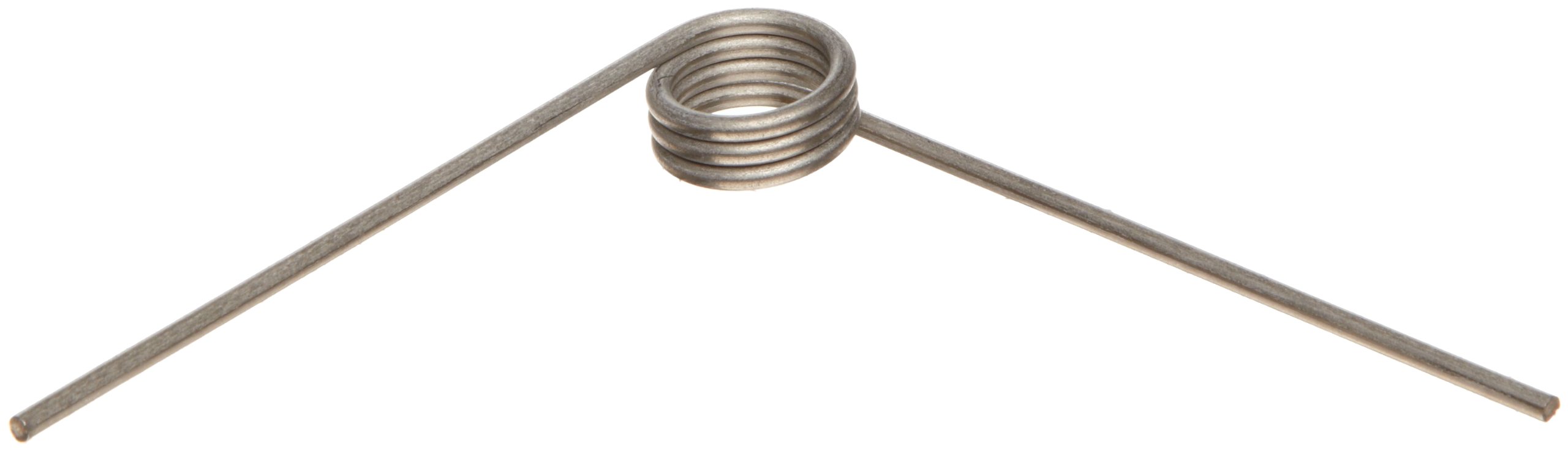

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Torsion Spring, Stainless Steel 302, Right Hand Wind, 90 Degree Deflection

Be the first to review this item

Product Specifications
Material Type
Stainless Steel 302
Deflection Angle
90  Degrees
Brand Name
Associated Spring Raymond
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 16 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Wire Size Outside Diameter Specifications Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 30 Next 10 »
0.115" 0.978" 4" Leg Length, 0.594" Mandrel Size, 0.661" Min. Axial Space 10 B005XQJ18I 2 $22.55 Buy Options
0.048" 0.375" 1.25" Leg Length, 0.218" Mandrel Size, 0.264" Min. Axial Space 10 B005XQGK7S 3 $13.16 Buy Options
0.023" 0.204" 0.75" Leg Length, 0.109" Mandrel Size, 0.109" Min. Axial Space 10 B005XQG5IW 2 $12.03 Buy Options
0.07" 0.593" 2" Leg Length, 0.359" Mandrel Size, 0.4" Min. Axial Space 10 B005XQIJRC 1 $14.75 Buy Options
0.063" 0.56" 2" Leg Length, 0.343" Mandrel Size, 0.362" Min. Axial Space 10 B005XQGRVM 1 $16.50 Buy Options
0.135" 1.102" 4" Leg Length, 0.666" Mandrel Size, 0.911" Min. Axial Space 10 B005XQGV4K 1 $36.19 Buy Options
0.059" 0.499" 2" Leg Length, 0.296" Mandrel Size, 0.34" Min. Axial Space 10 B005XQGQR2 2 $15.61 Buy Options
0.054" 0.484" 2" Leg Length, 0.296" Mandrel Size, 0.31" Min. Axial Space 10 B005XQGPWI 1 $14.64 Buy Options
0.125" 0.989" 4" Leg Length, 0.591" Mandrel Size, 0.844" Min. Axial Space 10 B005XQJRNW 1 $32.88 Buy Options
0.051" 0.408" 2" Leg Length, 0.234" Mandrel Size, 0.293" Min. Axial Space 10 B005XQGNWU 2 $14.29 Buy Options
0.105" 0.848" 3.5" Leg Length, 0.5" Mandrel Size, 0.604" Min. Axial Space 10 B005XQIZCG 2 $22.36 Buy Options
0.038" 0.386" 1.25" Leg Length, 0.234" Mandrel Size, 0.18" Min. Axial Space 10 B005XQHY7I 1 $12.82 Buy Options
0.095" 0.776" 3" Leg Length, 0.453" Mandrel Size, 0.546" Min. Axial Space 10 B005XQIVM0 2 $20.53 Buy Options
0.045" 0.357" 1.25" Leg Length, 0.203" Mandrel Size, 0.259" Min. Axial Space 10 B005XQGJBK 2 $15.57 Buy Options
0.085" 0.715" 2.5" Leg Length, 0.422" Mandrel Size, 0.489" Min. Axial Space 10 B005XQIRMO Usually ships in 2 to 4 weeks $17.41 Buy Options
0.078" 0.678" 2" Leg Length, 0.406" Mandrel Size, 0.45" Min. Axial Space 10 B005XQGTHE Usually ships in 2 to 4 weeks $56.13 Buy Options
0.035" 0.315" 1.25" Leg Length, 0.187" Mandrel Size, 0.158" Min. Axial Space 10 B005XQGERO Usually ships in 2 to 4 weeks $11.08 Buy Options
0.075" 0.635" 2" Leg Length, 0.375" Mandrel Size, 0.43" Min. Axial Space 10 B005XQINY6 Usually ships in 2 to 4 weeks $18.22 Buy Options
0.04" 0.309" 1.25" Leg Length, 0.187" Mandrel Size, 0.22" Min. Axial Space 10 B005XQGIK2 4 $13.10 Buy Options
0.032" 0.288" 1" Leg Length, 0.172" Mandrel Size, 0.152" Min. Axial Space 10 B005XQGDHK 2 $12.85 Buy Options

Key Features

  • Stainless steel 302 for greater corrosion resistance than steel music wire
  • Right hand wind direction
  • Unloaded end deflection of 90 degrees
  • Straight torsion ends for a wide variety of applications
  • Meets standards ASTM A313 and AMS 5688 for quality assurance

Product Description

This helical torsion spring is right hand wound and made of stainless steel 302 for greater corrosion resistance than steel music wire. It has straight torsion ends (legs) for a wide variety of uses, and the free (unloaded) deflection angle between the ends is 90 degrees. The spring has a maximum operating temperature of 500 degrees Fahrenheit (260 degrees Celsius). This stainless steel torsion spring meets ASTM International standard ASTM A313 and Aerospace Material Specifications standard AMS 5688 for quality assurance, and is used in various applications, including hinges, levers, and switches.

Torsion springs are open-coil spiral (helical) springs that provide resistance to twisting or torque. The spring wire can be left hand wound or right hand wound to resist counterclockwise or clockwise rotations. Various end types (such as straight or hooked) and unloaded (free) angles between the ends are available to suit different uses. Torsion springs are used in a variety of applications, including hinges, counterbalances, levers, and garage doors, among others.
