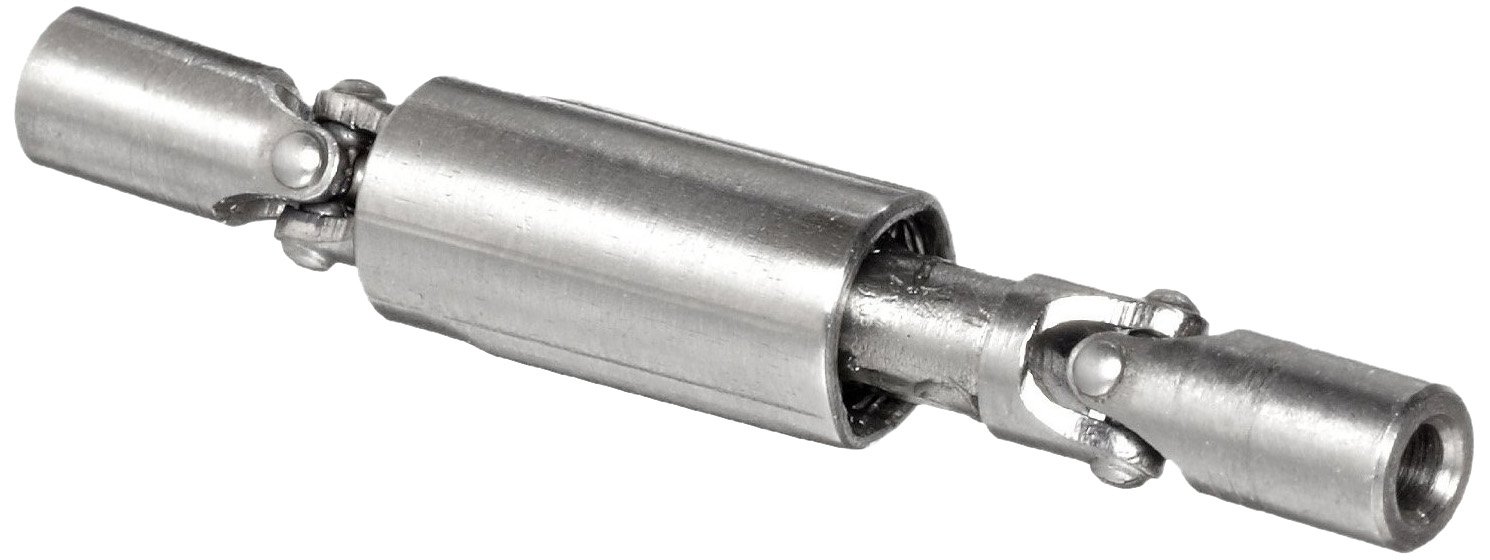

Stainless Steel Telescoping, 3/16" OD, .125" Bore Diameter, 1-1/2" Length, Max. Torque 16 Oz/In
Be the first to review this item
ASIN B000PKRIQ4
Specifications for this item
- Brand Name
- Small Parts
- Material Type
- Stainless Steel 303
- Mfr Part #
- UJX-TL2
- Number of Items
- 1
- System of Measurement
- Inch
This item is no longer available
This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)
Key Features
- Type 303 stainless steel body with Type 440 stainless steel balls
- Zero backlash
- Light weight and consequent low moment of inertia
- Sealed in solid film plus oil suspension
- Telescoping
Package Details
Shipping Weight:
0.05 pounds
Package Size:
4 x 3 x 0.5 inches
Product Description
For greater freedom of instruments and control systems, Miniature Universal Joints have zero backlash with continuous contact in either direction to provide accurate transmission in any application. Because of their light weight and consequent low moment of inertia, they also provide sensitive control. Lightweight Type 303 stainless steel body with Type 440 stainless steel balls has dual protection lubrication, with sealed in solid film plus oil suspension. Requires set screw or pin to secure to shaft. Set screws not supplied. Available in four types: Single; Double; Telescoping Double, which allows longitudinal adjustment through a preloaded Ball Spline; and Ball Spline Assembly to transmit torque and permit telescoping motion. These assemblies are useful in linear slide applications or as components for a custom telescoping universal joint.
